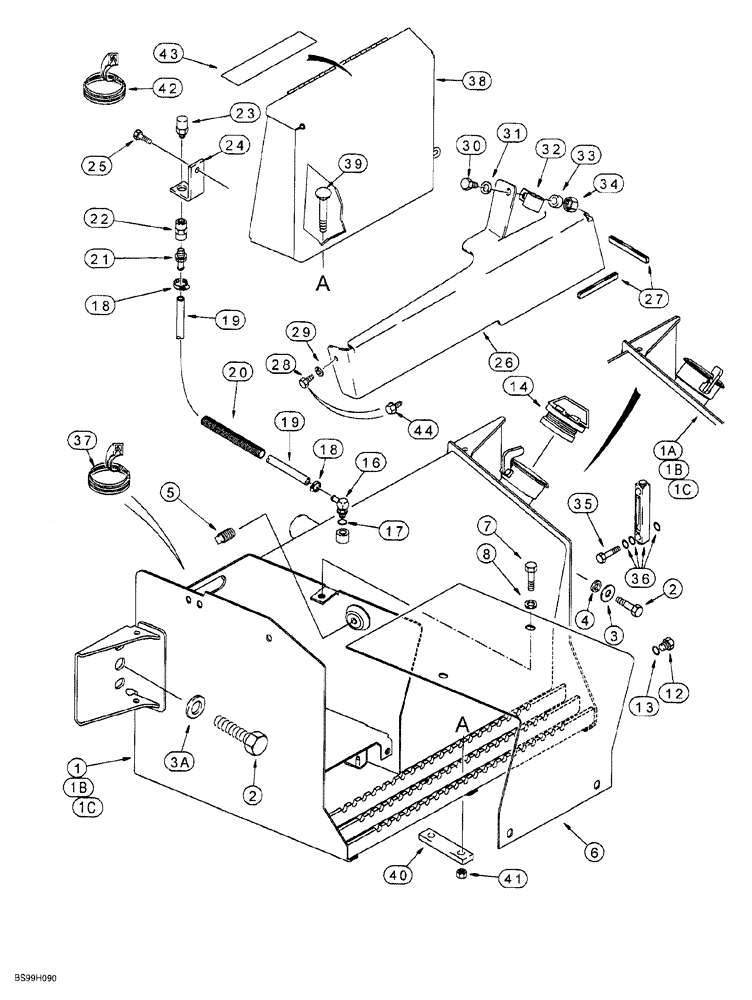

Запчасти Case 580SL (9-078) - BATTERY BOX, HYDRAULIC OIL TANK AND RIGHT HAND STEP (09) - CHASSIS/ATTACHMENTS

1

283325A3

TANK

hydraulic oil, right-hand side of chassis, no longer available, order P/N 283325A4, Includes: Ref. 1B, 1C and Ref. 12

1шт.

1a

283325A4

TANK, HYDRAULIC OIL

right-hand side of chassis, Includes: Ref. 1B, 1C and Ref. 12

1шт.

1b

230857A1

FILTER SCREEN

strainer, fill tube

1шт.

1c

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

2шт.

2

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

4шт.

3

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

flat, hardened, special, right hand side of tank

2шт.

3a

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

left hand side of tank

2шт.

4

185926A1

SPACER,21mm x 40mm x 6.6mm Th

bushing, right hand side of tank

2шт.

5

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

If used

1шт.

6

231656A1

COVER

battery, 3 mm thick

1шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

8

495-21044

WASHER,3/8"

4шт.

12

86625138

PLUG,7/18" - 14

Drain, Included in P/N's 283325A3 and 283325A4 Tank, Includes Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

138595A1

FILLER CAP,Male, Lockable

hydraulic oil tank, nonvented

1шт.

16

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

Includes: Ref. 17

1шт.

18

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

19

143218A1

HYDRAULIC HOSE

735 mm (28-15/16 inch) long, vent

1шт.

20

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

hose sleeve

1шт.

21

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

1шт.

22

217-1102

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

1шт.

23

120943A1

STRAINER ASSY.

pressure vacuum, hydraulic oil tank

1шт.

24

122603A1

SUPPORT

breather mounting

1шт.

25

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.

26

188008A3

COVER

right hand loader lift frame tubing, mounted above hydraulic oil tank, replaces P/N 188008A2

1шт.

27

191047A1

MOLDING

315 mm (12-13/32 inch) long

1шт.

Apply 75 mm (3 inch) of trim to front lower edge and 240 mm (9-7/16 inch) of trim to outside lower edge of cover.

1шт.

28

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

if used

1шт.

30

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

31

892-11010

LOCK WASHER,M10

1шт.

32

D138055

CLAMP

tube

1шт.

33

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

clamp

1шт.

35

B17576

GASKET MAKER FLUID

RTV No. 595, clear, 300 ml tube

1шт.

36

226456A1

LEVEL GAUGE

Assy, Sight, Hydraulic oil, Full/cold lettering, Aluminum; Incl. (2) Hollow Head Bolts and (4) 238-6114 O-Rings, Used with Ref. 35 sealant

1шт.

37

D40442

MOLDING

edge, 305 mm (12 inch) long, cut from P/N F42827 bulk

1шт.

38

284223A1

BOX, TOOL

1шт.

39

811-10070

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 70mm, Cl 8.8

4шт.

40

280164A1

LARGE PLATE

PLATE, LARGE

2шт.

41

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

42

D40442

MOLDING

edge, 305 mm (12 inch) long, cut from P/N F42827 bulk

1шт.

43

D55216

PAD,2" x 9"

2 x 9 inch

1шт.

44

307577A1

BOLT

1шт.

F42827

TRIM,2946.4mm L

edge, bulk, 2946 mm (116 inch) long

1шт.

29

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If used

1шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
