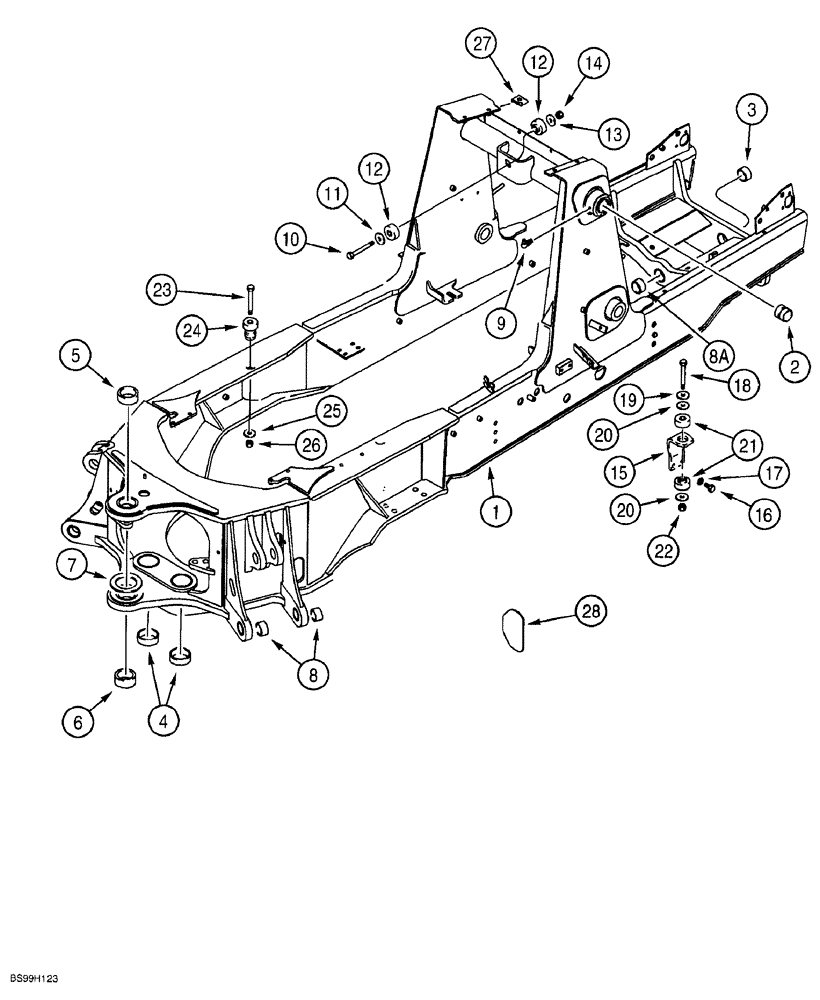

Запчасти Case 580SL (9-077A) - CHASSIS AND OPERATOR COMPARTMENT POD MOUNTS (09) - CHASSIS/ATTACHMENTS

1

333597A1

CHASSIS

loader backhoe, integral, used in production, for service order P/N 374580A1 chassis kit, which includes chassis and decals, Includes: Refs. 2-8A

1шт.

2

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

loader frame pivot, chassis

2шт.

3

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

front axle pivot, chassis

1шт.

4

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

80 mm ID, 80 x 90 x 29.3 mm, swing cylinder pivot, chassis

2шт.

5

D151069

BUSHING,70.19mm ID x 90mm OD x 32mm L

70 mm ID, upper, backhoe frame, swing tower mounting, chassis

1шт.

6

D151070

BUSHING,70.19mm ID x 90mm OD x 38mm L

70 mm ID, lower, backhoe frame, swing tower mounting, chassis

1шт.

7

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

93 x 135 x 5 mm, bearing, welds to frame, chassis

1шт.

8

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

lower, side, backhoe frame, at stabilizer leg mounting, chassis

4шт.

8a

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

50 x 60 x 25.5 mm long, chassis

1шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Loader frame pivot, chassis

2шт.

10

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

Operator compartment pod mounts

1шт.

11

495-81259

WASHER,21/32" x 2" x .238"

flat, 21/32 x 2 x 1/4 inch, operator compartment pod mounts

1шт.

12

D138565

SHOCK ABSORBER

INSULATOR mounting, frame, upper, firewall, operator compartment pod mounts

2шт.

13

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

flat, special, operator compartment pod mounts

1шт.

14

829-1416

NUT,M16, Cl 10

Operator compartment pod mounts

1шт.

15

141249A1

SUPPORT

BRACKET mounting, frame, right hand and left hand, operator compartment pod mounts

2шт.

16

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Operator compartment pod mounts

4шт.

17

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Operator Compartment Pod Mounts

4шт.

18

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

Operator compartment pod mounts

2шт.

19

495-81259

WASHER,21/32" x 2" x .238"

flat, 21/32 x 2 x 1/4 inch, operator compartment pod mounts

2шт.

20

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

flat, special, operator compartment pod mounts

4шт.

21

D138565

SHOCK ABSORBER

INSULATOR mounting, frame, lower, front, operator compartment pod mounts

4шт.

22

829-1416

NUT,M16, Cl 10

Operator compartment pod mounts

2шт.

23

180578A1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

BOLT special, operator compartment pod mounts

2шт.

24

A141451

SHOCK ABSORBER

MOUNT rubber, frame, rear, operator compartment pod mounts

2шт.

25

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

flat, special, operator compartment pod mounts

2шт.

26

829-1416

NUT,M16, Cl 10

Operator compartment pod mounts

2шт.

27

833-40310

NUT,M10, U

Operator compartment pod mounts

4шт.

28

341087A1

COVER

KIT D-Plate hole, includes (2) plates and instructions which are not serviced separately, holes are near the rear wheels, operator compartment pod mounts

1шт.
