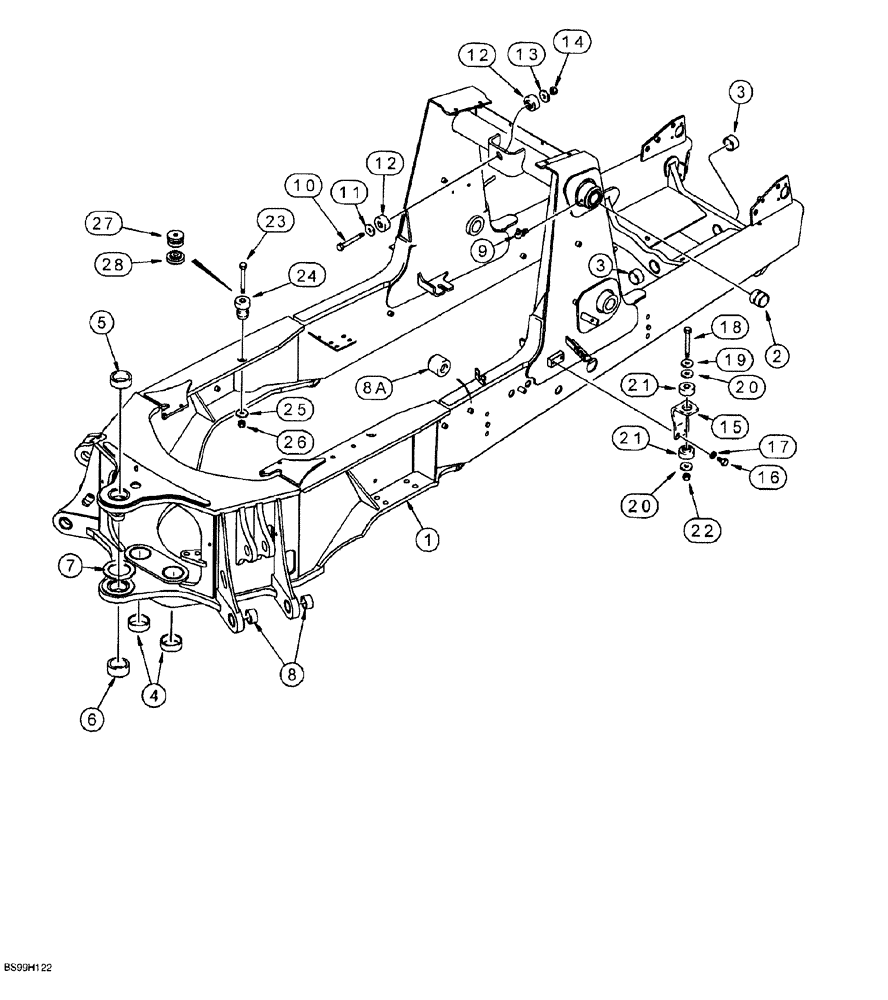

Запчасти Case 580SL (9-076) - CHASSIS AND OPERATOR COMPARTMENT POD MOUNTS (09) - CHASSIS/ATTACHMENTS

1

299395A1

CHASSIS

loader backhoe, integral, no longer available, order P/N 374580A1 chassis service kit, which, Includes: Refs. 2-8A

1шт.

2

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

loader frame pivot, chassis

2шт.

3

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

front axle pivot, chassis

2шт.

4

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

80 mm ID, 80 x 90 x 29.3 mm, swing cylinder pivot, replaces P/N 192559A1 80 ID x 90 x 30.8 mm bushing used on some models, chassis

2шт.

5

D151069

BUSHING,70.19mm ID x 90mm OD x 32mm L

70 mm ID, upper, backhoe frame, swing tower mounting, chassis

1шт.

6

D151070

BUSHING,70.19mm ID x 90mm OD x 38mm L

70 mm ID, lower, backhoe frame, swing tower mounting, chassis

1шт.

7

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

93 x 135 x 5 mm, bearing, welds to frame, chassis

1шт.

8

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

lower, side, backhoe frame, at stabilizer leg mounting, chassis

4шт.

8a

185356A1

BOSS

10 mm, welded to chassis frame, chassis

7шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Loader frame pivot, chassis

2шт.

10

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

Operator compartment pod mounts

1шт.

11

495-81259

WASHER,21/32" x 2" x .238"

flat, 21/32 x 2 x 1/4 inch, operator compartment pod mounts

1шт.

12

D138565

SHOCK ABSORBER

INSULATOR mounting, frame, upper, firewall, operator compartment pod mounts

2шт.

13

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

flat, special, operator compartment pod mounts

1шт.

14

829-1416

NUT,M16, Cl 10

Operator compartment pod mounts

1шт.

15

141249A1

SUPPORT

BRACKET mounting, frame, right hand and left hand, operator compartment pod mounts

2шт.

16

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Operator compartment pod mounts

4шт.

17

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Operator Compartment Pod Mounts

4шт.

18

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

Operator compartment pod mounts

2шт.

19

495-81259

WASHER,21/32" x 2" x .238"

flat, 21/32 x 2 x 1/4 inch, operator compartment pod mounts

2шт.

20

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

flat, special, operator compartment pod mounts

4шт.

21

D138565

SHOCK ABSORBER

INSULATOR mounting, frame, lower, front, operator compartment pod mounts

4шт.

22

829-1416

NUT,M16, Cl 10

Operator compartment pod mounts

2шт.

23

180578A1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

BOLT special, operator compartment pod mounts

2шт.

24

A141451

SHOCK ABSORBER

MOUNT rubber, frame, rear, if used, may be replaced by Ref. 27 and 28 on some models, operator compartment pod mounts

2шт.

25

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

flat, special, operator compartment pod mounts

2шт.

26

829-1416

NUT,M16, Cl 10

Operator compartment pod mounts

2шт.

27

344777A1

MOUNTING PARTS

upper, if used, operator compartment pod mounts

2шт.

28

R49921

RUBBER MOUNTING

INSULATOR, lower, if used, operator compartment pod mounts

2шт.
