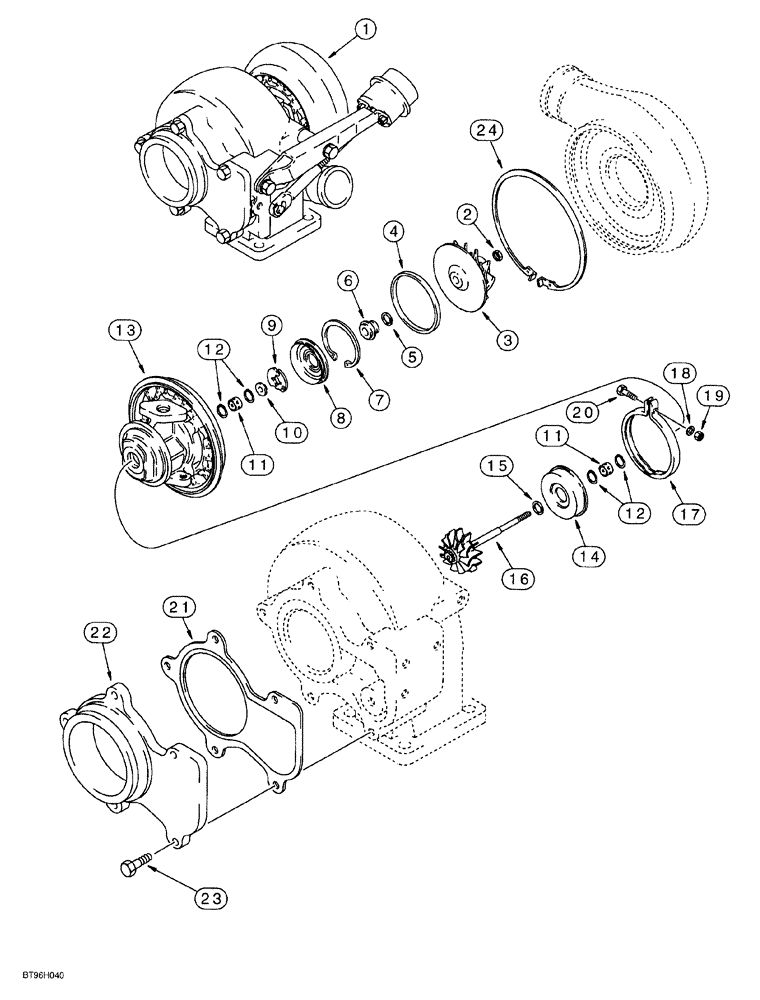

Запчасти Case 580SL (2-024) - TURBOCHARGER ASSEMBLY, 4T-390 EMISSIONS CERTIFIED ENGINE (IF USED) (02) - ENGINE

J802798

TURBOCHARGER

KIT large frame, includes new turbocharger assembly, (1) See Ref. 1 - 11 on figure 2-26, Includes: Ref. 1-16

1шт.

JR802798

REMAN-TURBOCHARGER

KIT turbocharger, engine, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC537562

CORE-TURBOCHARGER

Return Part Number, use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

1

J580234

HOUSING ASSY.

center, turbocharger

1шт.

2

NSS

NOT SOLD SEPARAT

NUT hex, lock

1шт.

Part of overhaul kit, P/N J557205

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL plate

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL slit ring

1шт.

Part of overhaul kit, P/N J557205

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING snap

1шт.

Part of overhaul kit, P/N J557205

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

Part of overhaul kit, P/N J557205

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING turbocharger thrust

1шт.

Part of overhaul kit, P/N J557205

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING turbocharger

2шт.

Part of overhaul kit, P/N J557205

1шт.

12

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

Part of overhaul kit, P/N J557205

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING turbo bearing

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD turbo heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL split ring

1шт.

Part of overhaul kit, P/N J557205

1шт.

15a

NSS

NOT SOLD SEPARAT

SEAL oil, not shown

1шт.

Part of overhaul kit, P/N J557205

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY, with shaft

1шт.

17

J531670

CLIP

CLAMP adjustable

1шт.

18

J535971

WASHER

flat, special

1шт.

19

J531582

NUT

hex

1шт.

Part of overhaul kit, P/N J557205

1шт.

20

J531598

BOLT,Hex, M6 x 1 x 35, Stainless

BOLT hex

1шт.

Part of overhaul kit, P/N J557205

1шт.

21

J535001

GASKET,0.25mm Thk

adapter

1шт.

22

J527759

ADAPTER

connection

1шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

24

J535800

RING, SNAP

RING SNAP

1шт.

J575205

PACKAGE, REPAIR

KIT overhaul, turbocharger, includes Refs. 2, 5, 7, 8, 9, 11, 12, 15, 15A, 19 and 20

1шт.
