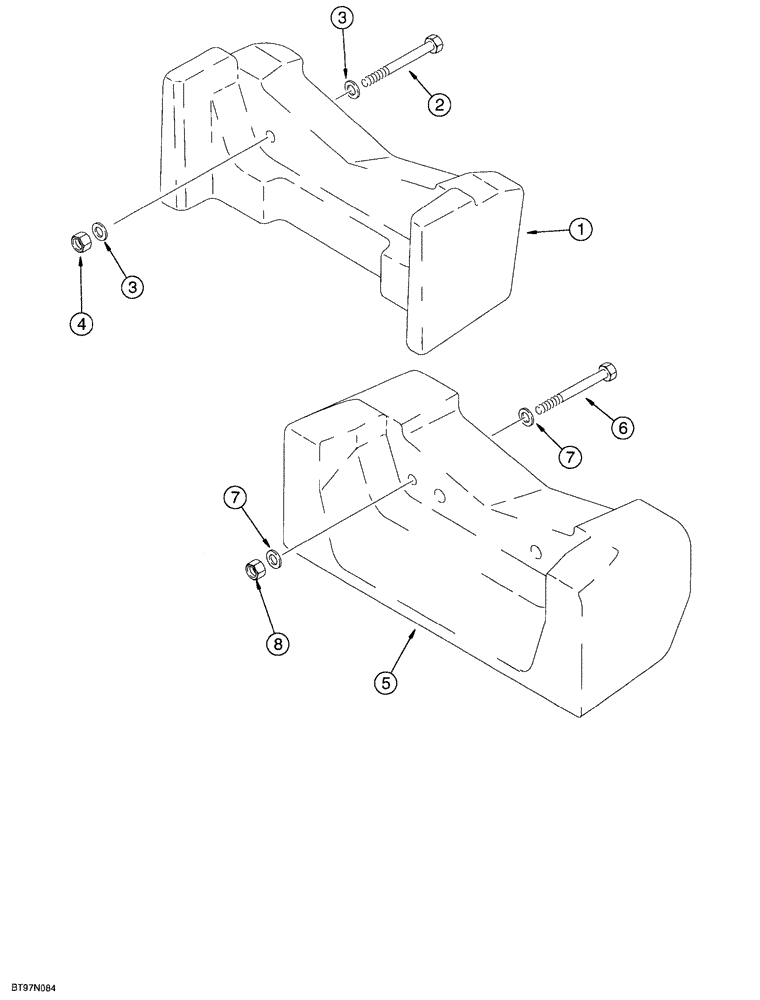

Запчасти Case 580SL (9-074) - FRONT COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

360867A1

COUNTERWEIGHT,Front, 440 Lb

COUNTER front, 200 kg (441 Ibs), replaces P/N 194520A1, if used

1шт.

2

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

4шт.

4

829-1420

NUT,M20, Cl 10

2шт.

5

230513A1

BALANCER

COUNTERWEIGHT front, 408 kg (900 Ibs), if used

1шт.

6

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

4шт.

8

829-1420

NUT,M20, Cl 10

2шт.
