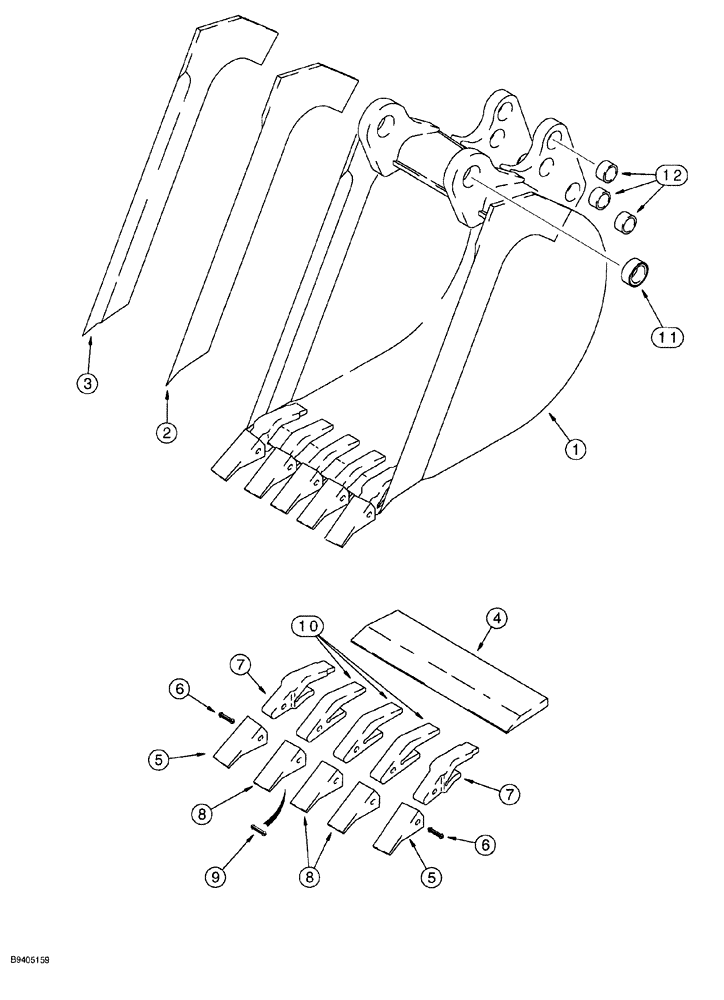

Запчасти Case 580SL (9-070) - UNIVERSAL BACKHOE BUCKET, 610 MM (24 INCH) WIDE HIGH CAPACITY TRENCHING BUCKET (09) - CHASSIS/ATTACHMENTS

1

141232A1

BUCKET

ASSEMBLY, high capacity trenching, with 5 teeth, order from Machinery Price List, 610 mm (24 inch) wide, Includes: Refs. 2-12

1шт.

2

141234A1

EDGE, CUTTING

right-hand side, bucket

1шт.

3

141233A1

EDGE, CUTTING

left-hand side, bucket

1шт.

4

D142012

EDGE, CUTTING,597mm W x 165.1mm L

center, 610 mm (24 inch) bucket

1шт.

D139851

BUCKET TOOTH

Assy, outer corners, Includes Refs. 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

Outer corners

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Flex, Outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

ASSEMBLY, center, Includes Ref 8-10

3шт.

8

D51750

BUCKET TOOTH POINT

Center

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Flex, Center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch

6шт.
