(9-066[1]) - UNIVERSAL BACKHOE BUCKETS, 762 MM (30") WIDE TRENCHING BUCKET AND TEETH, HEAVY DUTY

Запчасти Case 580SL (9-066[1]) - UNIVERSAL BACKHOE BUCKETS, 762 MM (30") WIDE TRENCHING BUCKET AND TEETH, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

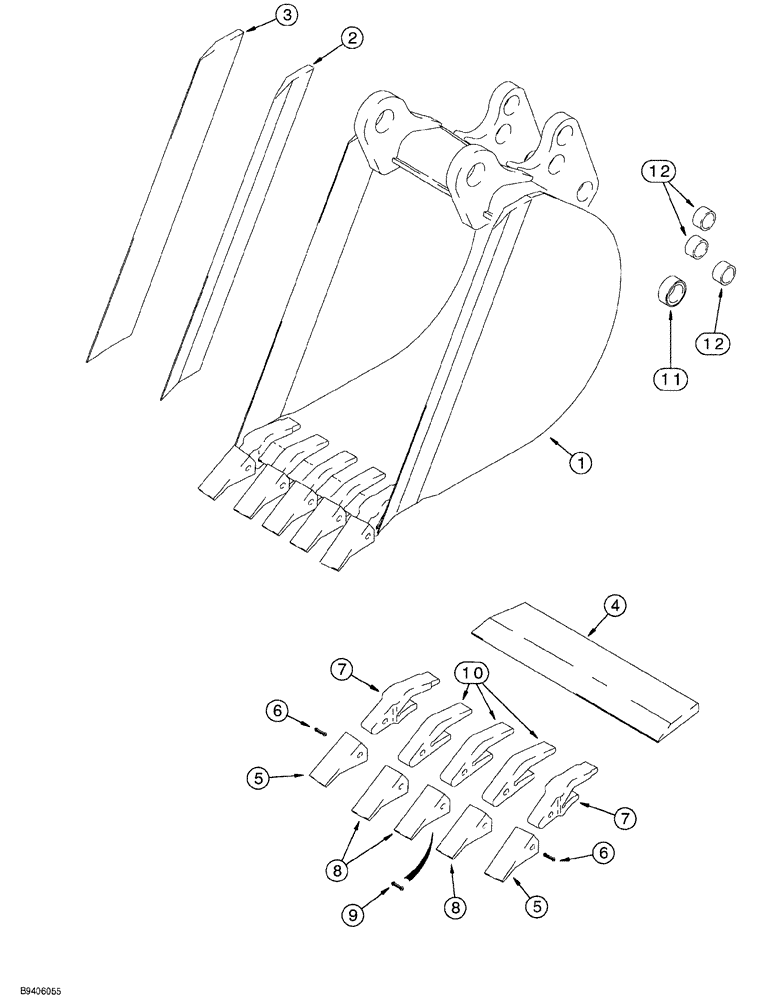

Схема запчастей Case 580SL - (9-066[1]) - UNIVERSAL BACKHOE BUCKETS, 762 MM (30") WIDE TRENCHING BUCKET AND TEETH, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS
5
11
1
12
9
6
8
10
6
12
8
4
7
2
5
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D150364

BUCKET

ASSEMBLY, heavy duty trenching, with 5 teeth, order from Machinery Price List, 762 mm (30 inch) wide trenching bucket & teeth, heavy duty, Includes: Refs. 2-12

1шт.

2

D146421

EDGE, CUTTING

right hand side, bucket

1шт.

3

D146420

EDGE, CUTTING

left hand side, bucket

1шт.

4

D145061

EDGE, CUTTING

center, 762 mm (30 inch) bucket

1шт.

D139851

BUCKET TOOTH

Assy, outer corners, Includes Refs. 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

Outer corners

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Flex, Outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

ASSEMBLY, center, Includes Ref 8-10

3шт.

8

D51750

BUCKET TOOTH POINT

Center

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Flex, Center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch

6шт.
