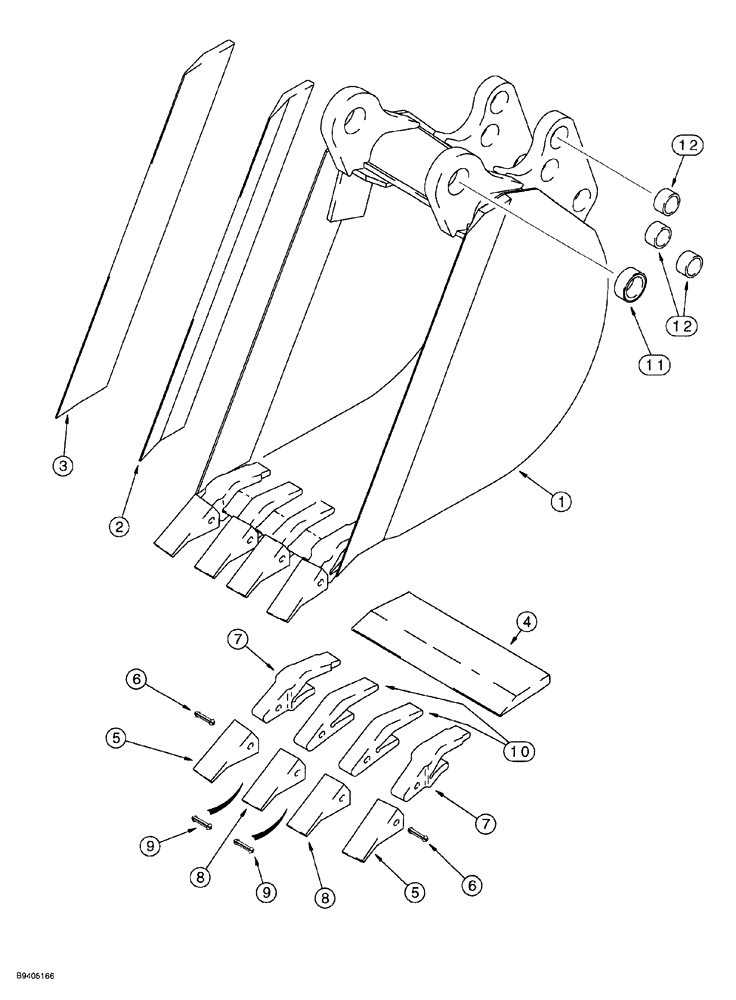

Запчасти Case 580SL (9-064) - UNIVERSAL BACKHOE BUCKETS, 406 MM (16") WIDE TRENCHING BUCKET & TEETH, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D147247

BUCKET

ASSEMBLY, heavy duty trenching, with 3 teeth, order from Machinery Price List, 406 mm (16 inch) wide, Includes: Refs. 2-12

1шт.

2

D146421

EDGE, CUTTING

right hand side, bucket

1шт.

3

D146420

EDGE, CUTTING

left hand side, bucket

1шт.

4

D147249

EDGE

cutting, center, 406 mm (16 inch) bucket

1шт.

D139851

BUCKET TOOTH

Assy, outer corners, Includes Refs. 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

Outer corners

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Flex, Outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

ASSEMBLY, center (order Refs. 8-10), Includes Ref 8-10

1шт.

8

D51750

BUCKET TOOTH POINT

Center

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Flex, Center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch

6шт.
