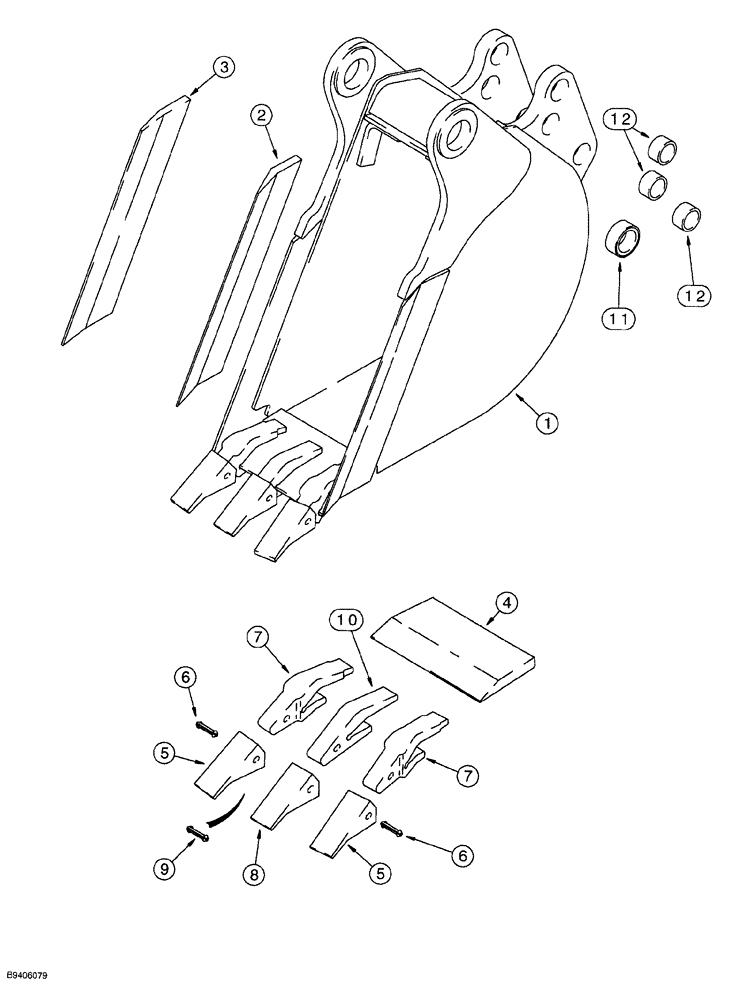

Запчасти Case 580SL (9-062) - UNIVERSAL BACKHOE BUCKET, 305 MM (12 INCH) WIDE TRENCHING BUCKET & TEETH, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D147418

BUCKET

ASSEMBLY, heavy duty trenching, with 3 teeth, order from Machinery Price List, 305 mm (12 inch) wide, Includes: Refs. 2-12

1шт.

See Ref. 32 on Fig. 9-56 for pin used on 12 inch Universal Bucket

1шт.

2

D147411

EDGE, CUTTING

right hand side, bucket

1шт.

3

D147410

EDGE

cutting, left hand side, bucket

1шт.

4

D147409

EDGE, CUTTING

center, 305 mm (12 inch) bucket

1шт.

D139851

BUCKET TOOTH

Assy, outer corners, Includes Refs. 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

Outer corners

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Flex, Outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

ASSEMBLY, center, Includes Ref 8-10

1шт.

8

D51750

BUCKET TOOTH POINT

Center

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Flex, Center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch

6шт.
