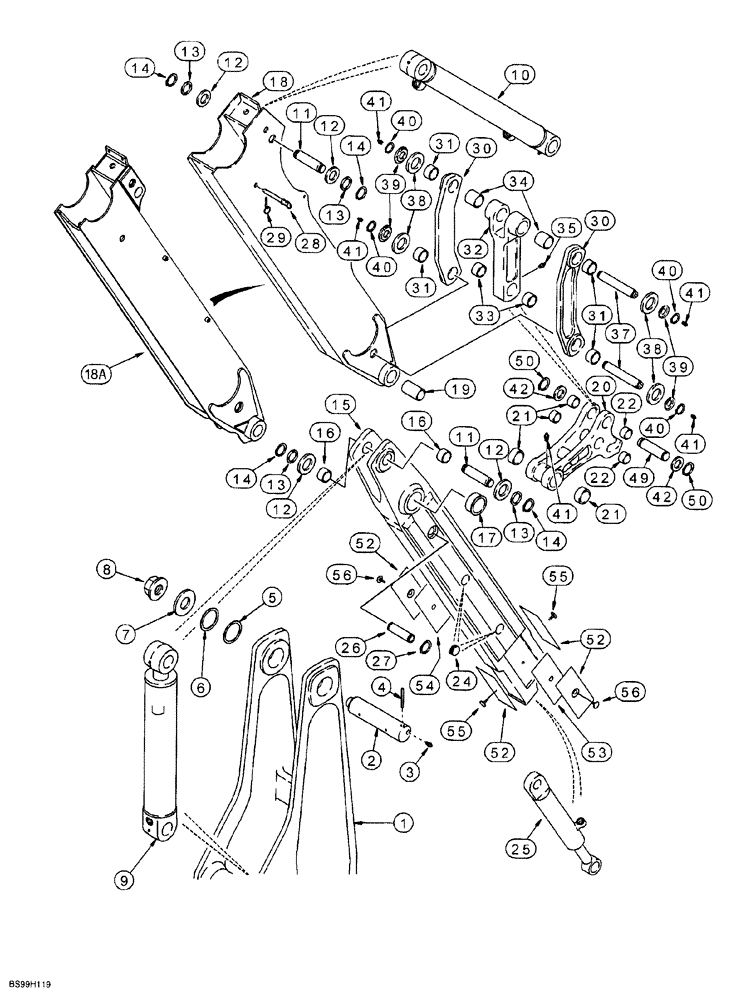

Запчасти Case 580SL (9-058) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BOOM backhoe, see Fig. 9-48 for boom and bushings

1шт.

2

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-dipper

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

4

300013A1

SPLIT PIN/SAFETY PIN

center groove, 1/2 x 3-1/4 inch, hardened

1шт.

5

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD), Boom to dipper

2шт.

6

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD)

1шт.

7

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

flat, hardened, special

1шт.

8

181042A1

FLANGE NUT

hex flange, special, 1-3/4 inch NF

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY, 5 (127) ID x 23 inch (583 mm) stroke, dipper, parts list Fig. 8-138

1шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY, 80 (3-1/2) ID x 872 mm (34-5/16 inch) stroke, bucket, parts list Fig. 8-140

1шт.

11

D141666

PIN,50mm OD x 199mm L

dipper and bucket, Serial Range: cylinder-dippers

2шт.

12

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

1шт.

13

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

4шт.

14

103-16175

SNAP RING,#175, Ext

Pin

4шт.

140453A1

DIPPER

ASSEMBLY, extension, inner, uses wear plates (Ref. 52 - 54) with one mounting hole

1шт.

15

NSS

NOT SOLD SEPARAT

DIPPER inner

1шт.

16

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm long, dipper cylinder rod end pivot

2шт.

17

D150121

BUSHING,70.19mm ID x 94mm OD x 40mm L

70 ID x 36 mm long, to dipper pivot

2шт.

18

102649A1

BOOM

HOUSING dipper, outer, no longer available, order P/N 362951A1

1шт.

18a

362951A1

DIPPER

HOUSING, outer

1шт.

19

307186A1

BUSHING,44.6mm ID x 57.15mm OD x 104mm L

104 mm long, bucket coupler pivot

2шт.

134437A1

COUPLING

ASSEMBLY, bucket, used with Ref. 30 and 32 links, if used, Includes: Refs. 20-22

1шт.

See Fig. 9-56, Ref. 37-44 for optional coupler and bucket links

1шт.

20

NSS

NOT SOLD SEPARAT

COUPLER backhoe bucket

1шт.

21

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

30 mm long, special, at dipper

2шт.

22

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

28 mm long, at bucket link

4шт.

24

D133865

PLUG

plastic

4шт.

25

1340969C2

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

76 (3) ID x 1068 mm (42 inch) stroke, Dipper extension, Parts list Fig. 8-142

1шт.

25

1340969C2R

REMAN-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

25

1340969C2C

CORE-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

26

300588A1

PIN,40mm OD x 136mm L

Dipper extension cylinder closed end

1шт.

27

800-44040

SNAP RING,M40, Ext

heavy external retaining, No. 40, pin retaining

2шт.

28

D140247

LOCK PIN,25.4mm OD x 232.6mm L

Used at dipper extension cylinder closed end when transporting only, Used with Ref. 29

1шт.

29

A33509

PIN,11.18mm OD

lock, 7/16 inch diameter

1шт.

30

D150608

PITMAN

LINK, 33 mm wide bushing, bucket guide, used with P/N 134437A1 coupler, if used, Includes: Ref. 31

2шт.

See Fig. 9-56, Ref. 37-44 for optional coupler and bucket links

1шт.

31

D150122

BUSHING

50 x 60 x 33 mm

2шт.

32

D150080

PITMAN

LINK bucket dump, with two bushings at forked end, used with P/N 134437A1 coupler, if used, Includes: Refs. 33 & 34

1шт.

See Fig. 9-56, Ref. 37-44 for optional coupler and bucket links

1шт.

33

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

28 mm long

2шт.

34

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

54 mm (2-1/8 inch) long

2шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

37

D141142

PIN,50mm OD x 306mm L

306 mm long, Bucket cylinder rod end to links and, Serial Range: links-dipper

2шт.

38

495-81282

WASHER,2 1/16" x 3" x .109"

4шт.

39

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1-13/16x3x1/8 inch

4шт.

40

103-16175

SNAP RING,#175, Ext

Pin

4шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

5шт.

42

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

2шт.

48

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

BOLT hex serrated flange, 3/8 NC x 1/2 inch

4шт.

49

D146288

PIN,44.45mm OD x 167mm L

Dump Link to Bucket Coupler

1шт.

50

103-16175

SNAP RING,#175, Ext

2шт.

52

132716A1

BLOCK

PLATE wear, outer

4шт.

53

132844A1

SHIM,19mm ID x 142mm OD x 0.8mm Thk

0.8 mm thick, wear plate

1шт.

54

132842A1

SHIM,19mm ID x 142mm OD x 1.6mm Thk

1.6 mm thick, wear plate

1шт.

55

183443A1

PIN,6.6mm OD x 38.5mm L

Pine tree, long

2шт.

56

183509A1

PIN,8.3mm OD x 22mm L

Pine tree, short

2шт.
