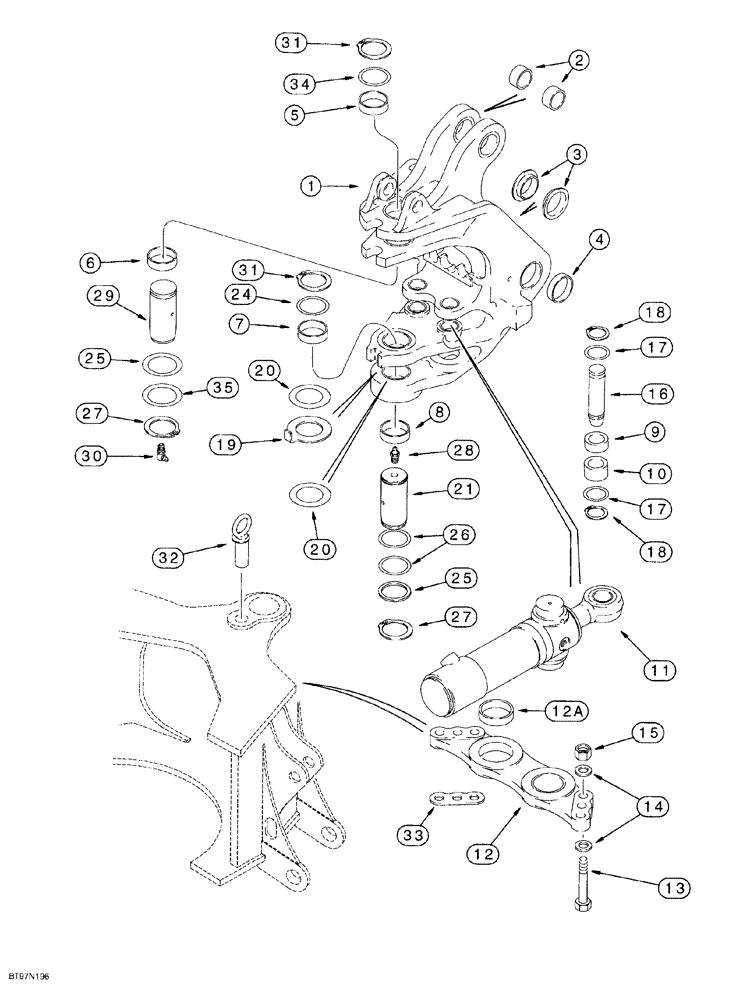

Запчасти Case 580SL (9-046) - BACKHOE SWING CYLINDERS AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

326805A1

TOWER

TOWER ASSEMBLY, backhoe swing, replaces P/N 249867A1, Includes: Refs. 2-10

1шт.

2

191017A1

BUSHING,60.2mm ID x 70mm OD x 36mm L

boom cylinder pivot

2шт.

3

121778A1

BUSHING,70.19mm ID x 94mm OD x 30mm L

inner, boom pivot

2шт.

4

D135741

BUSHING,70.19mm ID x 90mm OD x 24mm L

outer, boom pivot

2шт.

5

D135557

BUSHING,70.5mm ID x 86mm OD x 30mm L

upper, swing tower pivot

1шт.

6

D135559

BUSHING,70.19mm ID x 86mm OD x 28mm L

upper, tower pivot

1шт.

7

D151073

BUSHING,70.19mm ID x 86mm OD x 34mm L

tower pivot

1шт.

8

D151074

BUSHING,70.19mm ID x 86mm OD x 28mm L

70 x 86 x 28 mm long, lower

1шт.

9

135249A1

BUSHING,50.96mm ID x 63.5mm OD x 28.6mm L

upper, swing cylinder pivot, 28.6 mm long

2шт.

10

135248A1

BUSHING,50.94mm ID x 63.5mm OD x 38.1mm L

lower, swing cylinder pivot, 38.1 mm long

2шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY, 102 (4) ID x 292 mm (11-1/2 inch) stroke, swing, parts list Fig. 8-134

2шт.

12

198976A1

PLATE

Bracket, Swing cylinder to frame, Incl Ref 12A

1шт.

12a

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

80 mm ID, cylinder pivot

2шт.

13

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

6шт.

14

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

12шт.

15

829-1420

NUT,M20, Cl 10

6шт.

16

135247A1

PIN

swing cylinder rod end to swing tower

2шт.

17

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

4шт.

18

103-16200

SNAP RING,#200, Ext

4шт.

19

243084A1

LOCK WASHER,72mm ID x 146mm OD x 5mm Thk

bearing, special, 5 mm thick, swing tower

1шт.

20

134167A1

SHIM,72mm ID x 140mm OD x 2.05mm Thk

2.05 mm (.08 inch) thick

1шт.

21

D151065

PIN,70mm OD x 152mm L

Lower, swing tower to frame, grease fitting mounts in top of pin

1шт.

24

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD), Upper

1шт.

25

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

67 x 83 x 2.0 mm

2шт.

26

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD)

1шт.

27

800-40065

SNAP RING,M65, Ext

external retaining, No. 65, pin retaining, lower

2шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

29

292385A1

PIN,70mm OD x 128.5mm L

Swing tower to frame, Upper

1шт.

30

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

31

800-40070

SNAP RING,M70 Ext

external retaining, No. 70, pin retaining

2шт.

32

D149239

PIN

swing stop, without snap ring

1шт.

33

197718A1

SHIM

swing cylinder spacer, use as required between bracket and ear of main frame, shims may be required on one end or both ends of bracket, if used

1шт.

34

293636A1

WASHER,71mm ID x 83mm OD x 3.05mm Thk

flat, upper

1шт.

35

D144423

WASHER,66.7mm ID x 86mm OD x 3.4mm Thk

2-5/8 x 3-3/8 x 1/8 inch, used as a shim

1шт.
