(9-036) - BACKHOE CONTROLS WITH HAND SWING, LOWER CONTROL LEVERS WITH NON EXTENDABLE DIPPER

Запчасти Case 580SL (9-036) - BACKHOE CONTROLS WITH HAND SWING, LOWER CONTROL LEVERS WITH NON EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

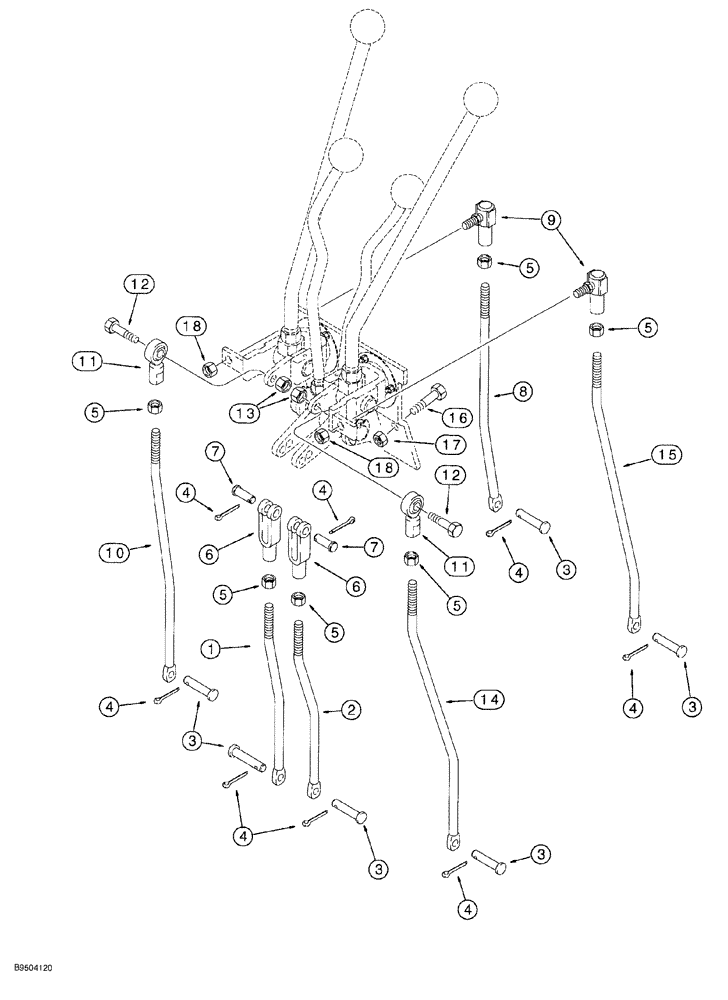

Схема запчастей Case 580SL - (9-036) - BACKHOE CONTROLS WITH HAND SWING, LOWER CONTROL LEVERS WITH NON EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS
3
14
3
4
3
9
12
6
12
4
5
4
3
17
5
3
4
16
6
11
13
18
5
5
18
5
2
5
4
1
10
7
7
4
11
15
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

185981A1

THREADED ROD

stabilizer, right hand

1шт.

2

185982A1

THREADED ROD

stabilizer, lef hand

1шт.

3

D149287

PIN,7.9mm OD x 26.72mm L

Clevis, Special, 5/16 x 15/16 inch, hardened, Serial Range: rods-valve

6шт.

4

432-612

COTTER PIN,3/32" x 3/4"

8шт.

5

425-116

NUT,3/8" - 24, Gr 5

Hex

6шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

7

D149288

PIN,8.33mm OD x 30.66mm L

Clevis, Special

2шт.

8

185977A1

THREADED ROD

bucket control

1шт.

9

D149295

BALL JOINT,3/8"

control rod

2шт.

10

185978A1

THREADED ROD

dipper control

1шт.

11

D136773

BALL JOINT

JOINT, 3/8 inch NF, control rods

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

185979A1

THREADED ROD

boom control

1шт.

15

185980A1

THREADED ROD

swing control

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

18

231-2446

NUT,3/8"-24, GB

hex, self locking, 3/8 inch NF

2шт.
