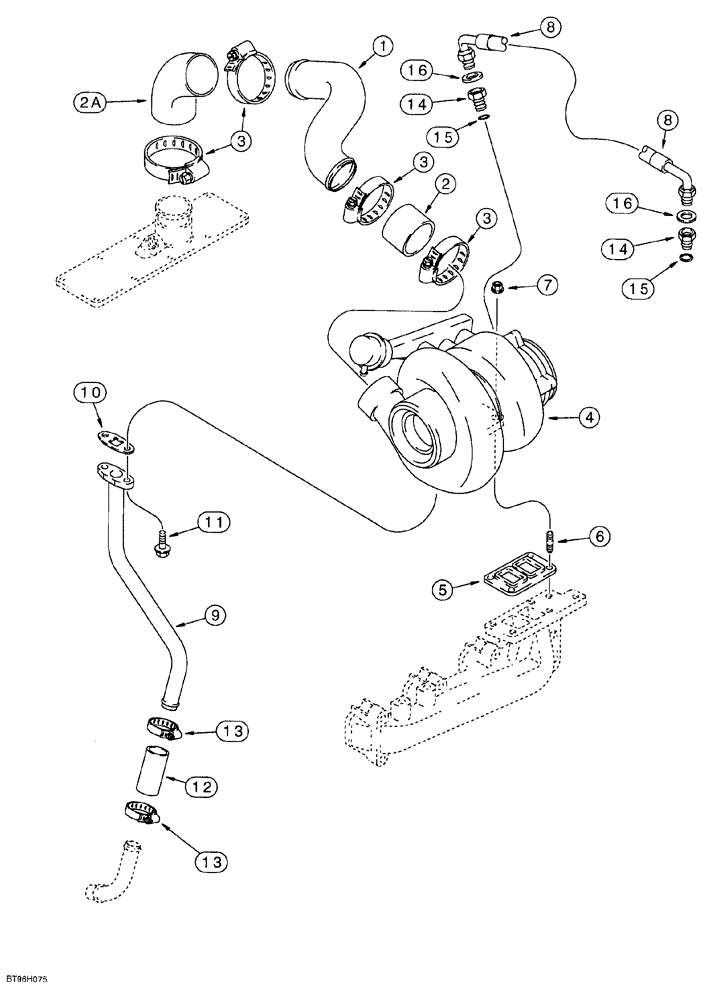

Запчасти Case 580SL (2-022) - TURBOCHARGER SYSTEM, 4T-390 EMISSIONS CERTIFIED ENGINE (IF USED) (02) - ENGINE

1

J931784

TUBE,50.8 mm OD x 255.98 mm L

crossover

1шт.

2

J916438

INTAKE AIR HOSE

80 mm (3-1/8 inch) long, air intake, replaces P/N J931804

1шт.

2a

CASJ933026

LARGE HOSE

HOSE,LARGE HOSE, 76 mm (3 inch) long, air intake

1шт.

3

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY, engine, new, see figure 2-024 for correct assembly and component parts

1шт.

5

J919369

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

6

J818823

STUD

turbocharger mounting

1шт.

7

J818824

FLANGE NUT

hex flange, special, 10 mm - 1.5, stud

4шт.

8

J913759

HOSE

Turbocharger Oil Supply

1шт.

9

J934064

TUBE,22.22 mm OD x 393, 131 mm L

turbocharger oil drain, replaces P/N J903740 tube

1шт.

10

J931350

GASKET

turbo oil drain tube

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

12

J931970

HOSE,22.22 mm ID x 76.20 mm

Turbocharger Oil Drain

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

2шт.

14

J919687

HYD CONNECTOR

ADAPTER female hex, special (1) used to connect turbocharger oil supply hose to turbocharger, Includes: Ref. 15

2шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
