Запчасти Case 580SL (9-034) - BACKHOE CONTROLS WITH HAND SWING, UPPER CONTROL LEVERS WITH NON EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

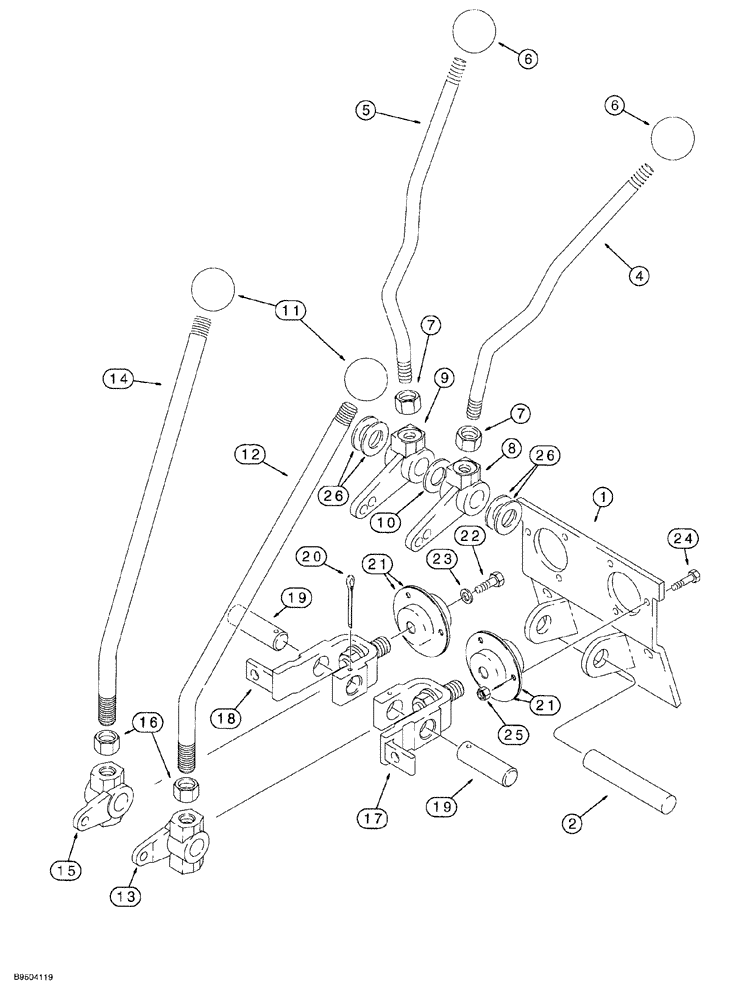

Схема запчастей Case 580SL - (9-034) - BACKHOE CONTROLS WITH HAND SWING, UPPER CONTROL LEVERS WITH NON EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS
13
1
19
7
22
9
5
24
18
6
20
23
19
16
8
11
17
4
26
21
25
6
26
7
21
15
14
10
2
12

Артикул

Название

Примечание

Количество

1

108864A1

SUPPORT

PLATE mounting, bearing and bellcrank

1шт.

2

D148947

PIN,19.09mm OD x 179mm L

SHAFT pivot, stabilizer lever

1шт.

4

109131A1

LEVER

stabilizer, left hand

1шт.

5

109132A1

LEVER

stabilizer, right hand

1шт.

6

D59912

KNOB

lever, stabilizer levers

2шт.

7

425-118

NUT,1/2"-20, G5

2шт.

8

108924A1

LEVER

BELLCRANK left hand stabilizer lever

1шт.

9

108923A1

LEVER

BELLCRANK right hand stabilizer lever

1шт.

10

495-11081

WASHER,3/4", SAE

1шт.

11

D39118

KNOB

control lever

2шт.

12

125113A1

LEVER

control, boom and swing

1шт.

13

106989A1

LEVER

BELLCRANK left hand boom and swing lever

1шт.

14

125113A1

LEVER

control, bucket and dipper

1шт.

15

106990A1

LEVER

BELLCRANK right hand bucket and dipper lever

1шт.

16

425-1110

NUT,5/8"-18, G5

2шт.

17

178006A1

LEVER

BELLCRANK boom and swing control lever

1шт.

18

178004A1

LEVER

BELLCRANK bucket and dipper control lever

1шт.

19

102765A1

PIN,19.5mm OD x 63mm L

Bellcrank

2шт.

20

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

21

112380A1

BEARING ASSY

Retainer

4шт.

22

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

23

396-41028

WASHER,.281" x 7/8" x .098", HDN

2шт.

24

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads

6шт.

25

829-1406

NUT,Hex, M6 x 1, Cl 10.9

6шт.

26

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

special, hardened

1шт.

Выбрано товаров: 25
