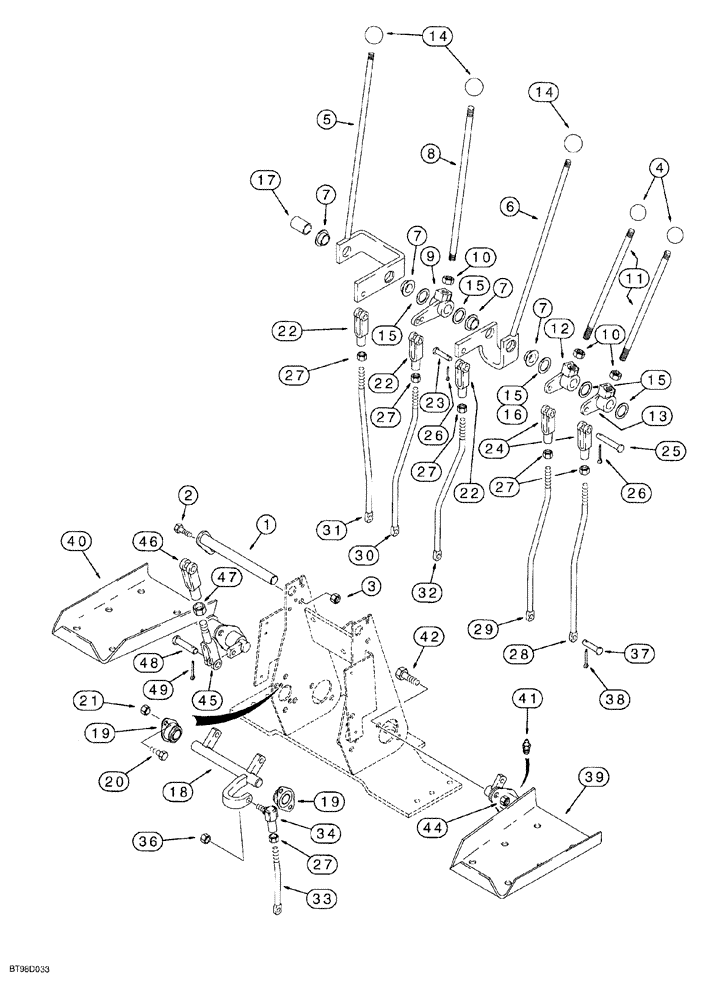

Запчасти Case 580SL (9-028) - BACKHOE CONTROLS WITH FOOT SWING, WITH NON EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

129015A1

SHAFT

pivot, control levers

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

3

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

4

D59912

KNOB

lever, stabilizer control levers

2шт.

5

136267A1

LEVER

control, boom

1шт.

6

136269A1

LEVER

control, bucket, Includes: Ref. 7

1шт.

7

D148992

BUSHING,19.15mm ID x 23.83mm OD x 10.6mm L

Control lever, used with P/N's 136267A1 and 136269A1

2шт.

8

136263A1

ROD,12.7mm OD x 407mm L

LEVER control, dipper

1шт.

9

D150397

CRANK LEVER

BELL dipper control

1шт.

10

425-118

NUT,1/2"-20, G5

3шт.

11

136261A1

THREADED ROD,1/2"-20 UNF x 260mm L

LEVER control, stabilizer

2шт.

12

D150435

CRANK LEVER

BELL right hand stabilizer control

1шт.

13

D150434

CRANK LEVER

BELL left hand stabilizer control

1шт.

14

L54563

KNOB

control lever, boom, dipper and bucket control levers

3шт.

15

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

special, hardened, flat, used as a shim between control levers

1шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch, 3/4 inch, hardened, may be used in place of Ref. 15

1шт.

17

D150486

SPACER,19.76mm ID x 25.4mm OD x 35mm L

control lever, not used on models with extendable dipper

1шт.

18

D148994

SHAFT,182.10mm L

swing control

1шт.

19

D148993

BEARING,19.06mm ID

self aligning, shaft

2шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

22

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3шт.

23

D149288

PIN,8.33mm OD x 30.66mm L

Clevis, Special

3шт.

24

D150493

END

3/8 inch, stabilizer control rod, special

2шт.

25

427-6088

CLEVIS PIN,3/8" x 3/4"

clevis, 3/8 x 7/8 inch, hardened

2шт.

26

432-612

COTTER PIN,3/32" x 3/4"

5шт.

27

425-156

JAM NUT,Jam, 3/8"-24, G5

6шт.

28

189297A1

ROD

left hand stabilizer control

1шт.

29

189296A1

ROD

right hand stabilizer control

1шт.

30

189295A1

ROD

dipper control

1шт.

31

189298A1

ROD

boom control

1шт.

32

189294A1

ROD

bucket control

1шт.

33

189299A1

ROD

swing control

1шт.

34

D149295

BALL JOINT,3/8"

swing control, Serial Range: rod-shaft

1шт.

36

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

37

D149287

PIN,7.9mm OD x 26.72mm L

Clevis, Special, 5/16 x 15/16 inch, hardened, Serial Range: rods-valve

6шт.

38

432-612

COTTER PIN,3/32" x 3/4"

6шт.

39

136271A1

PEDAL

left hand swing

1шт.

40

136270A1

PEDAL

right hand swing

1шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

42

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

44

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

45

D150503

END

ROD, with clevis, swing pedal to cross shaft

2шт.

46

D149262

CLEVIS,3/8-24"

special, swing pedal rod

2шт.

47

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

48

D149288

PIN,8.33mm OD x 30.66mm L

Clevis, Special, Swing pedal rod

4шт.

49

432-612

COTTER PIN,3/32" x 3/4"

4шт.
