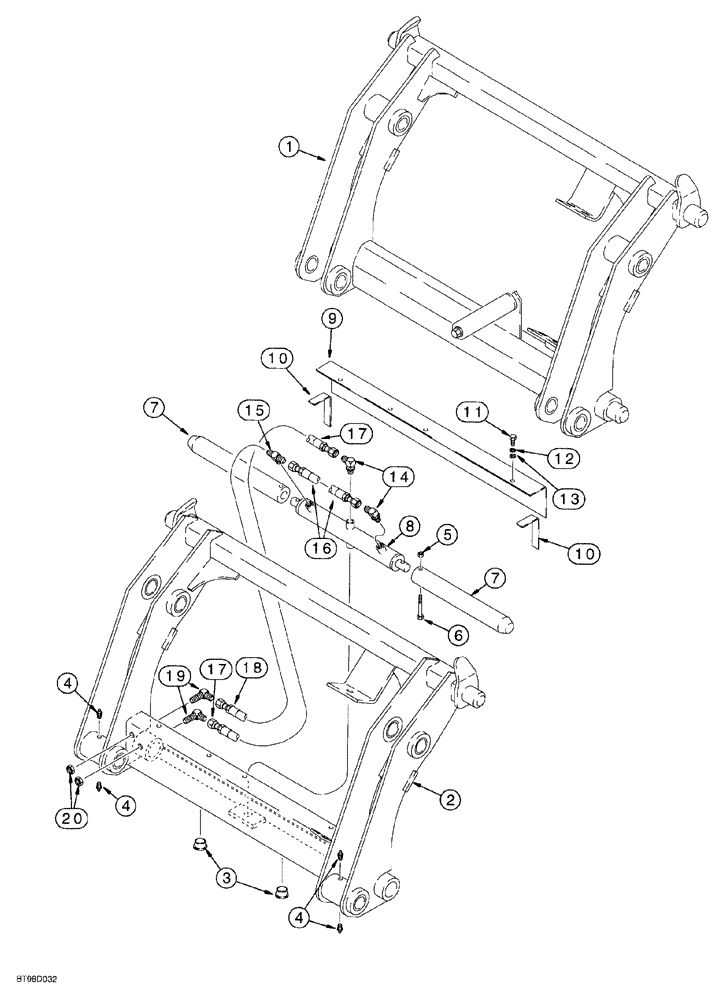

Запчасти Case 580SL (9-022) - TOOL QUICK COUPLERS TOOL QUICK COUPLER MANUAL (09) - CHASSIS/ATTACHMENTS

1

191239A1

COUPLING

tool, loader, manual, used with P/N D121194 bucket position pointer and P/N 139235A1 right-hand bucket cylinder link, Includes: Refs. 6 & 13 on Fig. 9-12 and Ref. 40 on Fig. 8-66, if used

1шт.

Coupler comes complete, component parts are not serviced separately

1шт.

292969A2

COUPLING

quick, tool, loader, hydraulic, for complete assembly order from Machinery Price List, Includes: Ref. 2-35, with auxiliary hydraulics, Category III

1шт.

See Fig. 8-64 for hydraulic tool quick coupler hydraulics

1шт.

307356A1

COUPLING

quick, tool, loader, hydraulic, for complete assembly order from Machinery Price List, Includes: Ref. 2-35, without auxiliary hydraulics, Category III

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME quick tool coupler

1шт.

3

305497A1

PLUG,1.25" x 0.5"

plastic, 1-1/4 ID x 1/2 inch O.D., tool quick coupler, hydraulic

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Tool quick coupler, hydraulic

4шт.

5

231-4246

LOCK NUT,3/8"-16, GB

Tool quick coupler, Hydraulic

2шт.

6

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

Tool quick coupler, hydraulic

2шт.

7

305496A1

PIN,49.23mm OD x 381mm L

1-15/16 O.D. x 15 inch long, tool quick coupler, hydraulic

2шт.

8

305499A1

HYDRAULIC CYLINDER,25.4mm Rod, 203.2mm Stroke

Double acting, Component parts not serviced separately, Tool quick coupler

1шт.

305499A1R

REMAN-HYD CYLINDER

580SL SERIES 2

1шт.

305499A1C

CORE-HYD CYLINDER

Return Number

1шт.

9

305495A1

COVER

channel, tool quick coupler, hydraulic

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL foam, tool quick coupler, hydraulic

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Tool quick coupler, hydraulic

3шт.

12

492-11031

LOCK WASHER,5/16"

Tool quick coupler, hydraulic

3шт.

13

495-11034

WASHER,5/16", SAE

Flat, 11/32 x 11/16 x 1/16"), Tool quick coupler, Hydraulic

3шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, tool quick coupler, hydraulic, Includes: O-ring

2шт.

15

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16-18 inch adj. O-ring branch x flare x flare, tool quick coupler, hydraulic, Includes: O-ring

1шт.

16

305492A1

HYDRAULIC HOSE,260.00 mm

Quick tool coupler

1шт.

17

305494A1

HYDRAULIC HOSE,387.00 mm

Quick tool coupler

1шт.

18

305493A1

HYDRAULIC HOSE,235.00 mm

Quick tool coupler

1шт.

19

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Tool quick coupler, hydraulic

2шт.

20

218-1254

LOCK NUT,Blkhd, 9/16"-18

Tool quick coupler, hydraulic

2шт.

21

305508A1

DECAL KIT

Incl. Four decals, Not shown, Tool quick coupler, Hydraulic

1шт.

22

307385A1

HYDRAULIC HOSE,387.40 mm

HOSE, HYDRAULIC 387mm (15-1/4") used to service couplers 292969A2 and 86982425

2шт.

22

84203107

HYDRAULIC HOSE,469.9mm L

HOSE, HYDRAULIC 469.9mm (18.5") used to service couplers 87602620 and 87602625

2шт.

23

307386A1

HYDRAULIC HOSE,628.70 mm

629 mm (24-3/4") long, Not shown, Tool quick coupler

1шт.

24

307387A1

HYDRAULIC HOSE,717.60 mm

718 mm (28-1/4") long, Not shown, Tool quick coupler

1шт.

25

307388A1

HOSE PROTECTION,26" / 660.4mm L

Guard, 660 mm (26") long, Not shown, Tool quick coupler, Hydraulic

1шт.

26

307389A1

PIVOT

SWIVEL coupler, not shown, tool quick coupler, hydraulic

2шт.

27

137344A1

PLUG

CAP male coupling, not shown, tool quick coupler, hydraulic

1шт.

28

137343A1

PLUG

CAP female coupling, not shown, tool quick coupler, hydraulic

1шт.

29

123537A1

COUPLING, QUICK, FEM

Disconnect, Quick tool coupler, Hydraulic, Not shown

1шт.

30

245423A1

FITTING

COUPLER hydraulic, not shown, tool quick coupler, hydraulic

1шт.

31

126155A1

FITTING

CONNECTOR straight, bulkhead, not shown, tool quick coupler, hydraulic

2шт.

32

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ELBOW, 90 degree, 7/8-14 inch flare x bulkhead flare, not shown, tool quick coupler, hydraulic

2шт.

33

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

Not shown, tool quick coupler, hydraulic

2шт.

34

218-1279

BHD LOCK NUT,Blkhd, 7/8"-14

hex, NF, not shown, tool quick coupler, hydraulic

2шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Not shown, tool quick coupler, hydraulic

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Tool quick coupler, hydraulic

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Tool quick coupler, hydraulic

1шт.
