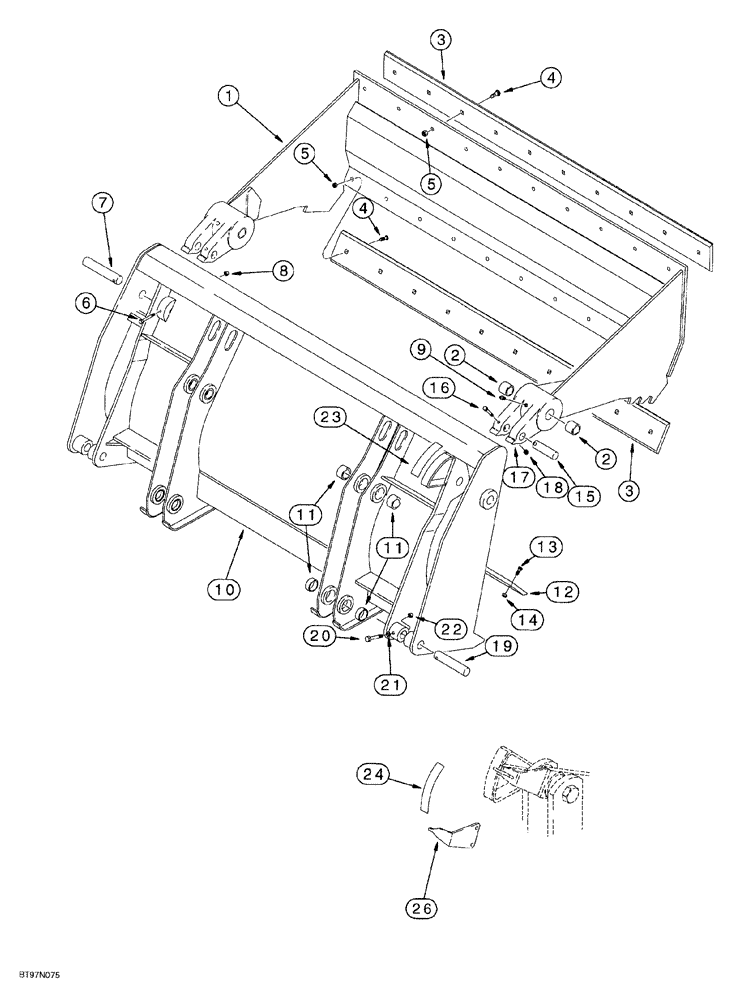

Запчасти Case 580SL (9-018) - LOADER CLAM BUCKET (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
315003A1
BUCKET
ASSEMBLY, clam, loader, with hydraulics, order from Machinery Parts List, 2083 mm (82 inch) wide, includes Ref. 1-23 & P/N 175156A1 below and Ref. 1 - 21 hydraulics on Fig. 8-18
1шт.
185488A1
BUCKET
ASSEMBLY, clam, order from Machinery Price List, 2083 mm (82 inch) wide, Includes: Ref. 1-14 & P/N 175156A1
1шт.
175156A1
CLAMSHELL BUCKET
Assy, Incl Ref 1 & 2
1шт.
1
NSS
NOT SOLD SEPARAT
CLAM bucket
1шт.
2
D31140
BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L
25 mm (1 inch) long, clam pivot
4шт.
3
142300A1
CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2083mm L
Bucket
2шт.
5
29-1012
NUT,3/4"-10, G8
20шт.
6
844-10110
BOLT,Hvy Hex, M10 x 110mm, Cl 8.8
2шт.
7
D51391
PIN,15mm OD x 74mm L
Pivot, Serial Range: clam-blade
2шт.
8
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
9
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
175160A1
4 IN 1 BUCKET
BLADE ASSEMBLY, clam bucket, Includes: Refs. 10 & 11
1шт.
10
NSS
NOT SOLD SEPARAT
BLADE bucket
1шт.
11
D129264
BUSHING,40.3mm ID x 50mm OD x 28mm L
bucket ear
8шт.
12
121920A1
CUTTING EDGE,Bolt On, 10 Holes, 12.7mm W x 2080mm L
Blade
1шт.
13
20-21032
PLOW BOLT,#3, 5/8" - 11 x 2", Gr 8
10шт.
14
29-1010
NUT,5/8"-11, G8
10шт.
15
D51392
PIN,31.72mm OD x 101.6mm L
cylinder mounting, upper
2шт.
16
814-10090
BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8
2шт.
18
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
19
D51393
PIN,31.72mm OD x 152.4mm L
Cylinder mounting, lower
2шт.
20
814-10080
BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8
2шт.
22
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
23
321-1708
DECAL
0 - 2 - 4, clam bucket opening indicator
1шт.
24
321-1707
DECAL
clam bucket position
1шт.
26
250851A1
POINTER
bucket position, bolts to clam bucket link, see Fig. 9-12 for link and mounting hardware
1шт.
17
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
21
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
Выбрано товаров: 29
