(9-012) - LOADER FRAME BUCKET LINKS AND BUCKET CYLINDER LINKS

Запчасти Case 580SL (9-012) - LOADER FRAME BUCKET LINKS AND BUCKET CYLINDER LINKS (09) - CHASSIS/ATTACHMENTS

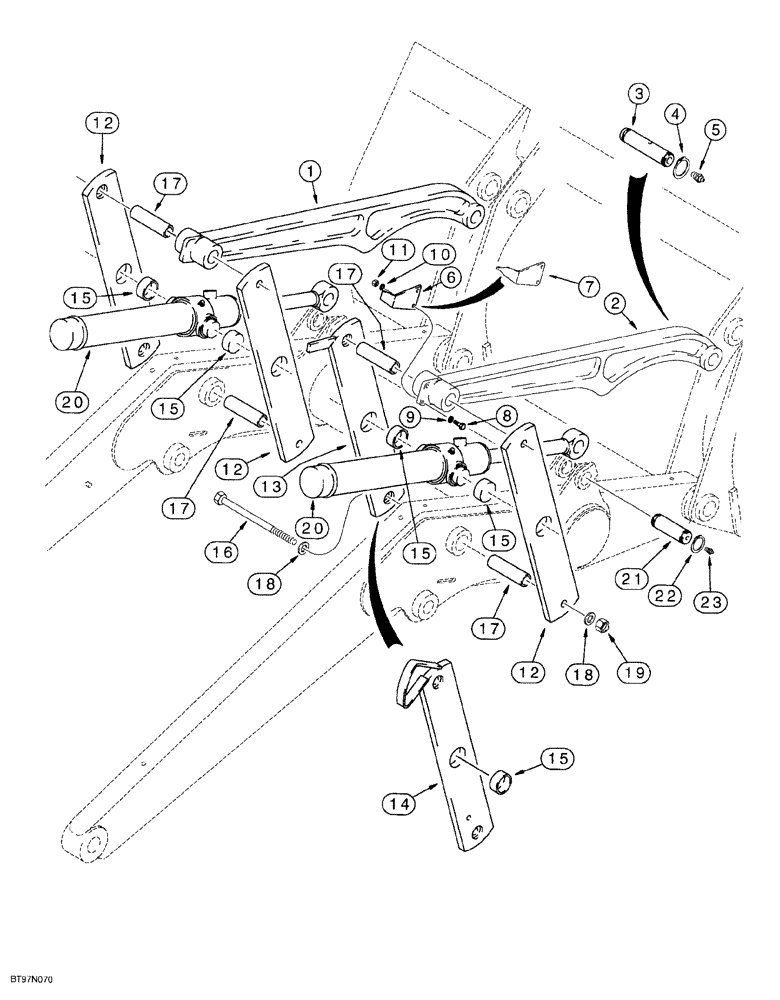

Схема запчастей Case 580SL - (9-012) - LOADER FRAME BUCKET LINKS AND BUCKET CYLINDER LINKS (09) - CHASSIS/ATTACHMENTS
6
17
15
18
4
20
5
17
16
14
22
17
12
9
19
15
21
1
12
15
23
15
2
3
20
18
13
15
17
12
8
11
7
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

331621A1

PITMAN

LINK bucket, left hand, without mounting holes for bucket position pointer, used in production, for service order P/N 331620A1 link, Ref. 2; replaces 141471A1

1шт.

2

331620A1

PITMAN

LINK bucket, left hand or right hand, with mounting holes for bucket position pointer, replaces P/N 141471A1

1-2шт.

3

118901A1

PIN,40mm OD x 180mm L

Bucket links to loader bucket

2шт.

4

800-44040

SNAP RING,M40, Ext

heavy external retaining, No. 40, pin retaining

4шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

6

D121194

POINTER

bucket position, models without clam bucket

1шт.

7

250851A1

POINTER

bucket position, models with clam bucket

1шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Full thd

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

892-11008

LOCK WASHER,8mm ID

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

12

139180A1

LINK ASSY.

LINK bucket cylinder, outer right hand and inner and outer left hand, includes Ref. 15 bushing

3шт.

13

139235A1

PITMAN

LINK bucket cylinder, inner right hand, with extra hole for antirollback rod, includes Ref. 15 bushing, models without clam bucket, see Ref. 14 link for models without clam bucket

1шт.

14

139195A1

PITMAN

LINK bucket cylinder, inner right hand, with extra hole for antirollback rod, includes Ref. 15 bushing, models with clam bucket, see Ref. 13 for models without clam bucket

1шт.

15

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

One per each link, Ref 12-14

1шт.

16

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

BOLT hex, 20 - 2.5 x 190 mm, class 10.9

4шт.

17

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

BUSHING, cylinder links

4шт.

18

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

8шт.

19

829-1420

NUT,M20, Cl 10

4шт.

20

113133A2

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 522.3mm Stroke

76 (3) ID x 522 mm (20-9/16 inch) stroke, loader bucket, parts list Fig. 8-128

2шт.

20

113133A2R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

20

113133A2C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

21

116339A1

PIN,40mm OD x 125mm L

Bucket cylinder rod end

2шт.

22

800-44040

SNAP RING,M40, Ext

heavy external retaining, No. 40, pin retaining

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
