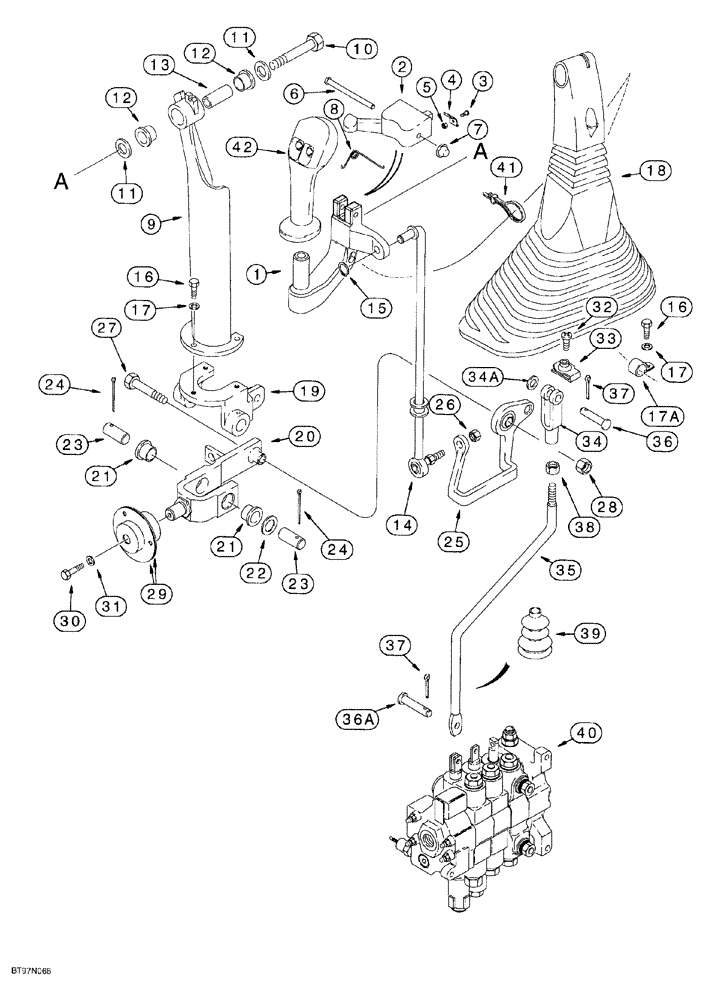

Запчасти Case 580SL (9-004) - LOADER CLAM CONTROL (09) - CHASSIS/ATTACHMENTS

1

297615A1

HANDLE

control lever

1шт.

2

123815A1

LATCH

clam lock

1шт.

3

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

machine, pan head Phillips, No. 5 NC x 3/8 inch

2шт.

4

129914A1

SPRING

leaf, clam lock

2шт.

5

225-14105

NUT,#5-40

2шт.

6

439-5436

HEADED PIN,1/4" x 2 1/4", G5

1шт.

7

143210A1

BLANK-OFF PLUG

CAP push, 1/4 inch

1шт.

8

124243A1

SPRING

torsion, latch

1шт.

9

123493A1

SUPPORT

LEVER control, loader clam

1шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

11

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

12

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

flanged, control lever

2шт.

13

133989A1

SLEEVE

Pivot

1шт.

14

239306A1

THREADED ROD

control, clam

1шт.

15

103-1437

SNAP RING,#37, Ext

1шт.

16

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

17

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

3шт.

17a

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type, Clutch cutout control harness to control lever

1шт.

18

133617A1

BOOT

BOOT control lever, clam

1шт.

19

195615A1

SUPPORT

BRACKET control, Serial Range: lever-bellcrank

1шт.

20

176311A1

BELLCRANK

BELLCRANK control, loader, Includes: Ref. 21

1шт.

21

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

flanged, bellcrank

2шт.

22

495-81184

WASHER,21/32" x 1 1/2" x .030"

flat, 21/32 x 1-1/2 x 1/32 inch, use as a spacer

1шт.

23

102761A1

PIN,15.91mm OD x 35mm L

Bellcrank to control lever bracket

2шт.

24

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

25

112382A1

BELLCRANK

BELLCRANK control, loader clam

1шт.

26

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

28

231-1446

NUT,3/8" - 16, Gr 5

1шт.

29

112380A1

BEARING ASSY

Retainer

2шт.

30

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

31

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

32

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

1шт.

33

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

34

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

34a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), Between clevis and bellcrank

1шт.

35

187438A1

THREADED ROD

control, clam, at loader valve

1шт.

36

D149288

PIN,8.33mm OD x 30.66mm L

Clevis, Special, Upper

1шт.

36a

D149287

PIN,7.9mm OD x 26.72mm L

Clevis, Special, 5/16 x 15/16 inch, hardened, clam control rod lower clevis

1шт.

37

432-612

COTTER PIN,3/32" x 3/4"

2шт.

38

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

39

132873A1

BELLOWS

BOOT, 3/8 inch rod, at loader valve

1шт.

40

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, three spool, parts list Fig. 8-74 or 8-75A

1шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, if used

1шт.

42

292904A1

HANDLE

control lever, loader, two button, declutch and differential lock switches, models without powershift transmission, not shown

1шт.

42a

293262A1

HANDLE

control lever, loader, two button, declutch and differential lock switches, models with powershift transmission, not shown

1шт.

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

CONNECTOR harness

1шт.

258616A1

LOCK

four pin

1шт.

298176A1

PLUG

cavity

1шт.

345-133

GLUE

ADHESIVE, Superbonder 409, 1 ml, for attaching Ref. 1 to Ref. 42

1шт.
