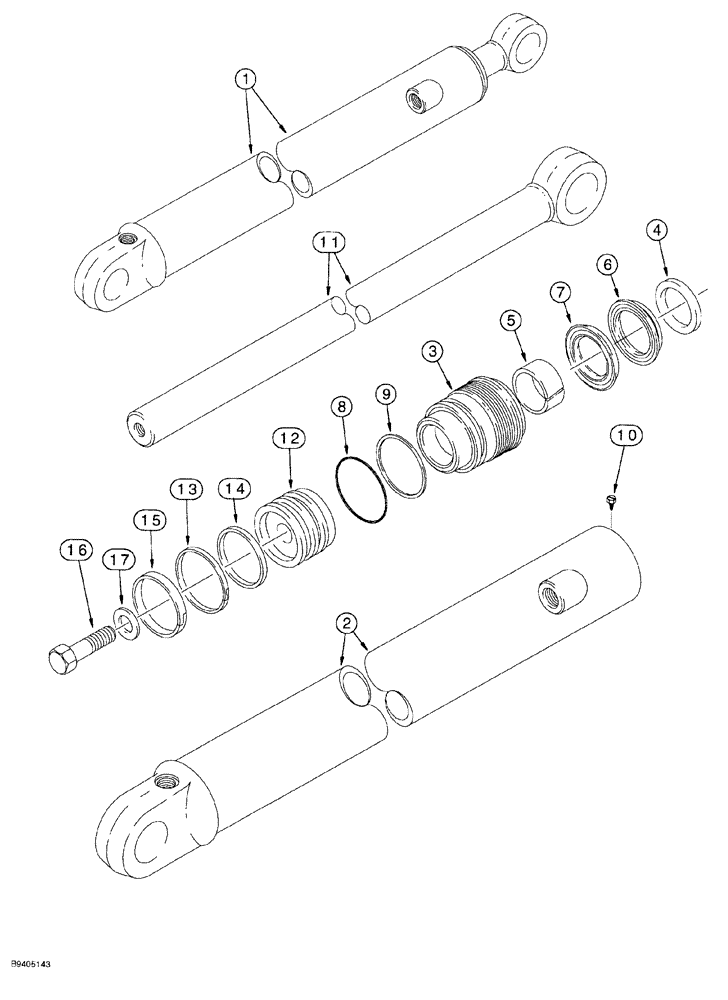

Запчасти Case 580SL (8-142) - BACKHOE DIPPER EXTENSION CYLINDER (08) - HYDRAULICS

1

1340969C2

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

76 (3) ID x 1068 mm (42 inch) stroke, Dipper extension, See note, Incl Ref 2-17

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

1340969C2R

REMAN-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

1

1340969C2C

CORE-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

2

1340970C1

TUBE,76.1mm Bore Dia

Tube, without bushing

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Refs. 3-9

1шт.

3

297281A1

GLAND

Replaces P/N G109884

1шт.

4

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER dust

1шт.

Part of seal kit P/N 1543267C1

1шт.

5

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit P/N 1543267C1

1шт.

1542875C1

SEAL KIT,44.4mm Rod

NSS, Order P/N 1543267C1 kit below, Incl Refs 6 & 7

1шт.

Part of seal kit P/N 1543267C1

1шт.

6

1542999C1

SEAL

rod, NSS, order P/N 1543267C1 kit below

1шт.

7

1542998C1

SEALING RING

buffer, NSS, order P/N 1543267C1 kit below

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland

1шт.

Part of seal kit P/N 1543267C1

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N 1543267C1

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

11

1980296C1

PISTON ROD

44 mm (1-3/4 inch) diameter, without bushing

1шт.

12

G107277

PISTON

cylinder

1шт.

13

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

Part of seal kit P/N 1543267C1

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston

1шт.

Part of seal kit P/N 1543267C1

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

piston

1шт.

Part of seal kit P/N 1543267C1

1шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

17

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, special, hardened

1шт.

1543267C1

SEAL KIT

Incl Ref 4, 5, 8, 9, 13, 14, 15 and P/N 1542875C1 and an instruction sheet

1шт.
