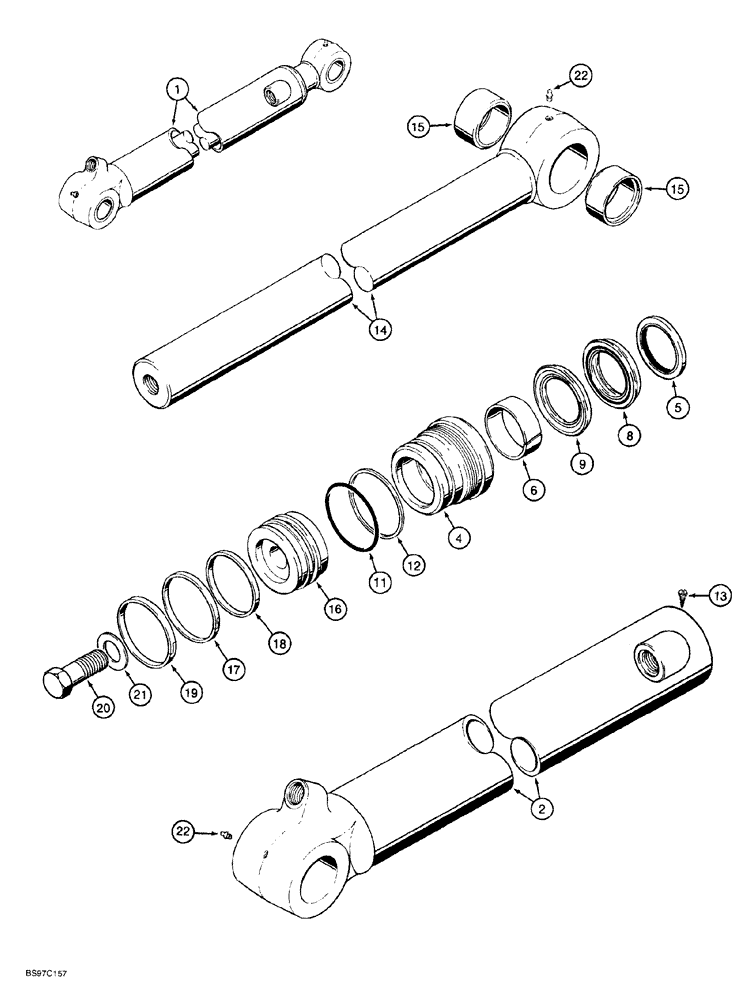

Запчасти Case 580SL (8-140) - BACKHOE BUCKET CYLINDER (08) - HYDRAULICS

1

235916A1

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 871.7mm Stroke

80 (3-1/2) ID x 872 mm (34-5/16 inch) stroke, Bucket, Incl Ref 2 - 22

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN 235916A1

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

235917A2

BARREL

(Tube) Assy

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Refs. 4-12

1шт.

4

235921A1

CYLINDER END CAP

GLAND

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

piston rod, part of seal kit P/N 1542919C2

1шт.

Part of seal kit P/N 1542923C2

1шт.

6

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

center, part of seal kit P/N 1542919C2

1шт.

Part of seal kit P/N 1542923C2

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

seal, NSS, order P/N 1542923C2 kit below, Includes: Refs. 8 & 9

1шт.

Part of seal kit P/N 1542923C2

1шт.

8

1542931C1

SEAL

SEAL rod, NSS, order P/N 1542923C2 kit below

1шт.

9

1542930C1

SEAL

SEAL buffer, NSS, order P/N 1542923C2 kit below

1шт.

11

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

4-5/8 ID x 1/8 inch wide, gland, part of seal kit P/N 1542919C2

1шт.

Part of seal kit P/N 1542923C2

1шт.

12

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup, part of seal kit P/N 1542919C2

1шт.

Part of seal kit P/N 1542923C2

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

14

196164A1

PISTON ROD

ASSEMBLY, 64 mm (2-1/2 inch) diameter, cylinder, Includes: Ref. 15

1шт.

15

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

50 x 60 x 25 5 mm long, piston rod

2шт.

16

1986906C1

PISTON

cylinder

1шт.

17

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

Piston, part of kit 1542919C2

1шт.

Part of seal kit P/N 1542923C2

1шт.

18

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup, piston seal, part of seal kit 1542919C2

1шт.

Part of seal kit P/N 1542923C2

1шт.

19

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston, Part of seal kit 1542919C2

1шт.

Part of seal kit P/N 1542923C2

1шт.

20

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

1шт.

21

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, hardened, special, 1-1/4 inch

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1542923C2

SEAL KIT,63.5mm Rod x 88.9mm Bore

KIT, Includes: Refs. 5, 6, 11, 12, 17, 18, 19, and P/N 1542879C1 and an instruction sheet

1шт.
