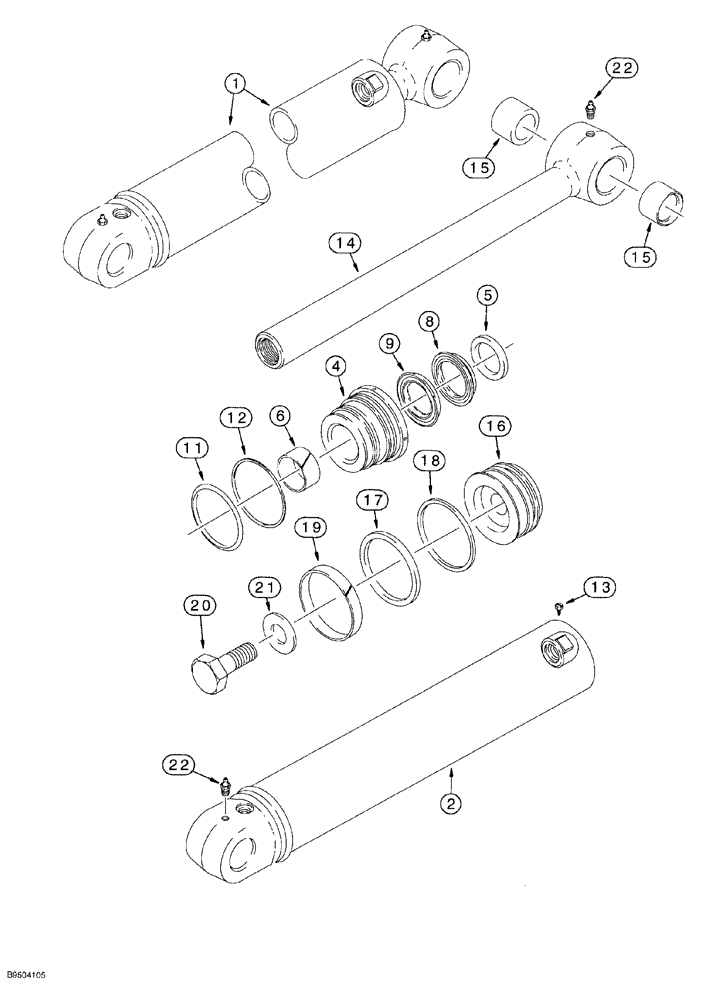

Запчасти Case 580SL (8-138) - BACKHOE DIPPER CYLINDER - P/N 183795A2 (08) - HYDRAULICS

1

183795A2

CYLINDER ASSY.

127 (5) ID x 583 mm (23 inch) stroke, dipper, no longer available, order P/N 183795A3, Includes: Refs. 2-22

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

183795A4R

REMAN-HYD CYLINDER

Reman for New PN 183795A2

1шт.

1

183795A4C

CORE-HYD CYLINDER

Return Number

1шт.

2

183796A2

TUBE,126.87 mm OD

TUBE, no longer available, order P/N's 310994A1 tube and 311109A1 piston

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Refs. 4-12

1шт.

4

1542914C1

GLAND,127mm Bore, 63.5mm Rod, 91.8mm W

cylinder

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

piston rod

1шт.

Included with seal kit, 1542919C2

1шт.

6

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

center

1шт.

Included with seal kit, 1542919C2

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

seal, NSS, order P/N 1542915C2 kit below, Includes: Ref. 8 & 9

1шт.

Included with seal kit, 1542919C2

1шт.

8

1542931C1

SEAL

SEAL rod, NSS, order P/N 1542915C2 kit below

1шт.

9

1542930C1

SEAL

SEAL buffer, NSS, order P/N 1542915C2 kit below

1шт.

11

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland

1шт.

Included with seal kit, 1542919C2

1шт.

12

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Included with seal kit, 1542919C2

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

14

178850A1

PISTON ROD

ASSEMBLY, 64 mm (2-1/2 inch) diameter, cylinder, Includes: Ref. 15

1шт.

15

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

Rod

2шт.

16

G110569

PISTON,126.29mm Bore, 63.58mm Rod, 57.2mm W

cylinder

1шт.

17

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

piston

1шт.

Included with seal kit, 1542919C2

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

backup, piston seal

1шт.

Included with seal kit, 1542919C2

1шт.

19

G102090

RING,127mm OD, Ext

wear, piston

1шт.

Included with seal kit, 1542919C2

1шт.

20

25987R1

BOLT,Hex, 1 1/2" - 12 x 3 1/2", Gr 8

BOLT hex, 1-1/2 NF x 3-1/2 inch, grade 8

1шт.

21

G104990

WASHER

flat, hardened, special, 1-1/2 inch

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1542915C2

SEAL KIT

KIT, Includes: Refs. 7, 8, 13, 14, 21, 22, and P/N 1542877C1, also a seal and wiper not used in this application

1шт.
