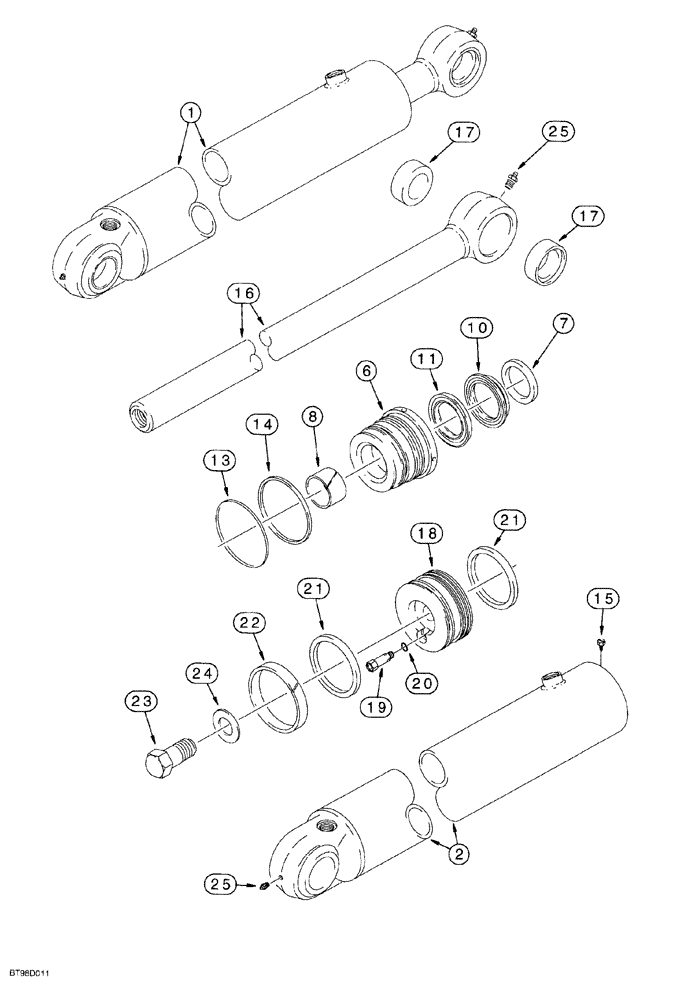

Запчасти Case 580SL (8-137A) - BACKHOE BOOM CYLINDER WITHOUT TUBE EYE BUSHINGS (08) - HYDRAULICS

1

310844A1

CYLINDER ASSY.

127 (5) ID x 842 mm (33-5/32 inch) stroke, boom, Includes: Refs. 2-25

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

87408036R

REMAN-HYD CYLINDER

580SL Series 2, Reman For New P/N's 310844A1 & 87408036

1шт.

87408036C

CORE-HYD CYLINDER

Return Number

1шт.

2

304957A1

TUBE,126.87 mm ID, 134.14 mm OD, 1069.8 mm Length

TUBE ASSEMBLY, cylinder

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Refs. 6-14

1шт.

6

1542918C3

GLAND

Replaces P/N 1542918C2

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

piston rod

1шт.

Included with seal kit, 1542919C2

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

Center

1шт.

Included with seal kit, 1542919C2

1шт.

1542877C1

SEAL KIT,57.2mm Rod

NSS, order P/N 1542919C2 kit below, Includes: 10 & 11

1шт.

Included with seal kit, 1542919C2

1шт.

10

1542929C1

SEAL,2.778mm OD

SEAL rod, NSS, order P/N 1542919C2 kit below

1шт.

11

1542928C1

SEAL,2.275" ID

SEAL buffer, NSS, order P/N 1542919C2 kit below

1шт.

13

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland

1шт.

Included with seal kit, 1542919C2

1шт.

14

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Included with seal kit, 1542919C2

1шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

16

123405A6

PISTON ROD

ASSEMBLY, piston, 57 mm (2-1/4 inch) diameter, Includes: Ref. 17

1шт.

17

123407A1

BUSHING,60.19mm ID x 70mm OD x 28mm L

Rod

2шт.

18

1346018C2

JACK PISTON

cylinder, used with P/N 1958028C1 relief valve cartridge

1шт.

19

1958028C1

VALVE

ASSEMBLY, relief, cartridge, internal component parts not serviced separately, Includes: Ref. 20

1шт.

21

G110269

SEAL,112.5mm ID x 126.88mm OD x 7.29mm Thk

piston

2шт.

Included with seal kit, 1542919C2

1шт.

22

G102090

RING,127mm OD, Ext

wear, piston

1шт.

Included with seal kit, 1542919C2

1шт.

23

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

24

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, hardened, special, 1-1/4 inch

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1542919C2

SEAL KIT

KIT, Includes: Refs. 7, 8, 13, 14, 21, 22, and P/N 1542877C1, also includes P/N G108712 piston rod wiper not used in this application, and an instruction sheet

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Relief valve cartridge, external

1шт.
