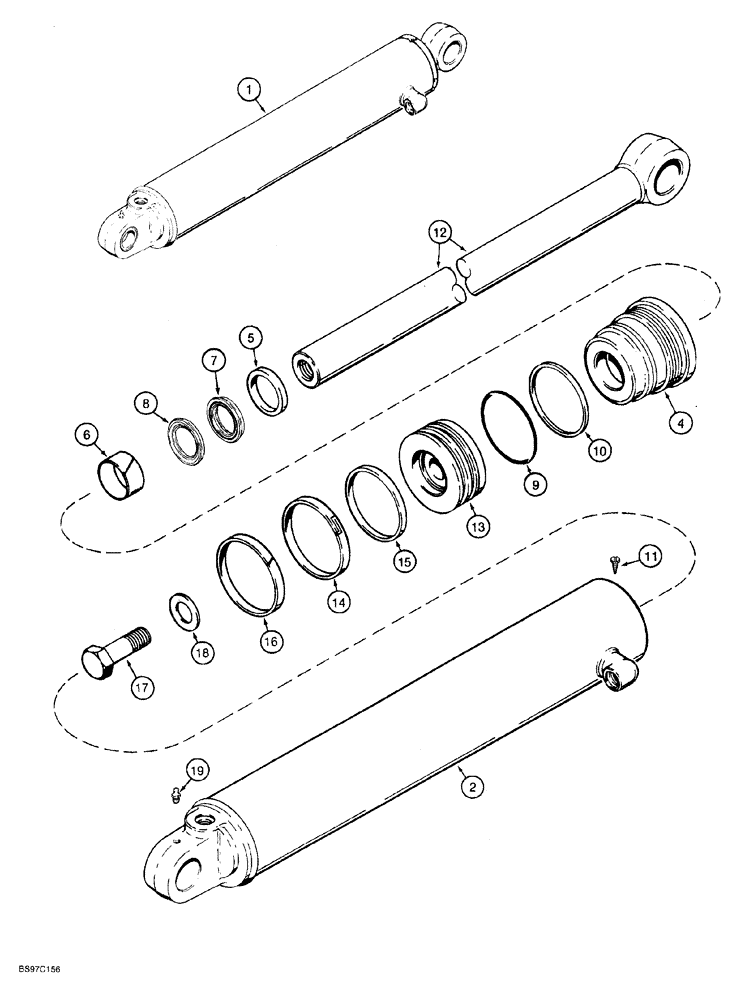

Запчасти Case 580SL (8-132) - BACKHOE STABILIZER CYLINDERS (08) - HYDRAULICS

1

199720A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

108 (4-1/4) ID x 553 mm (21-3/4") stroke, Stabilizer, RH, without tube or rod bushings, Incl Ref 2-19

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

199720A1R

REMAN-HYD CYLINDER

R. Stabilizer

1шт.

1

199720A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

199721A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

108 (4-1/4) ID x 553 mm (21-3/4 inch) stroke, stabilizer, left hand, without tube or rod bushings, Includes: Refs. 2-19 (Not Shown)

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

199721A1R

REMAN-HYD CYLINDER

Reman for New PN 199721A1

1шт.

1

199721A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

199722A1

BARREL,107.82 mm OD

TUBE, right hand

1шт.

2

199723A1

BARREL,107.82 mm OD

(Tube), LH (Not Shown)

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Refs. 4-10

1шт.

4

297284A1

GLAND

Replaces P/N G110519

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Included with seal kit, 1543275C1, 84155085

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

center

1шт.

Included with seal kit, 1543275C1, 84155085

1шт.

1542876C1

SEAL KIT,50.8mm Rod

NSS, Incl Ref 7 & 8

1шт.

Included with seal kit, 1543275C1, 84155085

1шт.

7

1543001C1

SEAL

SEAL rod, NSS, order P/N 1543275C1 kit below

1шт.

8

1543000C1

SEAL

SEAL buffer, NSS, order P/N 1543275C1 kit below

1шт.

9

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

Gland

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

123726A1

PISTON ROD

51 mm (2 inch) diameter

1шт.

13

123732A1

PISTON

cylinder

1шт.

14

G110531

SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk

piston

1шт.

Included with seal kit, 1543275C1, 84155085

1шт.

15

G110529

RING

backup, piston seal

1шт.

Included with seal kit, 1543275C1, 84155085

1шт.

16

G110530

RING,108mm OD, Ext

wear, piston

1шт.

Included with seal kit, 1543275C1, 84155085

1шт.

17

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

18

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, hardened, special, 1-1/32 x 2-3/8 x 3/16 inch

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

1543275C1

SEAL KIT

Incl Ref 5, 6, 9, 10, 14, 15, 16 and P/N 1542876C1 and an instruction sheet

1шт.

84155085

SEAL KIT,Reapir, 108.0 x 50.8

Incl Ref 5, 6, 14, 15, 16 and P/N 1542876C1 and an instruction sheet

1шт.
