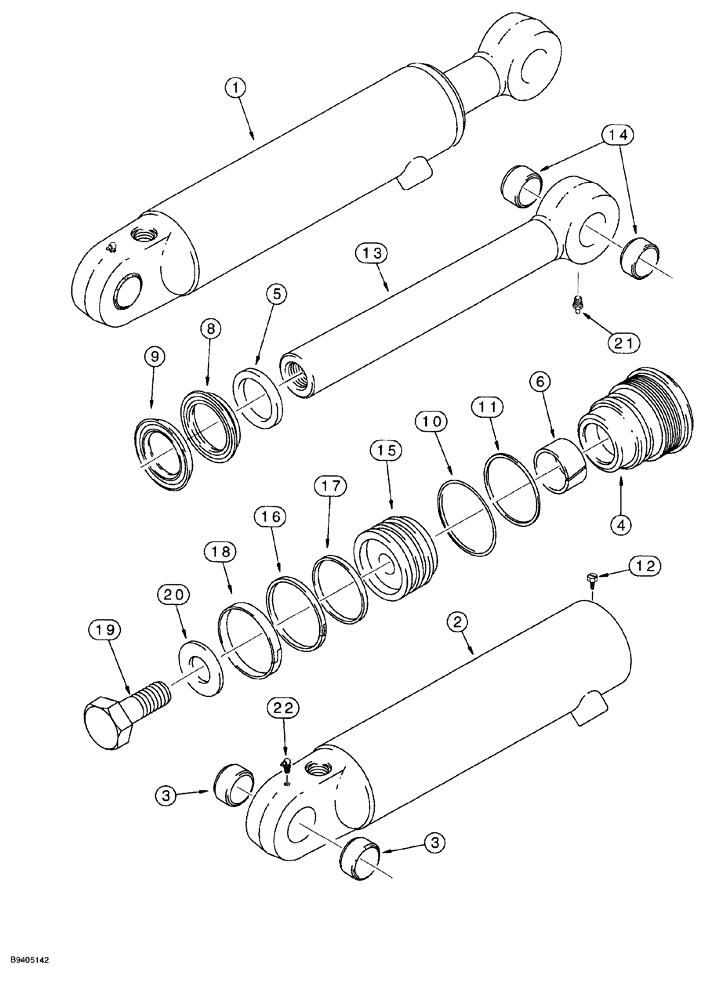

Запчасти Case 580SL (8-130) - LOADER CLAM CYLINDERS (08) - HYDRAULICS

1

1346189C1

CYLINDER ASSY.

76 (3) ID x 231 mm (9 inch) stroke, clam, right hand, Includes: Refs. 2-22

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

87454017R

REMAN-HYD CYLINDER

580SL SERIES 2 LOADER BACKHOE, 76 (3) ID x 231 mm (9 inch) stroke, clam, right hand, Reman for New PN 1346189C1

1шт.

1

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

1

1346190C1

CYLINDER ASSY.

76 (3) ID x 231 mm (9 inch) stroke, clam, left hand, Includes: Refs. 2-22

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1346191C1

TUBE

TUBE ASSEMBLY, right hand, Includes: Ref. 3

1шт.

2

1346192C1

TUBE

TUBE ASSEMBLY, left hand, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

1346191C1 or 1346192C1 tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Refs. 4-11

1шт.

4

297281A1

GLAND

Replaces P/N G109884

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER dust

1шт.

Included with seal kit, 1543267C1

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Included with seal kit, 1543267C1

1шт.

1542875C1

SEAL KIT,44.4mm Rod

NSS, Order P/N 1543267C1 kit below, Incl Refs 8 & 9

1шт.

Included with seal kit, 1543267C1

1шт.

8

1542999C1

SEAL

rod, NSS, order P/N 1543267C1 kit below

1шт.

9

1542998C1

SEALING RING

buffer, NSS, order P/N 1543267C1 kit below

1шт.

10

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland

1шт.

Included with seal kit, 1543267C1

1шт.

11

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Included with seal kit, 1543267C1

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

13

1346195C1

PISTON ROD

ASSEMBLY piston, 44 mm diameter, Includes: Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

15

1340798C1

PISTON,76.2mm Bore, 44.4mm Rod, 37.85mm W

cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

Included with seal kit, 1543267C1

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston

1шт.

Included with seal kit, 1543267C1

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

wear, piston

1шт.

Included with seal kit, 1543267C1

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, special, 1 inch, hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

1543267C1

SEAL KIT

Incl Ref 5, 6, 10, 11, 16, 17, 18 and P/N 1542875C1 and an instruction sheet

1шт.
