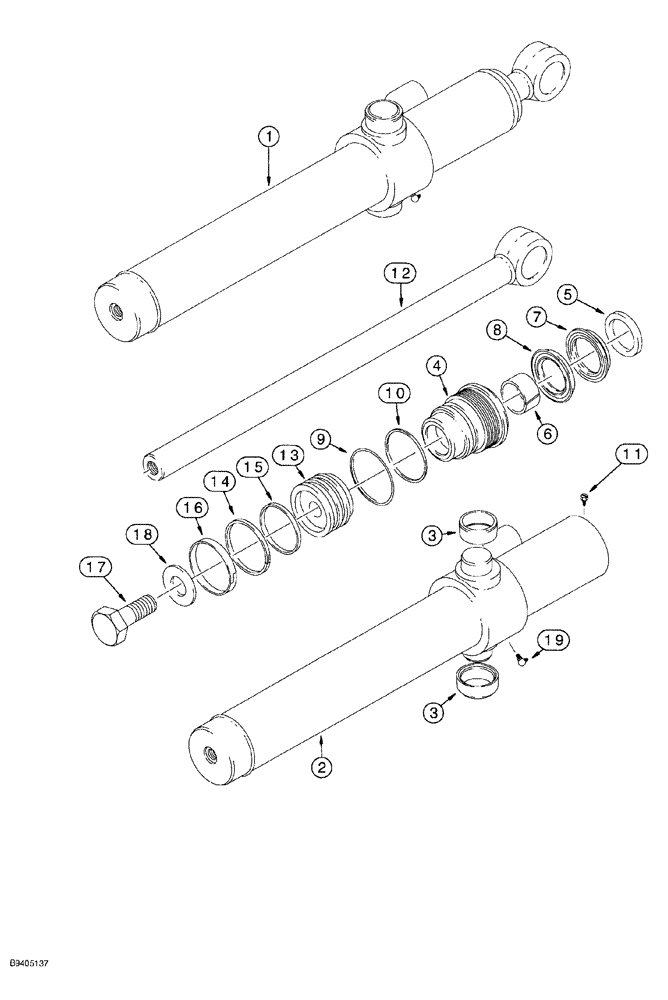

Запчасти Case 580SL (8-128) - LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

113133A2

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 522.3mm Stroke

76 (3) ID x 522 mm (20-9/16 inch) stroke, bucket, left hand and right hand, Includes: Ref. 2-19, includes bushings in cylinder tube and without bushings at rod eye, see note

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

113133A2R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

1

113133A2C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

2

113135A2

BARREL

Assy, Incl Ref 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Refs. 4-10

1шт.

4

297280A1

GLAND

cylinder, replaces P/N G109881

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

Center, Gland

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

NSS, Incl Ref 7 & 8

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

7

1542997C1

SEALING RING

rod, NSS

1шт.

8

1542996C1

SEAL

SEAL buffer, NSS

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

110307A1

PISTON ROD

38 mm (1-1/2 inch) diameter, without bushings in eye

1шт.

13

G108518

PISTON

cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

wear, piston

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, special, hardened

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Incl Ref 5, 6, 9, 10, 14, 15, 16 and P/N 1542874C1 and an instruction sheet

1шт.
