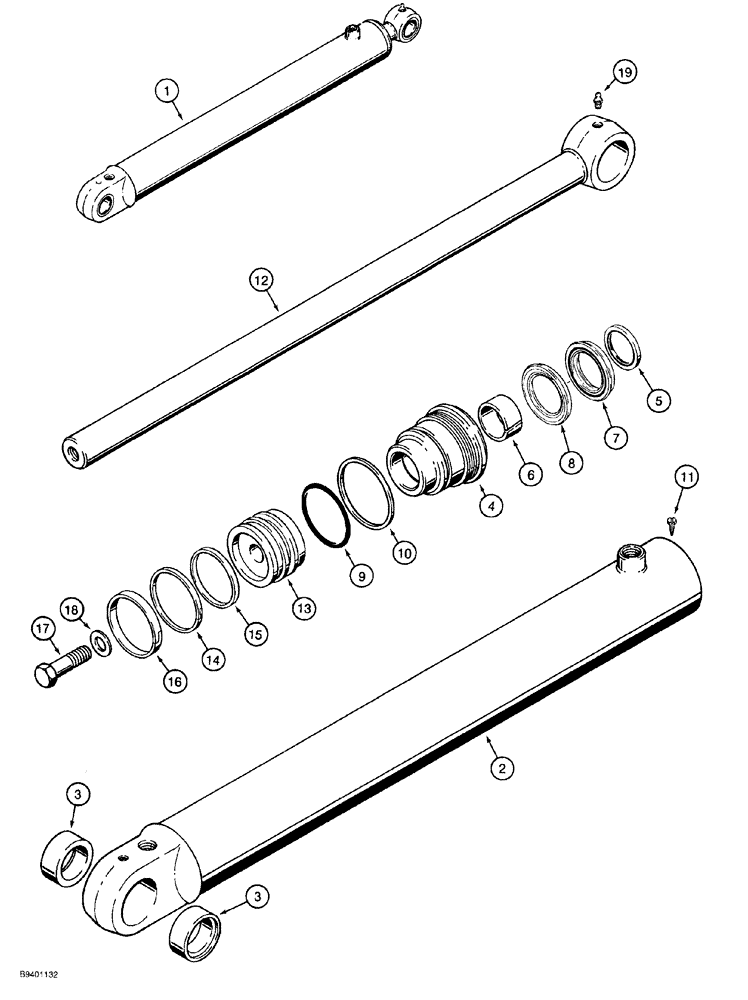

Запчасти Case 580SL (8-126) - LOADER LIFT CYLINDERS (08) - HYDRAULICS

1

112366A2

CYLINDER ASSY.

83 (3-1/4) ID x 766 mm (30-1/8 inch) stroke, lift, right hand and left hand, Includes: Refs. 2-19

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

384240A1R

REMAN-HYD CYLINDER

Reman for New PN 112366A2

2шт.

1

384240A1C

CORE-HYD CYLINDER

Return Number

2шт.

2

112432A1

TUBE,82.6 mm ID, 963.7 mm Length

TUBE ASSEMBLY, Includes: Ref. 3

1шт.

3

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Refs. 4-10

1шт.

4

1980321C3

GLAND

cylinder, replaces P/N 1980321C2, part of seal kit P/N 1543260C1

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER dust

1шт.

Included with seal kit, 1543260C1

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Included with seal kit, 1543260C1

1шт.

1542875C1

SEAL KIT,44.4mm Rod

NSS, Incl Refs 7 & 8

1шт.

Included with seal kit, 1543260C1

1шт.

7

1542999C1

SEAL

rod, NSS, part of kit P/N 1543260C1

1шт.

8

1542998C1

SEALING RING

buffer, NSS, part of kit P/N 1543260C1

1шт.

9

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

Gland

1шт.

Included with seal kit, 1543260C1

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup

1шт.

Included with seal kit, 1543260C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

133083A1

PISTON ROD

44 mm (1-3/4 inch) diameter, cylinder, without bushings

1шт.

13

135161A1

PISTON,82.07mm Bore, 44.5mm Rod, 50.65mm W

cylinder

1шт.

14

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

piston

1шт.

Included with seal kit, 1543260C1

1шт.

15

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

backup, piston seal

1шт.

Included with seal kit, 1543260C1

1шт.

16

S109445

RING,82.55mm OD, Ext

wear, piston

1шт.

Included with seal kit, 1543260C1

1шт.

17

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, special, 1 inch, hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

1543260C1

SEAL KIT

Incl Ref 5, 6, 9, 10, 14, 15, 16 and P/N 1542875C1 and an instruction sheet

1шт.
