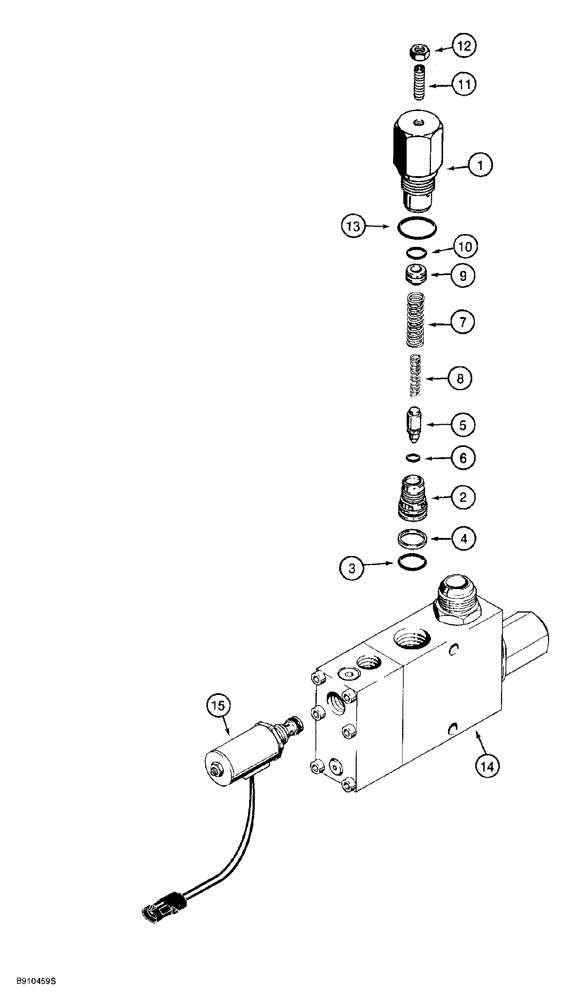

Запчасти Case 580SL (8-120) - BOOM LOCK SOLENOID VALVE (08) - HYDRAULICS

189957A1

VALVE

ASSEMBLY, solenoid, backhoe boom lock, includes (2) P/N 321-6046 warning decals, see Fig. 9-156 for decal, Includes: Refs. 1-15

1шт.

G110467

VALVE, PRESSURE RELI

EF ASSEMBLY, circuit, solenoid, used in production, order P/N G110077 kit for service, Includes: Refs. 1-13

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

Included with service kit, G110077

1шт.

1

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Relief valve seat

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

11

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

Headless, oval point

1шт.

12

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

BODY solenoid

1шт.

15

221168A1

SOLENOID VALVE

relief, with connector, 12 volt

1шт.

D150781

REPAIR KIT

Incl. (3) springs, (1) ball, (1) poppet, and (1) plug which are not serviced separately

1шт.

D150810

SEAL

seal, includes (9) O-rings and (2) backup rings which are not service separately, not shown

1шт.

G110077

KIT

service, for P/N G110467 circuit relief valve, includes P/N G110078 circuit relief valve assembly, Refs. 1-13, and an instruction sheet

1шт.
