(8-119C) - AUXILIARY BACKHOE VALVE

Запчасти Case 580SL (8-119C) - AUXILIARY BACKHOE VALVE (08) - HYDRAULICS

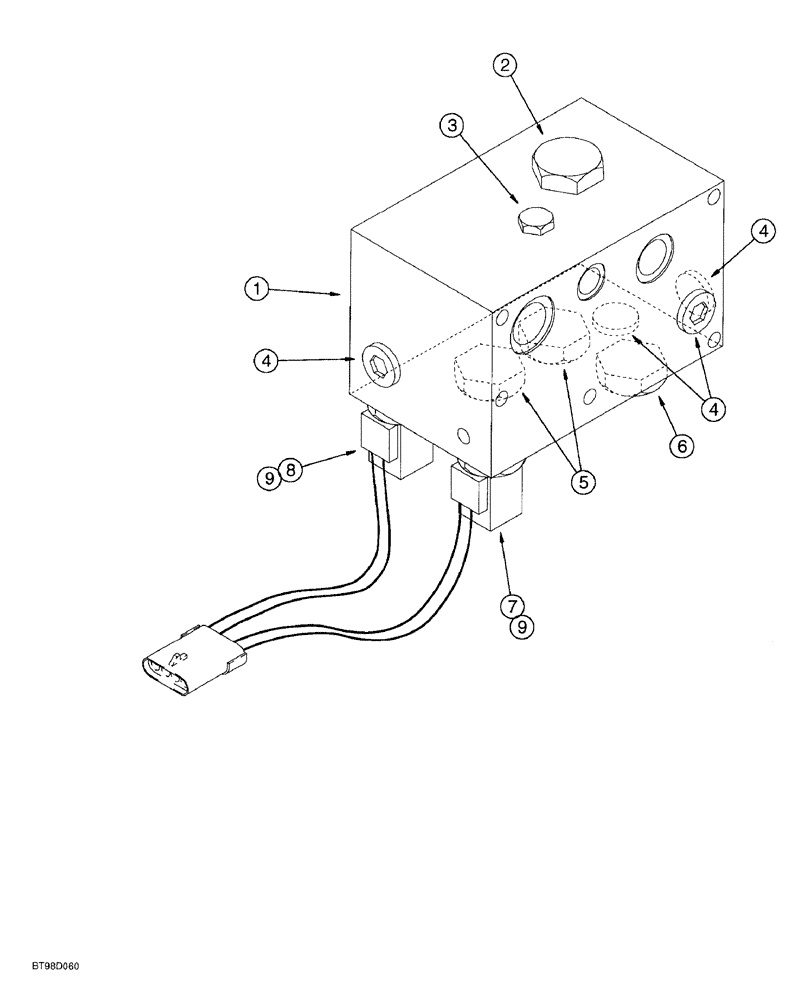

Схема запчастей Case 580SL - (8-119C) - AUXILIARY BACKHOE VALVE (08) - HYDRAULICS
4
1
6
4
9
9
8
3
7
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

298772A1

VALVE

ASSEMBLY, auxiliary, backhoe, Includes: Refs. 1-9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

309785A1

VALVE

check, component parts not serviced separately

1шт.

Included with seal kit, 309787A1

1шт.

3

304371A1

HYDRAULIC VALVE

coast check, component parts not serviced separately

1шт.

Included with seal replacement kit, 149942C1

1шт.

4

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 237-6012

4шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

309789A1

VALVE

check, component parts not serviced separately

2шт.

Included with seal kit, 309787A1

1шт.

6

309788A1

VALVE

check, component parts not serviced separately

1шт.

Included with seal kit, 309787A1

1шт.

7

309784A1

VALVE

solenoid, two way, normally open, component parts not serviced separately

1шт.

Included with seal kit, 309787A1

1шт.

8

309790A1

VALVE

solenoid, two way, normally open, component parts not serviced separately

1шт.

Included with seal replacement kit, 149942C1

1шт.

9

309791A1

COIL

solenoid

2шт.

309787A1

SEAL PACKAGE

KIT, includes (2) O-rings and (1) backup ring which are not serviced separately, not shown, use with Ref. 2 and 5-7

5шт.

149942C1

SEAL KIT

replacement, relief valve, includes (2) O-rings and (1) backup ring which are not serviced separately, not shown, use with Ref. 3 and 8

2шт.
