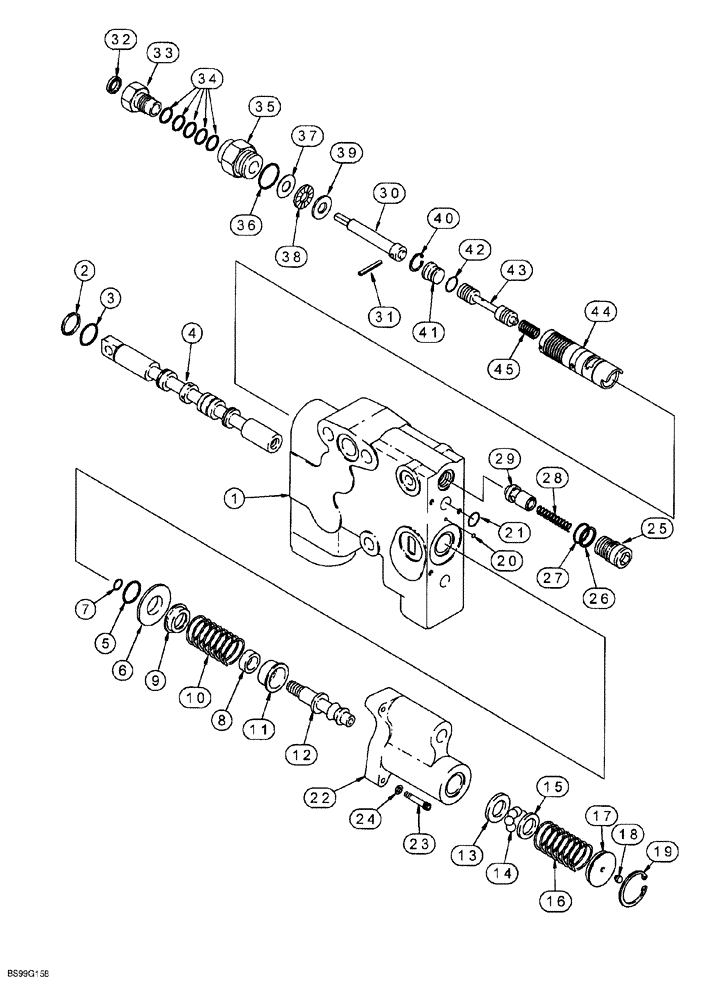

Запчасти Case 580SL (8-118) - AUXILIARY VALVE, HAND HELD SECTION (08) - HYDRAULICS

131197A1

HYD VALVE SECTION

ASSEMBLY, hand held auxiliary hydraulics, Includes: Refs. 1-45

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING section

1шт.

2

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

WIPER, shaft

1шт.

3

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

spool

1шт.

131196A1

SPOOL

ASSEMBLY, detent, Includes: Refs. 4-12

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL detent

1шт.

5

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

spool

1шт.

6

G108630

HOLDER

RETAINER O-ring

1шт.

7

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

8

1980085C1

SPACER

STOP spool

1шт.

9

G108914

SPRING CUP

SEAT spring, upper

1шт.

10

130932A1

SPRING

centering

1шт.

11

G108913

SPRING CUP

SEAT, lower

1шт.

12

307208A1

STUD

SHAFT detent, with Loctite

1шт.

13

G108912

WASHER

detent, ball

1шт.

14

211-1007

BALL,7/32" Dia

Gr 24, Chrome alloy steel

8шт.

15

G108911

WASHER

detent, ball

1шт.

16

130919A1

SPRING

detent

1шт.

17

321361A1

RETAINER

ASSEMBLY, detent, spring, Replaces: 1341975C1 retainer without O-ring, Includes: O-ring & Ref. 18

1шт.

321360A1

O-RING,0.8mm Thk x 27mm ID, Cl 5, 75 Duro

retainer

1шт.

18

G107780

VALVE, CHECK

PLUG

1шт.

19

100-21118

SNAP RING,1.188", Int, #118

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

22

129391A1

CAP

HOUSING detent

1шт.

23

61-31016

HEX SOC SCREW,#10 - 24 x 1"

Detent housing retaining

3шт.

24

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(Flat, 7/32" x 7/16" x 3/64")

3шт.

1542563C1

KIT

ASSEMBLY, Includes: Refs. 25-29

1шт.

25

NSS

NOT SOLD SEPARAT

PLUG load check

1шт.

26

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

backup

1шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

28

1994581C1

SPRING,6.1mm OD x 31.1mm L

load check

1шт.

29

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

PLUG

1шт.

1343791C2

SET OF PARTS

KIT flow control adjustment, includes an instruction sheet, Includes: Refs. 30-39

1шт.

30

1980302C2

ROD

ASSEMBLY, adjusting, flow control, Includes: Ref. 31

1шт.

31

38-1812

LOCK PIN,1/8" x 3/4", Slotted

1/8" x 3/4", Slotted

1шт.

32

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

oil, adjusting rod

1шт.

33

1980227C1

NUT

NUT compression

1шт.

34

1986628C1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 ID x 9/16 inch wide, rod seal

5шт.

35

1980226C1

PLUG

adjusting, flow

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

G108956

RACE,9.58mm ID x 20.37mm OD x 0.81mm Thk

bearing, thin

1шт.

38

F13537

THRUST BEARING

thrust

1шт.

39

G108957

RACE,9.58mm ID x 20.37mm OD x 1.59mm Thk

bearing, thick

1шт.

131197A1

HYD VALVE SECTION

ASSEMBLY, hand held auxiliary hydraulics

1шт.

1994677C1

SLEEVE ASSY

control, Includes: Refs. 40-44

1шт.

40

100-2156

SNAP RING,0.562", Int, #56

1шт.

41

1346312C2

PLUG

sleeve

1шт.

42

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

43

NSS

NOT SOLD SEPARAT

SPOOL flow control, select fit with Ref. 44 sleeve, must retain together

1шт.

44

NSS

NOT SOLD SEPARAT

SLEEVE flow control

1шт.

45

1957887C1

SPRING

control, flow control, not included in sleeve assembly

1шт.
