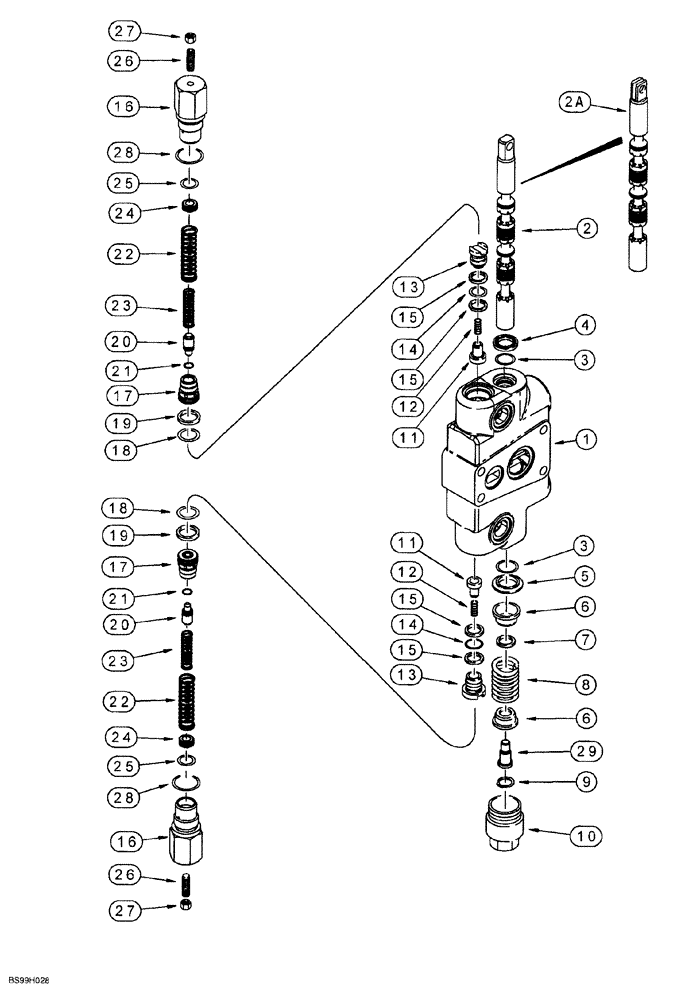

Запчасти Case 580SL (8-114) - BACKHOE CONTROL VALVE, OPTIONS, AUXILIARY HYDRAULICS SECTION (08) - HYDRAULICS

294198A1

HYD VALVE SECTION

ASSEMBLY, options, auxiliary hydraulics, with circuit relief valves, spool eye not color coded, with male spool eye, if used, Includes: Ref. 1-29

1шт.

333417A1

HYD VALVE SECTION

ASSEMBLY, options, auxiliary hydraulics, with circuit relief valves, spool eye color coded, Includes: Refs. 1-29

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, P/N 294198A1 bucket section

1шт.

2a

NSS

NOT SOLD SEPARAT

SPOOL, P/N 333417A1 bucket section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool

2шт.

Included with seal kit, 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

1шт.

Included with seal kit, 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G106410

SPACER

spool, 1/16 inch thick, P/N 294198A1 section, if used

1шт.

8

1994596C1

SPRING

centering, purple, 2-15/16 inch free length, spool

1шт.

9

100-1647

SNAP RING,#47, Ext

Spool end, if used

1шт.

10

G33080

CAP

centering spring, spool end

1шт.

1346219C3

VALVE, CHECK

ASSEMBLY, load, hollow poppet pin, Includes: Refs. 11-15

2шт.

11

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

hollow poppet pin with orifice, load check

1шт.

12

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

13

1343708C1

PLUG

load check

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug

1шт.

Included with seal kit, 1346105C2

1шт.

15

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Included with seal kit, 1346105C2

1шт.

G109391

VALVE

ASSEMBLY, circuit relief, 3200 psi, options section, used in production, order P/N G109449 kit, Includes: Refs. 16-28

2шт.

Included with service kit, G109449

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

17

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat

1шт.

Included with seal kit, 1346105C2

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Included with seal kit, 1346105C2

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING, 1/2 ID x 1/16 inch wide

1шт.

26

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

Headless, oval point

1шт.

27

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Housing

1шт.

Included with seal kit, 1346105C2

1шт.

29

G106409

SEAT

SCREW spool end, use with P/N 345-49 Loctite

1шт.

1346105C2

SEAL KIT

Includes: Refs. 3, 4, 14, 15, 18, 19, and 28, plus additional O-rings not required for this application

1шт.

G109449

KIT

service, for P/N G109391 circuit relief valve, kit includes an instruction sheet and P/N G109447 circuit relief valve (Refs. 16-28) which is the same as P/N G109391 except with a different pressure setting

1шт.
