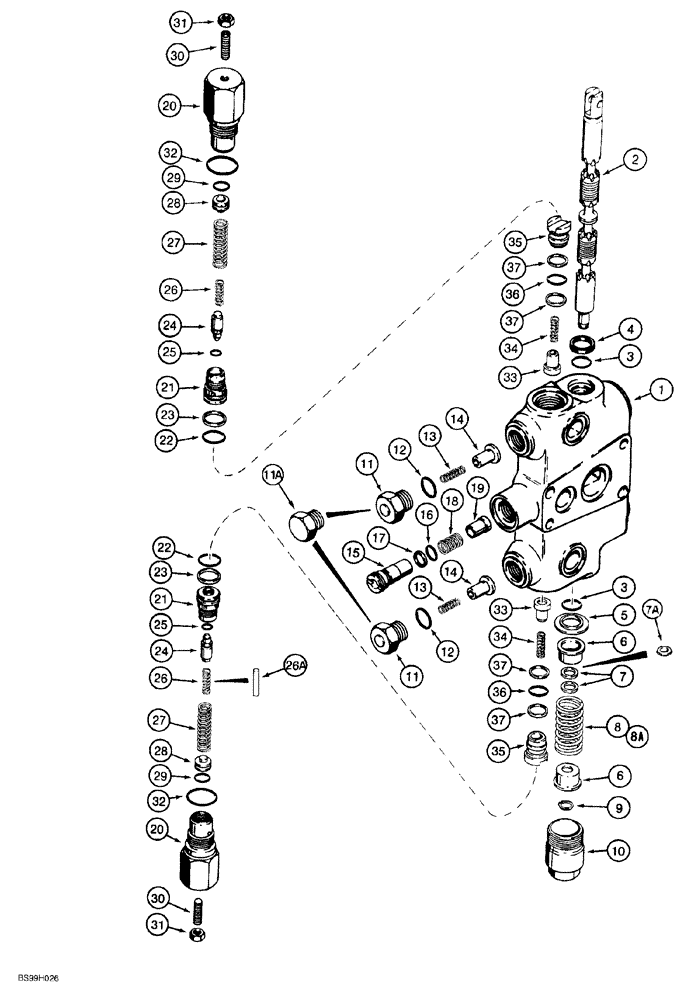

Запчасти Case 580SL (8-108) - BACKHOE CONTROL VALVE, SWING SECTIONS (08) - HYDRAULICS

241088A3

HYD VALVE SECTION

ASSEMBLY, swing, uses Ref. 8 spring, Includes: 1-37, foot swing control valves, with circuit relief and anticavitation valves, without color coded spool eye, if used

1шт.

241088A3

HYD VALVE SECTION

ASSEMBLY, swing, uses Ref. 8 spring, Includes: 1-37, foot swing control valves, with circuit relief and anticavitation valves, without color coded spool eye, if used

1шт.

241088A4

HYD VALVE SECTION

ASSEMBLY, swing, uses Ref. 8 spring, Includes: 1-37, foot swing control valves, with circuit relief and anticavitation valves, with orange color coded spool eye, if used

1шт.

243145A3

HYD VALVE SECTION

ASSEMBLY, swing, uses Ref. 8A spring, Includes: Ref. 1-37, hand swing control valves, with circuit relief and anticavitation valves, without color coded spool eye, if used

1шт.

243145A4

HYD VALVE SECTION

ASSEMBLY, swing, uses Ref. 8A spring, Includes: Ref. 1-37, hand swing control valves, with circuit relief and anticavitation valves, with orange color coded spool eye, if used

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, swing section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL swing section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool

2шт.

Included with seal kit, 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Included with seal kit, 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G106410

SPACER

spool, 1/16 inch thick, P/N's 241088A3 or 243145A3 section

2шт.

7a

332753A1

SPACER

spool, 1/8 inch thick, P/N's 241088A4 or 243145A4 section

1шт.

8

1986722C1

SPRING

centering, 2-1/4 inch free length, spool, used in P/N's 241088A3 or 241088A4 swing section

1шт.

8a

1994596C1

SPRING

centering, purple, 2-15/16 inch free length, spool, used in P/N's 243145A3 or 243145A4 swing section

1шт.

9

100-1647

SNAP RING,#47, Ext

Spool end

1шт.

10

G33080

CAP

centering spring, spool end

1шт.

1346221C3

VALVE

ASSEMBLY, anticavitation replaces P/N 1346221C2, Includes: Refs. 11-14

2шт.

11

G34937

PLUG

P/N 1346221C2 anticavitation valve, raised head

1шт.

11a

332473A1

PLUG,Hex, 7/8" - 14

P/N 1346221C3 anticavitation valve, smooth head

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Included with seal kit, 1346105C2

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation valve

1шт.

14

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

anticavitation valve

1шт.

1346222C1

VALVE

ASSEMBLY check, Includes: Refs. 15-17

1шт.

15

G109964

HOUSING

valve check

1шт.

16

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

Included with seal kit, 1346105C2

1шт.

17

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

backup

1шт.

Included with seal kit, 1346105C2

1шт.

18

G109971

SPRING

valve check

1шт.

19

1978068C1

VALVE POPPET

check

1шт.

1346105C2

SEAL KIT

Includes: Refs. 3, 4, 12, 16 and 17, plus additional O-rings not required for this application

1шт.

G107786

VALVE, PRESSURE RELI

EF ASSEMBLY, circuit relief, 2750 psi, swing section, color coded yellow, used in production, Includes: Ref. 20-32, order P/N G109449 kit for service, if used

2шт.

Included with service kit, G109449

1шт.

G110253

VALVE, PRESSURE RELI

EF ASSEMBLY, circuit, 2600 psi, swing section, color coded orange, used in production, Includes: Ref. 20-32, order P/N G109448 kit for service, if used

2шт.

Included with service kit, G109448

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING, circuit relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Included with seal kit, 1346105C2

1шт.

23

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Included with seal kit, 1346105C2

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING relief, inner, P/N G107786 circuit relief valve only

1шт.

26a

NSS

NOT SOLD SEPARAT

PIN stop, P/N G110253 circuit relief valve only

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

28

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

30

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

Headless, oval point

1шт.

31

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Housing

1шт.

Included with seal kit, 1346105C2

1шт.

1346219C3

VALVE, CHECK

ASSEMBLY, load check, hollow poppet pin, Includes: Refs. 33-37

2шт.

33

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

hollow poppet pin with orifice, load check

1шт.

34

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

35

1343708C1

PLUG

load check

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Included with seal kit, 1346105C2

1шт.

37

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Included with seal kit, 1346105C2

1шт.

G109448

KIT

service, for G110253 circuit relief valve, kit includes an instruction sheet and P/N G109446 circuit relief valve, Refs. 20-25, which is the same as P/N G110253 except with a different pressure setting

1шт.
