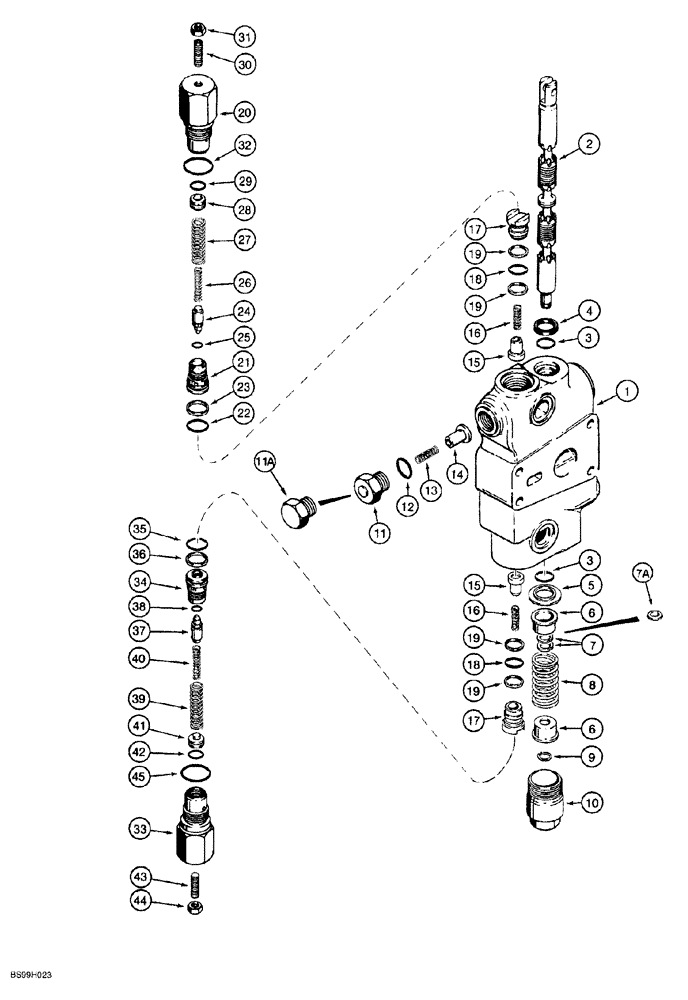

Запчасти Case 580SL (8-104) - BACKHOE CONTROL VALVE, BOOM SECTION (08) - HYDRAULICS

144321A5

HYD VALVE SECTION

ASSEMBLY, boom, with relief valves and anticavitation valve, without color coded spool eye, if used, Includes: Refs. 1-45

1шт.

144321A6

HYD VALVE SECTION

ASSEMBLY, boom, with circuit relief valves and anticavitation valve, with green color code, Includes: Refs. 1-45

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, boom section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, boom section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool

2шт.

Included with seal kit, 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

1шт.

Included with seal kit, 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G106410

SPACER

spool, 1/16 inch thick, P/N 144321A5 section only

2шт.

7a

332753A1

SPACER

spool, 1/8 inch thick, P/N 144321A6 section only

1шт.

8

1994596C1

SPRING

centering, purple, 2-15/16 inch free length, spool

1шт.

9

100-1647

SNAP RING,#47, Ext

Spool end

1шт.

10

G33080

CAP

centering spring, spool end

1шт.

1346221C3

VALVE

ASSEMBLY, anticavitation, replaces P/N 1346221C2, Includes: Refs. 11-14

1шт.

11

G34937

PLUG

P/N 1346221C2 anticavitation valve, raised head

1шт.

11a

332473A1

PLUG,Hex, 7/8" - 14

P/N 1346221C3 anticavitation valve, smooth head

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Included with seal kit, 1346105C2

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation valve

1шт.

14

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

anticavitation valve

1шт.

1346219C3

VALVE, CHECK

ASSEMBLY, load check, hollow poppet pin, Includes: Refs. 15-19

2шт.

15

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

hollow poppet pin with orifice, load check

1шт.

16

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

17

1343708C1

PLUG

load check

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug

1шт.

Included with seal kit, 1346105C2

1шт.

19

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Included with seal kit, 1346105C2

1шт.

G109391

VALVE

ASSEMBLY, circuit relief, 3200 psi, upper, boom section, used in production, order P/N G109449 kit for service, Includes: Refs. 20-32

1шт.

Included with service kit, G109449

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING, circuit relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT, circuit relief valvem

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat

1шт.

Included with seal kit, 1346105C2

1шт.

23

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Included with seal kit, 1346105C2

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

28

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

30

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

Headless, oval point

1шт.

31

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Housing

1шт.

Included with seal kit, 1346105C2

1шт.

1346023C1

VALVE

ASSEMBLY, circuit relief, lower, boom section, Includes: Ref. 33-45, used in production, order P/N G110077 kit for service, continued from previous Figure

1шт.

Included with service kit, G110077

1шт.

33

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

34

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat

1шт.

Included with seal kit, 1346105C2

1шт.

36

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Included with seal kit, 1346105C2

1шт.

37

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

39

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

40

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

41

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

42

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

43

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

set, hex socket headless, 5/16 NF x 1-1/4 inch, oval point

1шт.

44

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

1шт.

45

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Housing

1шт.

Included with seal kit, 1346105C2

1шт.

G109449

KIT

service, for G109391 circuit relief valve, kit includes an instruction sheet and P/N G109447 circuit relief valve, Refs. 20-32, which is the same as P/N G109391 except with a different pressure setting

1шт.

G110077

KIT

service, for 1346023C1 circuit relief valve, kit includes an instruction sheet and P/N G110078 circuit relief valve, Refs. 33-45, which is the same as P/N 1346023C1 except with a different pressure setting

1шт.

1346105C2

SEAL KIT

Includes: Refs. 3, 4, 12, 18, 19, 22, 23, 32, 35, 36 and 45, plus additional O-rings not required for this application

1шт.
