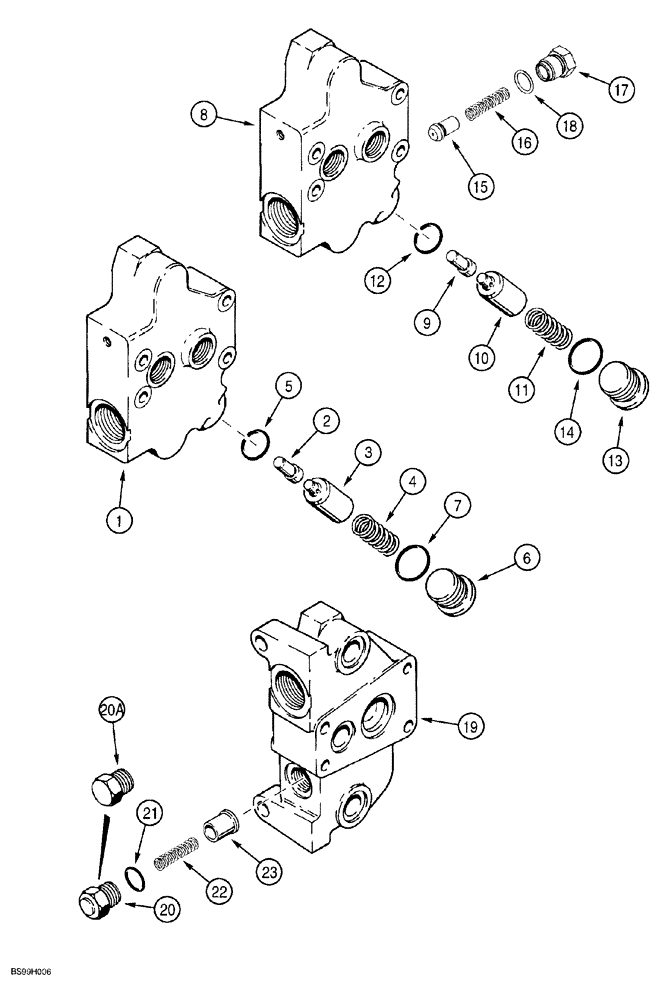

Запчасти Case 580SL (8-097A) - BACKHOE CONTROL VALVE, INLET AND OUTLET SECTIONS (08) - HYDRAULICS

113248A2

HYD VALVE SECTION

ASSEMBLY, outlet, with hex socket head plug, no longer available, order P/N 113248A3, Includes: Refs. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD section body

1шт.

2

G108902

PISTON

regeneration sensing, no longer available, order P/N 328418A1 kit

1шт.

3

G34586

SPOOL,22mm OD x 59.87mm L

regeneration, no longer available, order P/N 328418A1 kit

1шт.

4

G33112

SPRING

regeneration spool, no longer available, order P/N 328418A1 kit

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

6

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Includes Ref 7

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

113248A3

HYD VALVE SECTION

ASSEMBLY, outlet, with hex plug, without check valve, if used, Includes: Refs. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD section bosy

1шт.

2

321735A1

PISTON

regeneration sensing

1шт.

Included with regeneration kit, 328418A1

1шт.

3

321350A1

SPOOL

regeneration

1шт.

Included with regeneration kit, 328418A1

1шт.

4

327148A1

SPRING

regeneration spool

1шт.

Included with regeneration kit, 328418A1

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

Included with regeneration kit, 328418A1

1шт.

6

327150A1

PLUG

hex head

1шт.

Included with regeneration kit, 328418A1

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

Included with regeneration kit, 328418A1

1шт.

327867A1

HYD VALVE SECTION

ASSEMBLY, outlet, with hex plug and with check valve, if used, Includes: Refs. 8-18

1шт.

8

NSS

NOT SOLD SEPARAT

MANIFOLD section body

1шт.

9

321735A1

PISTON

regeneration sensing

1шт.

Included with regeneration kit, 328418A1

1шт.

10

321350A1

SPOOL

regeneration

1шт.

Included with regeneration kit, 328418A1

1шт.

11

327148A1

SPRING

regeneration spool

1шт.

Included with regeneration kit, 328418A1

1шт.

12

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

Included with regeneration kit, 328418A1

1шт.

365750A1

PLUG

ASSEMBLY, regeneration, Includes: Ref. 13 & 14

1шт.

13

327150A1

PLUG

hex head

1шт.

Included with regeneration kit, 328418A1

1шт.

14

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

Included with regeneration kit, 328418A1

1шт.

15

283417A1

VALVE POPPET,7.14mm ID x 11.68mm OD x 25.4mm L

check valve

1шт.

16

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

check valve

1шт.

17

293787A1

PLUG,ORB

hex, check valve, Includes: Ref. 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

328418A1

PACKAGE

KIT regeneration, service update, Includes Refs. 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 13 and 14

1шт.

1542829C1

HYD VALVE SECTION

ASSEMBLY, inlet, Includes: Refs. 19-23

1шт.

19

NSS

NOT SOLD SEPARAT

MANIFOLD section body

1шт.

1346221C3

VALVE

ASSEMBLY anticavitation, order Refs. 9-12, Replaces: P/N 1346221C2, Includes: Refs. 20-23

1шт.

20

G34937

PLUG

check valve, P/N 1346221C2 valve, raised head

1шт.

20a

332473A1

PLUG,Hex, 7/8" - 14

check valve, P/N 1346221C3 valve, smooth head

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

check valve

1шт.

23

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

check

1шт.
