(8-090) - BACKHOE CONTROL VALVES, MODELS WITHOUT EXTENDABLE DIPPER, W/AUX. HYD. - P/N 243139A3 & 243141A3

Запчасти Case 580SL (8-090) - BACKHOE CONTROL VALVES, MODELS WITHOUT EXTENDABLE DIPPER, W/AUX. HYD. - P/N 243139A3 & 243141A3 (08) - HYDRAULICS

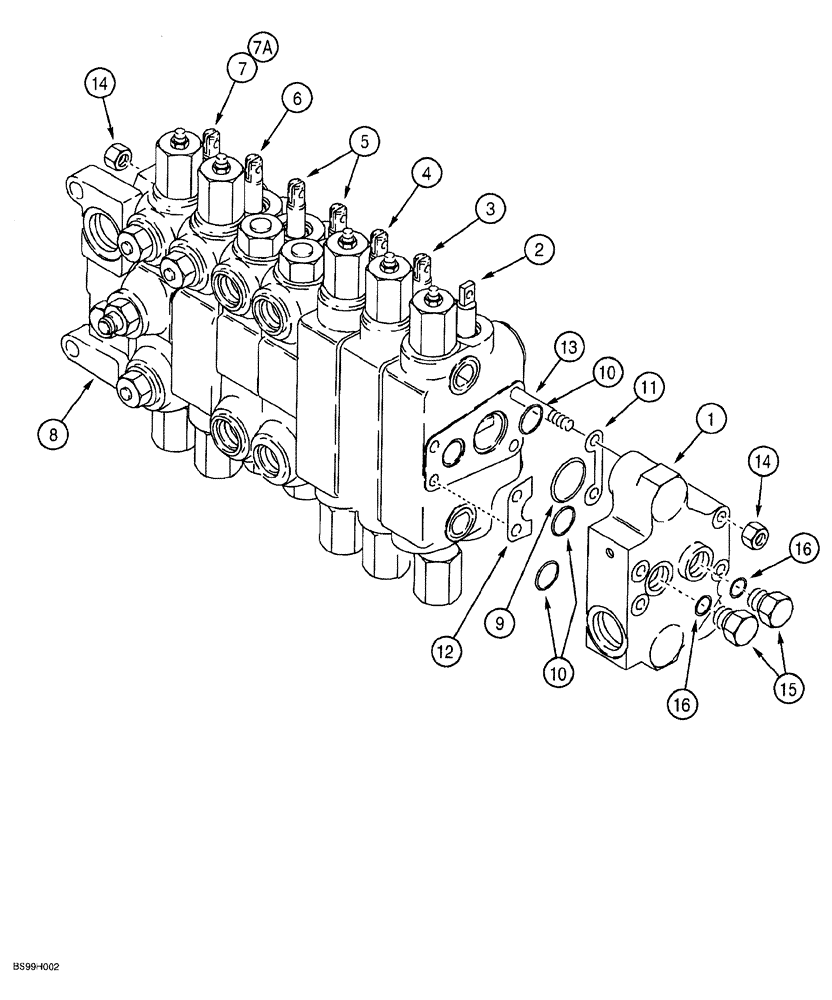

Схема запчастей Case 580SL - (8-090) - BACKHOE CONTROL VALVES, MODELS WITHOUT EXTENDABLE DIPPER, W/AUX. HYD. - P/N 243139A3 & 243141A3 (08) - HYDRAULICS
1
9
12
16
5
13
16
14
11
3
7
4
2
8
6
14
7a
10
15
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

243139A3

DISTRIBUTOR

VALVE ASSEMBLY, backhoe control, Includes: Ref. 1-16, 7 spool, foot swing, Replaces: P/N 243139A2, without check valve in outlet section; w/male spool eye in options section, no longer available, order 333578A1

1шт.

Boom and swing section spool eyes are not color coded, without check valve in outlet section; with male spool eye in options section

1шт.

243141A3

DISTRIBUTOR

VALVE ASSEMBLY, backhoe control, Includes: Ref. 1-16, 7 spool, hand swing, Replaces: P/N 243141A2, no longer available, order 333578A1

1шт.

Boom and swing section spool eyes are not color coded, without check valve in outlet section; with male spool eye in options section

1шт.

1

113248A3

HYD VALVE SECTION

ASSEMBLY, outlet, with hex plug, without check valve, Replaces: P/N 113248A2 section with hex

1шт.

2

294198A1

HYD VALVE SECTION

ASSEMBLY, options, male spool eye, auxiliary hydraulics, See Figure 8-114

1шт.

3

129864A4

HYD VALVE SECTION

ASSEMBLY, bucket, See Figure 8-98

1шт.

4

136610A5

HYD VALVE SECTION

ASSEMBLY, dipper, See Figure 8-100

1шт.

5

253989A2

HYD VALVE SECTION

ASSEMBLY, stabilizer, left hand and right hand, See Figure 8-102

2шт.

6

144321A5

HYD VALVE SECTION

ASSEMBLY, boom, See Figure 8-104 and 8-106

1шт.

7

241088A3

HYD VALVE SECTION

ASSEMBLY, swing, foot swing control valve, See Figure 8-108 and 8-110

1шт.

7a

243145A3

HYD VALVE SECTION

ASSEMBLY, swing, hand swing control valve, See Figure 8-108 and 8-110

1шт.

8

1542829C1

HYD VALVE SECTION

ASSEMBLY, inlet, See Figure 8-97A

1шт.

9

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports

8шт.

Includes seal kit, 1346107C2

1шт.

10

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small

24шт.

Includes seal kit, 1346107C2

1шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section

8шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section

8шт.

13

G108899

ROD

tie, 3/8 NC x 18-15/16 inch

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

15

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

1346107C2

SEAL KIT

seal, Includes Refs. 9 and 10, plus additional O-rings not required for this application

1шт.
