(8-089A) - BACKHOE CONTROL VALVES, MODELS WITHOUT EXTENDABLE DIPPER, W/O AUX. HYD. - P/N 243135A3 & 243136A3

Запчасти Case 580SL (8-089A) - BACKHOE CONTROL VALVES, MODELS WITHOUT EXTENDABLE DIPPER, W/O AUX. HYD. - P/N 243135A3 & 243136A3 (08) - HYDRAULICS

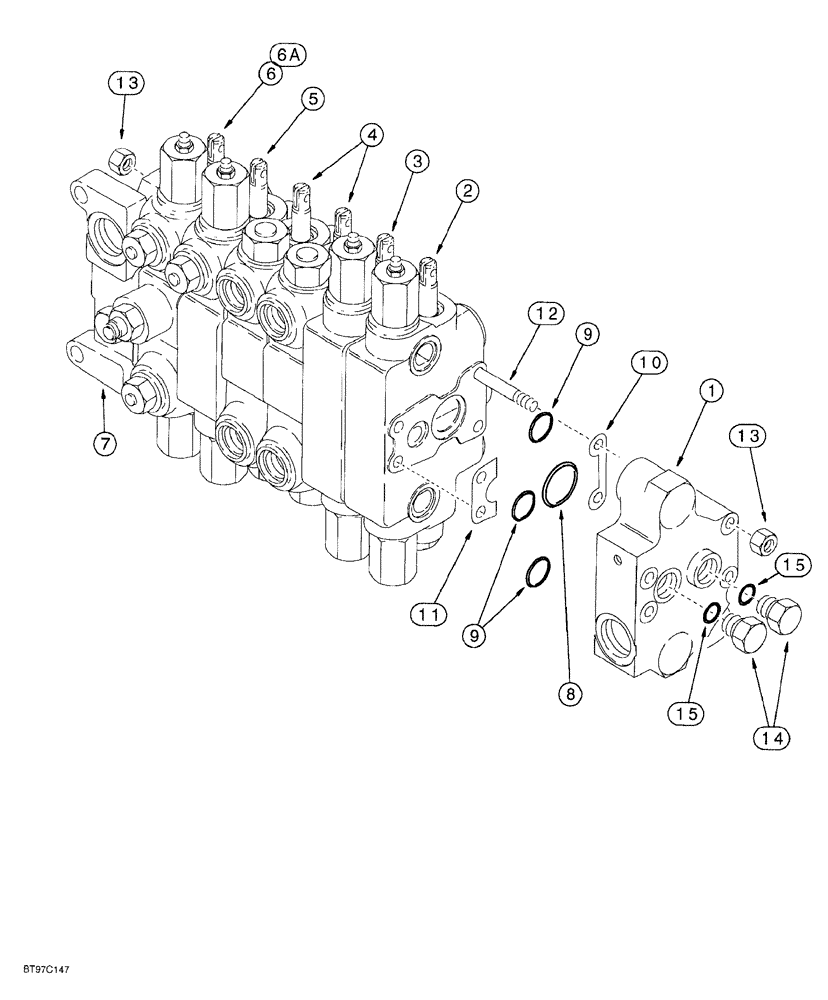

Схема запчастей Case 580SL - (8-089A) - BACKHOE CONTROL VALVES, MODELS WITHOUT EXTENDABLE DIPPER, W/O AUX. HYD. - P/N 243135A3 & 243136A3 (08) - HYDRAULICS
13
3
6a
15
4
13
1
11
5
9
12
15
9
10
2
6
7
14
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

243135A3

VALVE, CONTROL

ASSEMBLY, backhoe control, Includes: Ref. 1-15, 6 spool, foot swing, boom and swing section spool eyes are color coded green and orange, respectively; with check valve in outlet section; if used

1шт.

243136A3

VALVE, CONTROL

ASSEMBLY, backhoe control, Includes: Ref. 1-15, 6 spool, hand swing, boom and swing section spool eyes are color coded green and orange, respectively; with check valve in outlet section; if used

1шт.

1

327867A1

HYD VALVE SECTION

ASSEMBLY, outlet, with hex plug, with check valve, See Figure 8-96

1шт.

2

129864A4

HYD VALVE SECTION

ASSEMBLY, bucket, See Figure 8-98

1шт.

3

136610A5

HYD VALVE SECTION

ASSEMBLY, dipper, See Figure 8-100

1шт.

4

253989A3

VALVE SECTION

ASSEMBLY, stabilizer, left hand and right hand, See Figure 8-102

2шт.

5

144321A6

HYD VALVE SECTION

ASSEMBLY, boom, See Figure 8-104 and 8-106

1шт.

6

241088A4

HYD VALVE SECTION

ASSEMBLY, swing, foot swing control valve, See Figure 8-108 and 8-110

1шт.

6a

243145A4

HYD VALVE SECTION

ASSEMBLY, swing, hand swing control valve, See Figure 8-108 and 8-110

1шт.

7

1542829C1

HYD VALVE SECTION

ASSEMBLY, inlet, See Figure 8-97A

1шт.

8

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports

7шт.

Includes seal kit, 1346107C2

1шт.

9

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small

21шт.

Includes seal kit, 1346107C2

1шт.

10

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section

7шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section

7шт.

12

G108900

STUD

tie, 3/8 NC x 16-15/16 inch

4шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

14

86512512

PLUG,7/8" - 14 ORB

Outlet section, Incl. Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

1346107C2

SEAL KIT

seal, Includes: Refs. 8 and 9, plus additional O-rings not required in this application

1шт.
