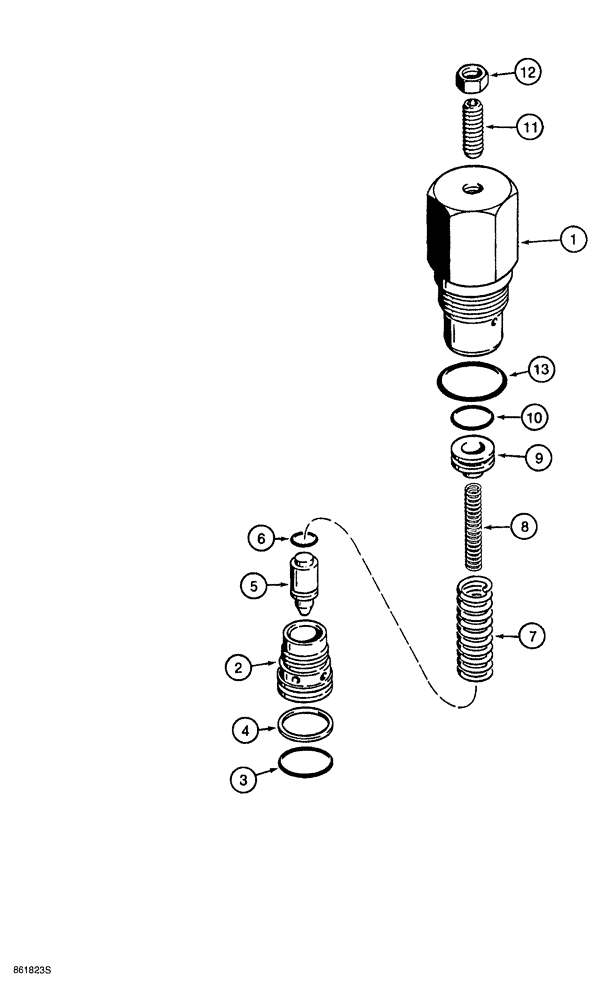

Запчасти Case 580SL (8-086) - LOADER CONTROL VALVE, BUCKET SECTION CIRCUIT RELIEF VALVE (08) - HYDRAULICS

G109391

VALVE

ASSEMBLY, circuit relief, 3200 psi, one piece cap, used in production, Includes: Refs. 1-13

2шт.

Order G109449 kit for service

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

11

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

Headless, oval point

1шт.

12

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

G109449

KIT

service, for P/N G109391 circuit relief valve, kit includes an instruction sheet and P/N G109447 circuit relief valve, Refs. 1-13, which is the same as P/N G109391 except with a different pressure setting

1шт.
