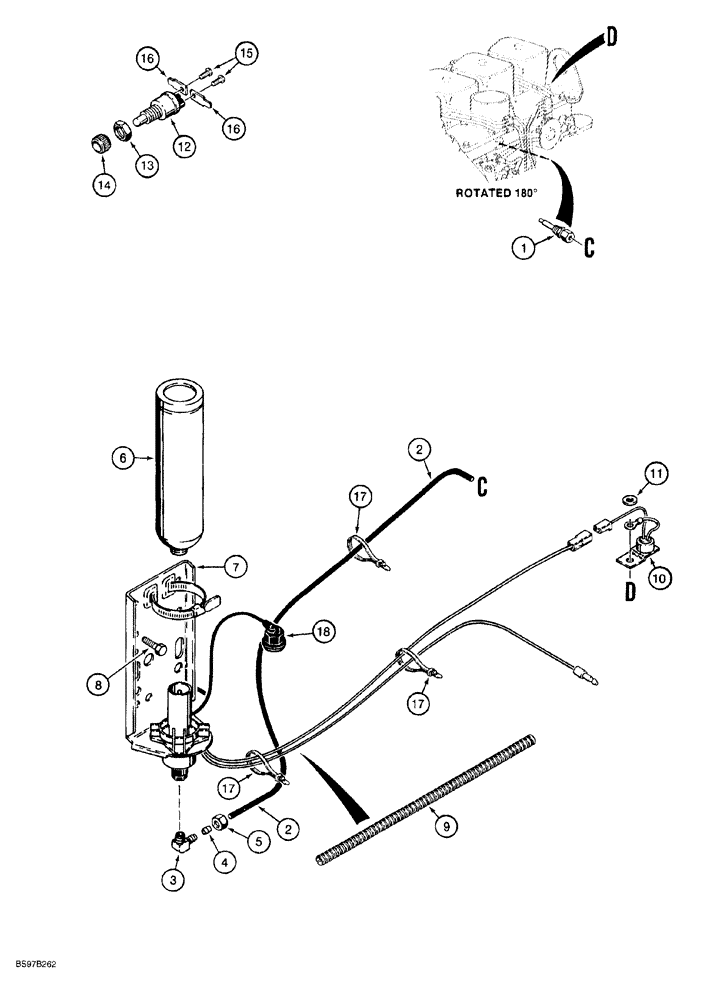

Запчасти Case 580SL (2-012) - COLD START SYSTEM (02) - ENGINE

1

A189154

JET

NOZZLE ASSEMBLY, cold start injector, .008 dual orifice nozzle, component parts not serviced separately

1шт.

2

D145367

TUBE

762 mm (30 inch) long, cut from P/N L60539X bulk tube, valve to injector nozzle, see below

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. Ref 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

Tapered

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

hex, 1/8" tube OD

1шт.

6

A171940

CYLINDER

starting fluid, ether

1шт.

7

A172116

VALVE

ASSEMBLY cold start, 3 cc, starting fluid injection, component parts not serviced separately

1шт.

8

276-24916

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

self tapping, hex head, 3/8 NC x 1 inch

2шт.

9

D128402

PLASTIC-RUBBER TUBE

wire guard, 380 mm (15 inch) long

1шт.

10

A187923

SWITCH

SWITCH - temperature, circuit breaking, includes lead wires, uses existing intake manifold mounting

1шт.

11

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

L72776

SWITCH

push button, cold start, must also order (2) P/N L59682 blade terminals (Ref. 16), Includes: Ref. 12-15

1шт.

12

NSS

NOT SOLD SEPARAT

SWITCH - cold start

1шт.

13

H275784

JAM NUT

hex, special

1шт.

14

D73741

NUT

hex, special

1шт.

15

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

machine, round head slotted, No. 10 NF x 1/4 inch

2шт.

16

L59682

TERMINAL CONNECTOR

blade, straight, use with P/N L72776 switch

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

18

254729A1

SET OF PARTS

KIT cap and cord, 1 inch threaded cap

1шт.

L60539X

TUBE

bulk, nylon, 3 (1/8) ID x 4267 mm (168 inch) long

1шт.
