(8-082) - LOADER CONTROL VALVE, OUTLET SECTION

Запчасти Case 580SL (8-082) - LOADER CONTROL VALVE, OUTLET SECTION (08) - HYDRAULICS

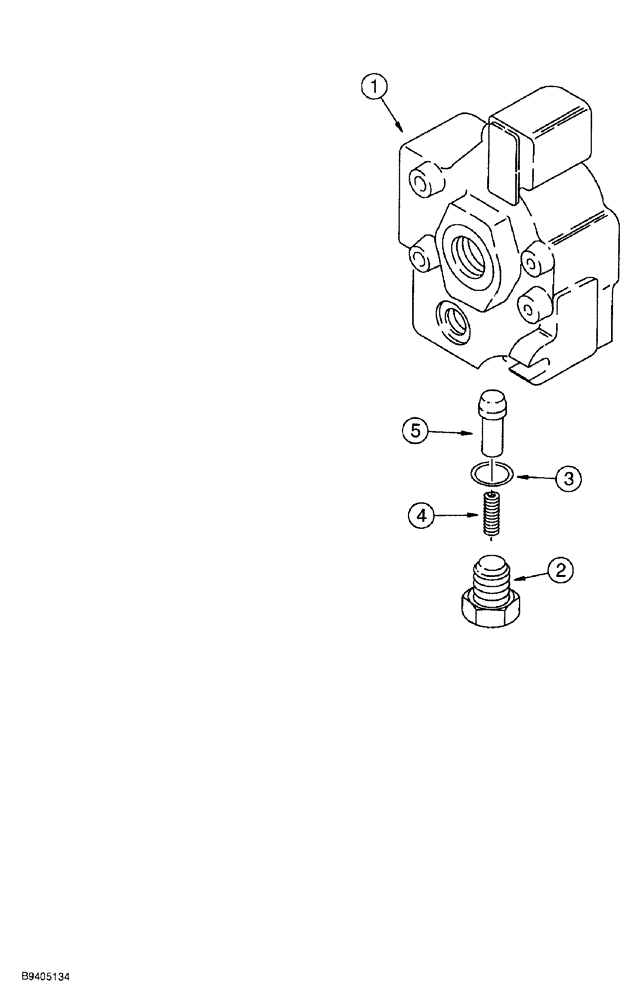

Схема запчастей Case 580SL - (8-082) - LOADER CONTROL VALVE, OUTLET SECTION (08) - HYDRAULICS
1
2
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

132004A2

HYD VALVE SECTION

ASSEMBLY, outlet, Includes: Refs. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING outlet section

1шт.

2

293787A1

PLUG,ORB

load check, replaces P/N G109644

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

G109646

SPRING,Compression, 6.35mm OD x 38.35mm L

load check

1шт.

5

283417A1

VALVE POPPET,7.14mm ID x 11.68mm OD x 25.4mm L

load check

1шт.
