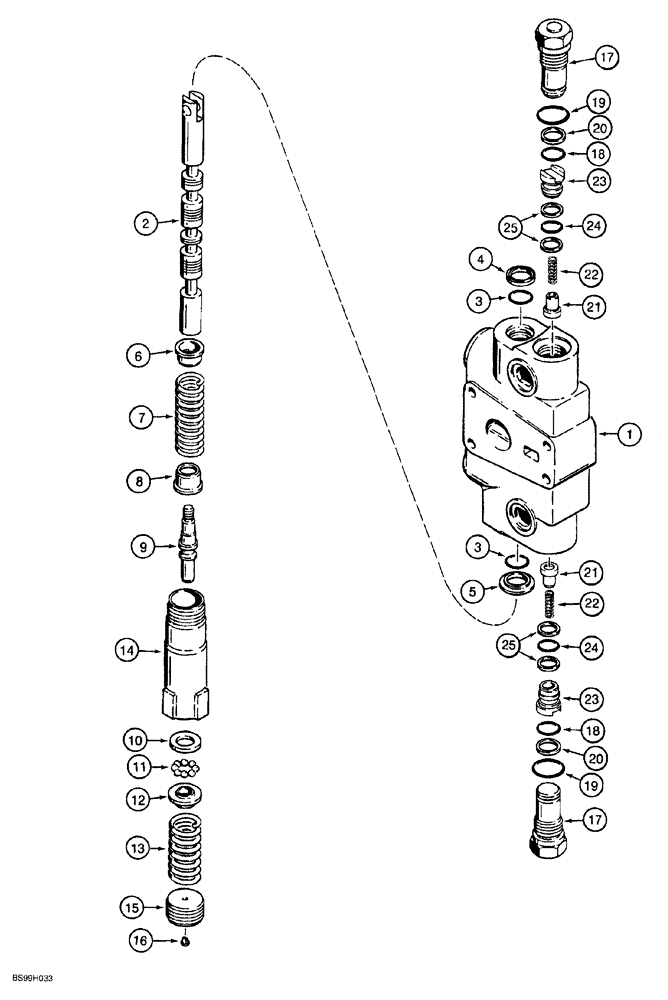

Запчасти Case 580SL (8-081A) - LOADER CONTROL VALVE, LIFT SECTION WITH MANUAL DETENT - P/N 328444A1 (08) - HYDRAULICS

328444A1

VALVE SECTION

ASSEMBLY, lift, with manual detent, female clevis type spool eye, 328495A1, 328495A2, 328496A1 or 328496A2 valve, Includes: Ref. 1-25

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, lift section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, lift section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool

2шт.

Part of seal kit 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Part of seal kit 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring, upper, small

1шт.

7

1986612C1

SPRING,Compression, 28.575mm OD x 72.74mm L

centering, spool

1шт.

8

G106395

RETAINER,16mm ID, 27.9mm OD

SEAT centering spring, lower, large

1шт.

9

G106396

SHAFT,74.68mm L

detent, Replaces: 307215A1 shaft used in production

1шт.

10

G109127

WASHER,17.4mm ID x 28.9mm OD x 3.96mm Thk, MS450

detent, ball retainer

1шт.

11

211-1009

BALL

chrome alloy steel, 9/32 inch, grade 24

8шт.

12

G106398

RETAINER,16.76mm ID x 29.21mm OD x 6.48mm Thk

ball stop

1шт.

13

1986568C1

SPRING,Compression, 31.24mm OD x 45.64mm L

detent

1шт.

14

G106425

HOUSING,1-3/8" - 18 x 1-3/8" - 18

detent

1шт.

15

G109384

PLUG,3/8" - 18

detent housing

1шт.

16

G107780

VALVE, CHECK

PLUG, detent

1шт.

G33122

PLUG,ORB

ASSEMBLY, load check valve port, Includes: Refs. 17-20

2шт.

17

NSS

NOT SOLD SEPARAT

PLUG load check valve

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of seal kit 1346105C2

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of seal kit 1346105C2

1шт.

20

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

Part of seal kit 1346105C2

1шт.

1346219C3

VALVE, CHECK

ASSEMBLY, load check, hollow poppet pin, Includes: Refs. 21-25

2шт.

21

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

hollow poppet pin with orifice, load check

1шт.

22

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

23

1343708C1

PLUG

load check

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug

1шт.

Part of seal kit 1346105C2

1шт.

25

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of seal kit 1346105C2

1шт.

1346105C2

SEAL KIT

Includes: Refs. 3, 4, 18, 19, 20, 24 and 25, plus additional O-rings not required for this application

1шт.
