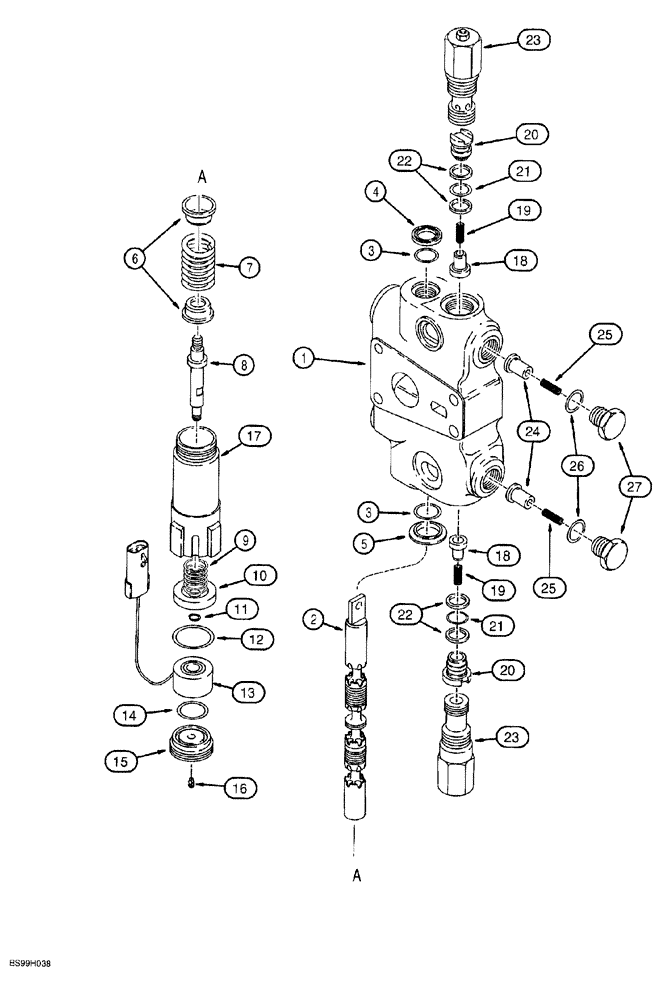

Запчасти Case 580SL (8-078) - LOADER CONTROL VALVE, BUCKET SECTION, WITH MAGNETIC DETENT AND CIRCUIT RELIEF VALVE - P/N 302964A1 (08) - HYDRAULICS

302964A1

HYD VALVE SECTION

ASSEMBLY bucket, with magnetic detent and circuit relief valves, male type spool eye, P/N's 302965A1 or 302966A1 valve, Includes: Ref. 1-27

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL bucket section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool

2шт.

Part of seal kit 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Part of seal kit 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

302326A1

SPRING,Compression, 28.067mm OD x 72.41mm L

centering, spool

1шт.

8

307214A1

ROD ASSY.

SHAFT magnetic detent, with Loctite

1шт.

9

G107447

SPRING,Compression, 8.38mm OD x 8.64mm L

detent washer

1шт.

10

G109295

WASHER,6.45mm ID x 29.5mm OD x 7.92mm Thk, MS381

detent

1шт.

11

100-1125

SNAP RING,#25, Ext

Washer

1шт.

12

238-5127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

1шт.

13

120148A3

ELECTROMAGNET

with connector, Replaces: P/N 120148A2

1шт.

14

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

15

122330A1

PLUG,9/16" - 18

magnetic detent

1шт.

16

G107780

VALVE, CHECK

PLUG check, magnetic detent

1шт.

17

113787A3

BODY

HOUSING magnetic detent

1шт.

1346219C3

VALVE, CHECK

ASSEMBLY, load check, hollow poppet pin, Includes: Refs. 18-22

2шт.

18

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

hollow poppet pin with orifice

1шт.

19

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

20

1343708C1

PLUG

load check

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of seal kit 1346105C2

1шт.

22

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of seal kit 1346105C2

1шт.

23

G109391

VALVE

ASSEMBLY, circuit relief, 3200 psi, one piece cap, used in production, See Figure 8-86, order P/N G109449 circuit relief valve kit for service, See Figure 8-86 for kit

2шт.

129735A2

VALVE

ASSEMBLY, anticavitation, Includes: Refs. 24-27

2шт.

24

129698A1

VALVE POPPET

anticavitation

1шт.

25

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

129699A1

PLUG

anticavitation

1шт.

1346105C2

SEAL KIT

Includes: Refs. 21 and 22, plus additional O-rings not required for this application

1шт.
