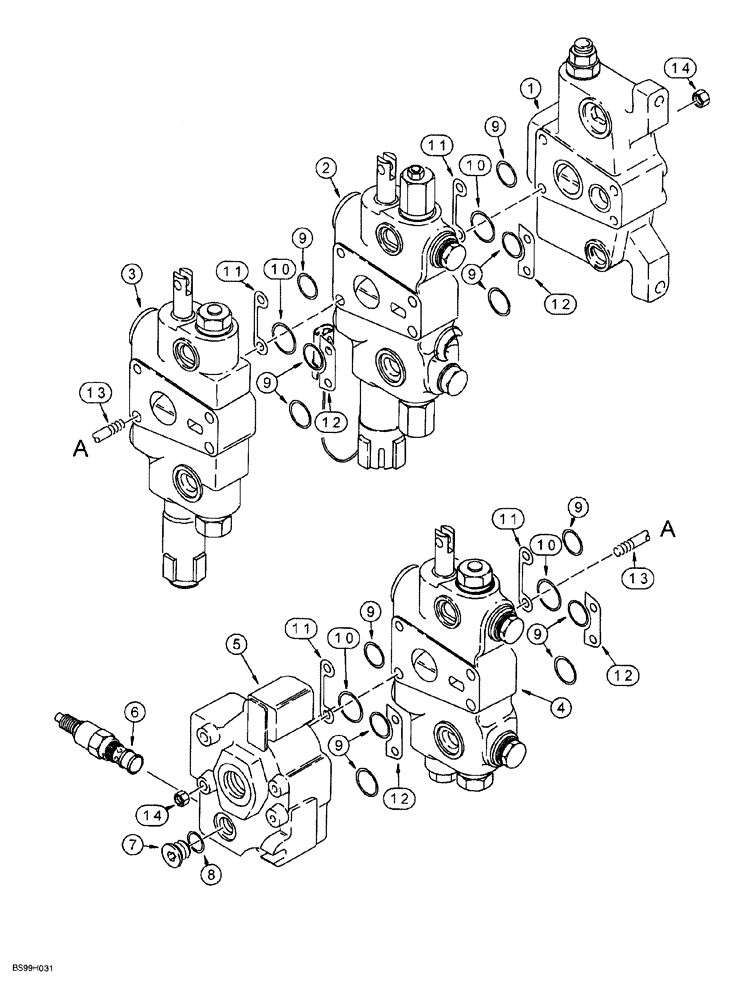

Запчасти Case 580SL (8-075A) - LOADER CONTROL VALVE, THREE SPOOL, WITH FEMALE CLEVIS TYPE SPOOL EYES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
328495A1
DISTRIBUTOR
VALVE ASSEMBLY - loader control, three-spool, with female clevis type spool eyes, with pilot relief valve in inlet section, no longer available, order P/N 328495A2 valve
1шт.
VALVE
ASSEMBLY, loader control, three spool, with female clevis type spool eyes, with pilot relief valve in inlet section, Includes: Ref. 1-14, no longer available, order P/N 328495A2 valve
1шт.
1
121736A2
VALVE SECTION
ASSEMBLY, inlet, with pilot relief valve, 328495A1 valve, See Figure 8-76
1шт.
1
364148A1
HYD VALVE SECTION
ASSEMBLY, inlet, with pilot relief plug, 328495A2 valve, not shown, See Figure 8-76
1шт.
2
328443A1
VALVE SECTION
ASSEMBLY, bucket, with magnetic detent and circuit relief valve, See Figure 8-79A
1шт.
3
328444A1
VALVE SECTION
ASSEMBLY, lift, with manual detent, See Figure 8-81A
1шт.
6
129842A2
VALVE, PRESSURE RELI
EF ASSEMBLY, main, component parts are not serviced separately, for service of external
1шт.
9
238-6119
O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro
Section ports, small
12шт.
11
G107251
SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk
Section, Port side of control valve
4шт.
12
G33965
SHIM,22.86mm OD x 0.06mm Thk
Section, Non-port side of control valve
4шт.
SEAL KIT
seal, Includes: Refs. 9 and 10, plus additional O-rings not required for this application
1шт.
