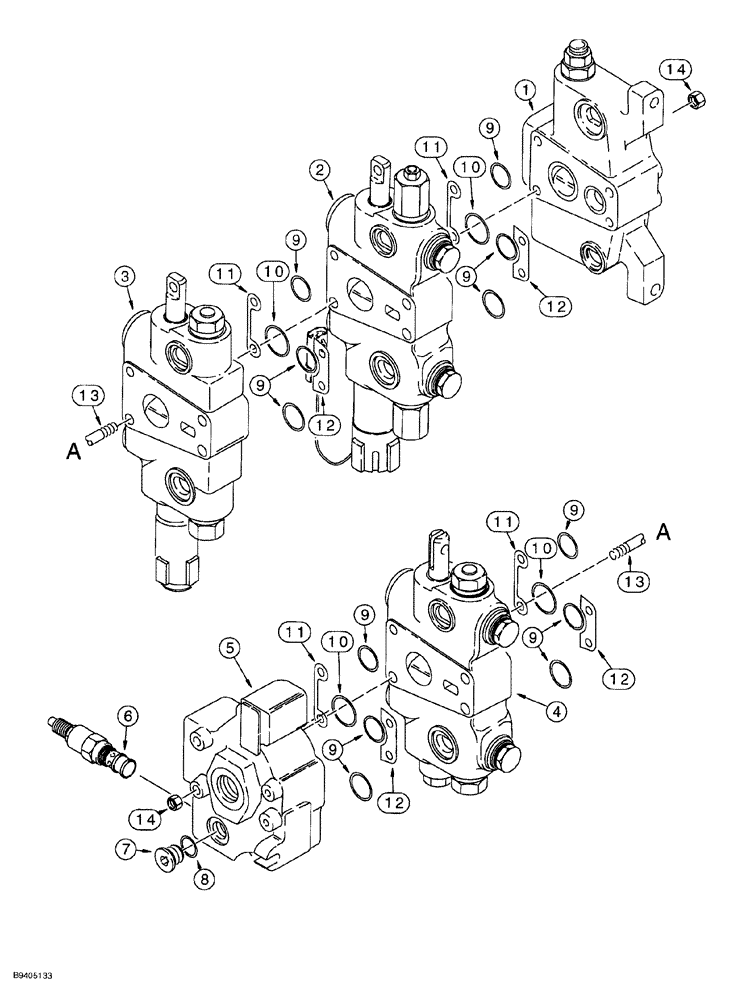

Запчасти Case 580SL (8-074) - LOADER CONTROL VALVE, WITH MALE TYPE SPOOL EYES (08) - HYDRAULICS

302966A1

VALVE

VALVE ASSEMBLY, loader control, three spool, with male type spool eyes, Includes: Ref. 1-14, no longer available, order P/N 328495A1 valve, see Fig. 8-75A

1шт.

1

121736A2

VALVE SECTION

ASSEMBLY, inlet, with pilot relief valve, See Figure 8-76

1шт.

2

302964A1

HYD VALVE SECTION

ASSEMBLY, bucket, with magnetic detent and circuit relief valve, See Figure 8-78

1шт.

3

113793A4

VALVE SECTION

ASSEMBLY, lift, with manual detent, See Figure 8-80

1шт.

4

113794A4

VALVE SECTION

ASSEMBLY, clam, all valves, See Figure 8-84

1шт.

5

132004A2

HYD VALVE SECTION

ASSEMBLY, outlet, See Figure 8-82

1шт.

6

129842A2

VALVE, PRESSURE RELI

EF ASSEMBLY, main, component parts are not serviced separately, for service of external seals order P/N G110098 seal kit

1шт.

7

278548

PLUG,Hex, 7/16"-20 ORB

Outlet section diagnostic port, Incl Ref 8

1шт.

9

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small, part of Seal Kit P/N 1346108C2

12шт.

Part of seal kit 1346108C2

1шт.

10

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports, part of seal kit P/N 1346108C2

4шт.

Part of seal kit 1346108C2

1шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve

4шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve

4шт.

13

G108805

STUD

tie, 3/8 NC x 11-3/4 inch

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

1346108C2

SEAL KIT

seal, Includes: Refs. 9 and 10, plus additional O-rings not required for this application

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
