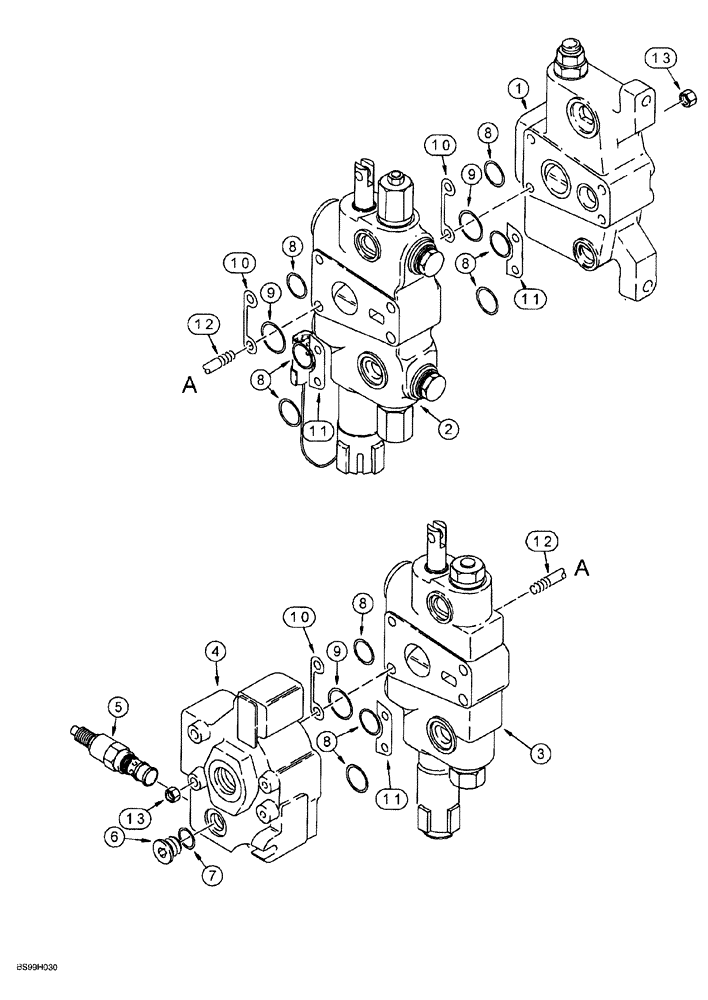

Запчасти Case 580SL (8-073A) - LOADER CONTROL VALVE, TWO SPOOL, WITH FEMALE CLEVIS TYPE SPOOL EYES (08) - HYDRAULICS

328496A1

DISTRIBUTOR

VALVE ASSEMBLY, control, loader, two spool, with male type spool eyes, Includes: Ref. 1-13, no longer available, order P/N 328496A1 valve, see Fig. 8-73A

1шт.

328496A2

VALVE

ASSEMBLY, control, loader, two spool, with female clevis type spool eyes, with pilot relief, Includes: Refs. 1-13

1шт.

1

121736A2

VALVE SECTION

ASSEMBLY, inlet, with pilot relief valve, 328496A1 valve, See Figure 8-76

1шт.

1

364148A1

HYD VALVE SECTION

ASSEMBLY, inlet, with pilot relief plug, 328496A2 valve, not shown, See Figure 8-76

1шт.

2

328443A1

VALVE SECTION

ASSEMBL, bucket, with magnetic detent and circuit relief valve, See Figure 8-79A

1шт.

3

328444A1

VALVE SECTION

ASSEMBLY, lift, with manual detent, See Figure 8-81A

1шт.

4

132004A2

HYD VALVE SECTION

ASSEMBLY, outlet, See Figure 8-82

1шт.

5

129842A2

VALVE, PRESSURE RELI

EF ASSEMBLY, main, components parts are not serviced separately, for service of external

1шт.

6

278548

PLUG,Hex, 7/16"-20 ORB

Outlet section diagnostic port, Incl Ref 7

1шт.

8

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small

9шт.

Part of seal kit 1346108C2

1шт.

9

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports

3шт.

Part of seal kit 1346108C2

1шт.

10

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve

3шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve

3шт.

12

G108870

STUD,246.2mm L

tie, 3/8 NC x 9-3/4 inch

4шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

1346108C2

SEAL KIT

seal, Includes: Refs. 8 and 9, plus additional O-rings not required for this application

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
