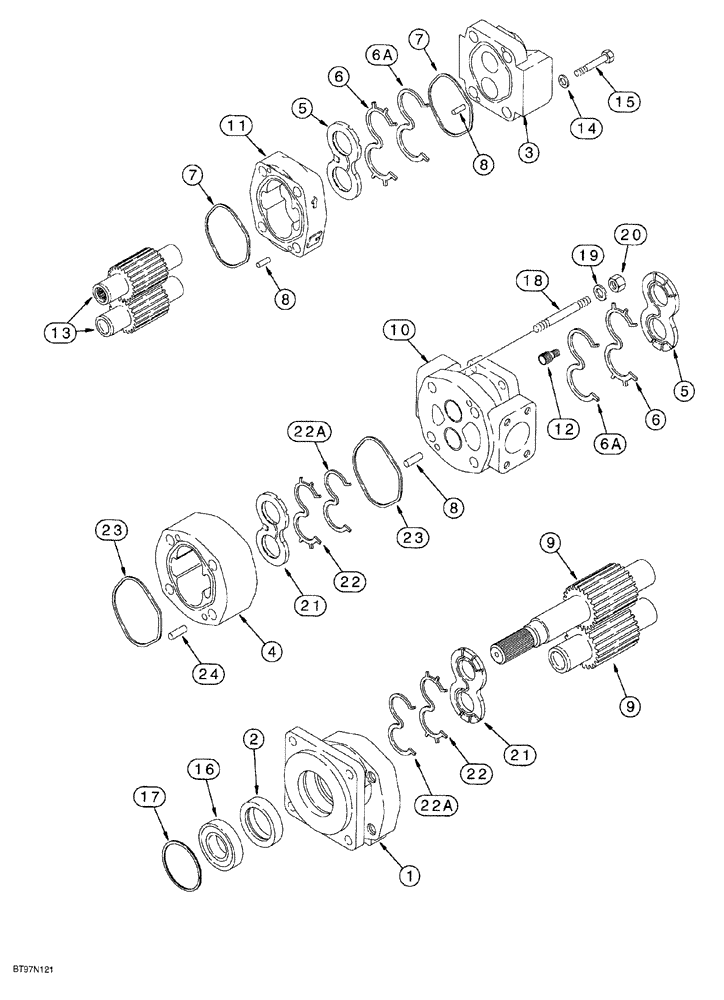

Запчасти Case 580SL (8-070) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

257954A1

PUMP, HYDRAULIC

ASSEMBLY, hydraulic equipment, 17 teeth shaft gear set, used with P/N 257948A1 flex on Fig. 8-2, Includes: Refs. 1-24; No Longer Available, Order 87433897 Complete Pump, 87437920 Coupling, 87429360 Adapter Plate

1шт.

See Service Bulletin NLB SB 002 2004 Before Installing

1шт.

87433897R

REMAN-HYD PUMP

580SL - SERIES-2 LOADER BACKHOE - Reman For New P/N 257954A1

1шт.

87433897C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER shaft end

1шт.

2

L32318

SEAL

shaft

1шт.

Part of kit 293924A1

1шт.

3

NSS

NOT SOLD SEPARAT

COVER closed end

1шт.

4

142733A1

HOUSING

gear, shaft end

1шт.

5

111594A1

LARGE PLATE

PLATE, LARGE thrust, closed end

2шт.

Part of kit 293924A1

1шт.

6

293926A1

SEAL

used with P/N 293925A1 backup

2шт.

Part of kit 293924A1

1шт.

6a

293925A1

SEAL

backup, used with P/N 293926A1

2шт.

Part of kit 293924A1

1шт.

7

111596A1

SEAL

square ring, 3-1/4 ID x 3/32 inch wide, housing, closed end

2шт.

Part of kit 293924A1

1шт.

8

111597A1

ELEC. TERMINAL PIN

dowel, 1/4 x 1/16 inch, closed end, gear housing

4шт.

9

NSS

NOT SOLD SEPARAT

SET gear, shaft end, 17 teeth, 1-1/8 inch diameter shaft spline

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING center, with ports

1шт.

11

142735A1

HOUSING

gear, closed end, pump

1шт.

12

111593A1

SHAFT

connecting

1шт.

13

NSS

NOT SOLD SEPARAT

SET gear, closed end

1шт.

14

111588A1

WASHER

flat, special, 17/32 x 15/16 x 3/16 inch

4шт.

15

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

4шт.

16

S88754

BALL BEARING

sealed

1шт.

17

S88756

SNAP RING,#283, 3.009", Int, Spiral

retaining, spring lock

1шт.

18

111583A1

STUD

4шт.

19

19-488

WASHER

flat

4шт.

20

429-1010

NUT,5/8"-11, G8

4шт.

21

111589A1

LARGE PLATE

PLATE, LARGE thrust, shaft end

2шт.

Part of kit 293924A1

1шт.

22

293927A1

SEAL

used with P/N 293928A1 backup

2шт.

Part of kit 293924A1

1шт.

22a

293928A1

SEAL

backup

2шт.

Part of kit 293924A1

1шт.

23

111592A1

SEAL,Square, 3.4mm Thk x 113.9mm ID

square ring, 4-31/64 ID x 1/8 inch wide, shaft end

2шт.

Part of kit 293924A1

1шт.

24

W16323

DOWEL

PIN, shaft end

4шт.

293924A1

SEAL KIT

KIT, Includes: Refs. 2, 5, 6, 6A, 7, 21, 22, 22A, and 23

1шт.
