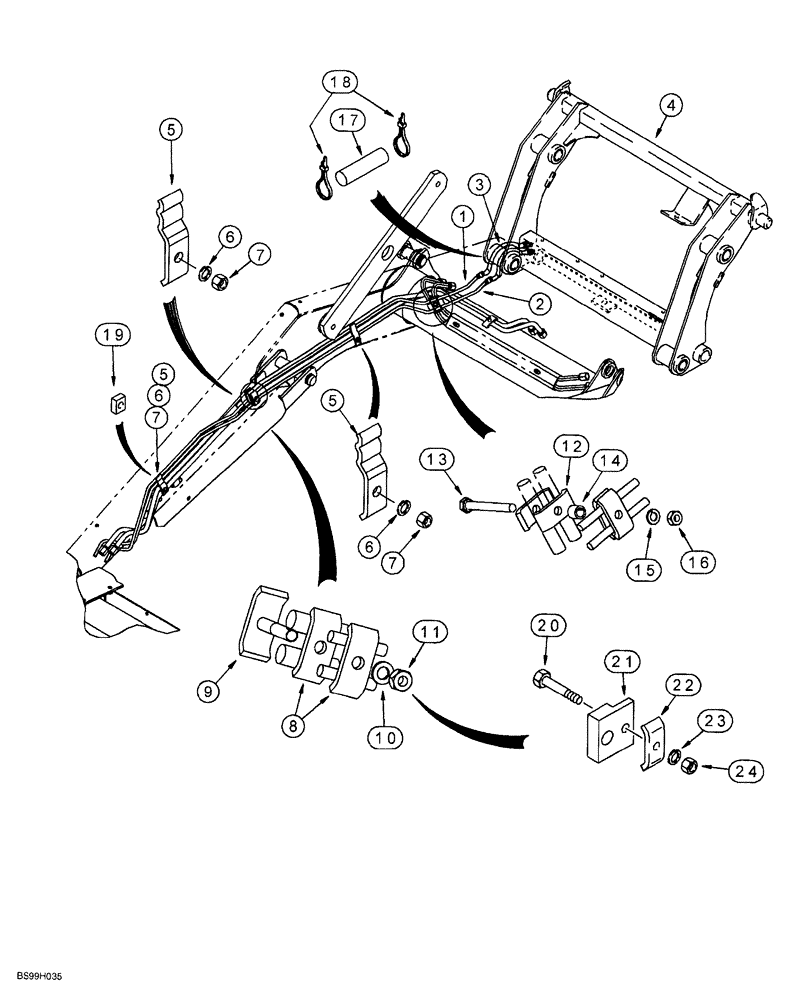

Запчасти Case 580SL (8-068) - LOADER HYDRAULIC TOOL QUICK COUPLER AT LOADER LIFT FRAME (08) - HYDRAULICS

1

308255A1

TUBE,9.5 mm OD, 1640, 552 mm Length

loader lift frame to tool quick coupler frame, Replaces: P/N 304572A1

1шт.

2

308254A1

TUBE,9.5 mm OD, 1651, 526 mm Length

loader lift frame to tool quick coupler frame, Replaces: P/N 304574A1

1шт.

3

300996A3

HYDRAULIC HOSE,1/4" ID x 772mm L

872 mm (34-11/32") long, at tool quick coupler frame, Replaces P/N 300996A2, 812 mm long hose

2шт.

4

REF

INSTRUCTION

COUPLER quick, tool, loader, hydraulic, for complete assembly See Figure 9-22, order from Machinery Price List, use standard loader bucket pins to mount coupler

1шт.

5

302820A1

CLAMP

extension

1-3шт.

6

892-11010

LOCK WASHER,M10

1-3шт.

8

D138055

CLAMP

tube, if used

2шт.

9

302821A1

CLAMP

stud, if used

1шт.

10

892-11010

LOCK WASHER,M10

If used

1шт.

12

D138055

CLAMP

tube

4шт.

13

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

1шт.

14

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

clamp, 381 mm (15 inch) long

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

17

307277A1

PROTECTIVE SLEEVE,36.87mm ID x 850mm L

hose guard

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

19

303804A1

BLOCK

spacer, if used

1шт.

Replaces loader auxiliary hydraulic tubes on models without loader auxiliary hydraulics, clam bucket, if used

1шт.

20

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

Replaces loader auxiliary hydraulic tubes on models without loader auxiliary hydraulics, clam bucket, if used

1шт.

21

303806A1

BLOCK

spacer

1шт.

Replaces loader auxiliary hydraulic tubes on models without loader auxiliary hydraulics, clam bucket, if used

1шт.

22

D138055

CLAMP

tube

1шт.

Replaces loader auxiliary hydraulic tubes on models without loader auxiliary hydraulics, clam bucket, if used

1шт.

23

892-11010

LOCK WASHER,M10

1шт.

Replaces loader auxiliary hydraulic tubes on models without loader auxiliary hydraulics, clam bucket, if used

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

1-3шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

If Used

1шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

Replaces loader auxiliary hydraulic tubes on models without loader auxiliary hydraulics, clam bucket, if used

1шт.
