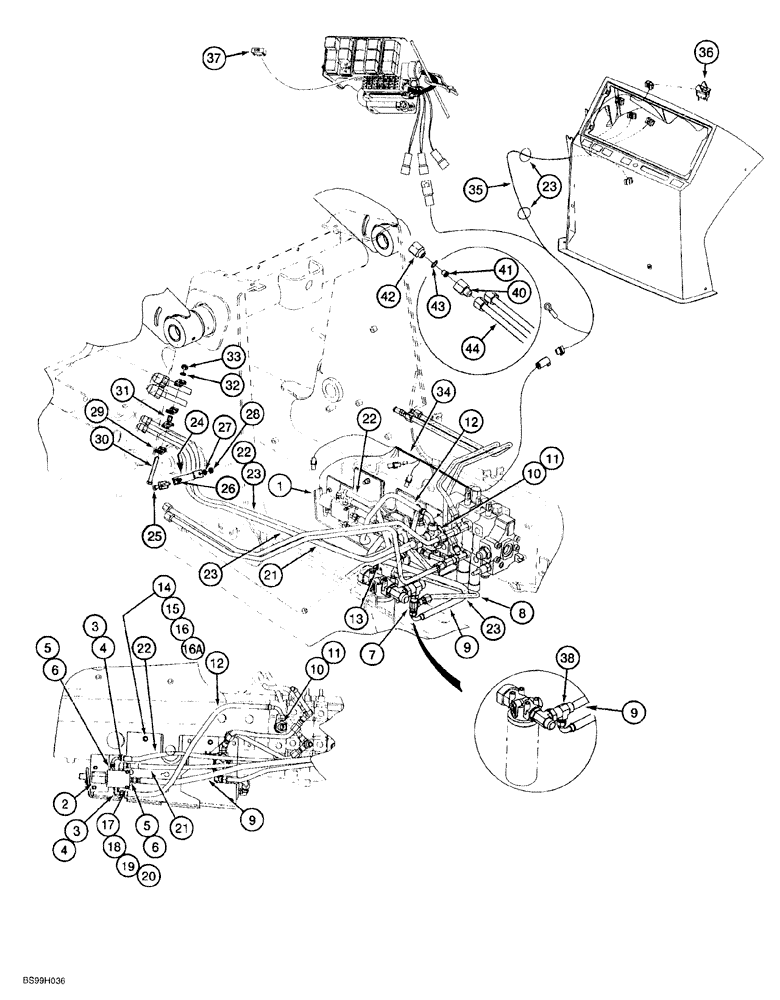

Запчасти Case 580SL (8-064) - LOADER HYDRAULIC TOOL QUICK COUPLER (08) - HYDRAULICS

1

259777A3

PLATE ASSY.

mounting, solenoid valve

1шт.

2

277320A1

VALVE

ASSEMBLY solenoid, four way, two position, quick coupler, component parts not serviced separately

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 4

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 6

2шт.

7

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

swivel, 7/8-14 inch flare branch x flare x adj. straight thread, used only on models with both

1шт.

8

293037A1

TUBE,15.88 mm OD, 485, 374 mm Length

left hand ride control solenoid valve to tee at filter, Replaces: Ref. 13 on Figure 8-60 on models with both ride control and hydraulic tool quick coupler

1шт.

9

292528A1

HOSE ASSY.

1220 mm (48-1/32 inch) long, return, filter to quick coupler solenoid valve

1шт.

10

218-5577

TEE,37 Degree, 1 1/16"-12, 1 1/16"-12 O-Ring Run, 7/8"-14

3/4-16 flare branch x 1-5/16-12 flare x adj. O-ring, at inlet section upper port of loader cont, Includes: Ref. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

276962A1

HOSE ASSY.

810 mm (31-29/32 inch) long, quick coupler solenoid valve lower port to tee at inlet section

1шт.

13

370977A1

TUBE

tee at loader valve inlet upper port to large pump section, Replaces: P/N 292436A1

1шт.

14

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

If used

2шт.

14

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

carriage, 10 - 1.5 x 50 mm, if used

2шт.

15

892-11010

LOCK WASHER,M10

2шт.

16a

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

11 x 40 x 10 mm thick

2шт.

17

711-6050

CARRIAGE BOLT,Sq Nk, M6 x 1 x 50mm, Cl 8.8

carriage, 6 - 1.0 x 50 mm

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

892-11006

LOCK WASHER,M6

2шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

21

301008A2

HOSE

2677 mm (105-13/32 inch) long, includes hose guard, (2) banded clamps and white tie strap, quick coupler solenoid valve to loader lift frame

1шт.

22

301009A2

HOSE

2677 mm (105-13/32 inch) long, includes hose guard and (2) banded clamps, quick coupler sole

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

14шт.

24

D138055

CLAMP

tube

1шт.

25

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

Replaces: P/N 828-10060, 60 mm long bolt used on some models

1шт.

26

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

clamp

1шт.

27

892-11010

LOCK WASHER,M10

Used with 828-10060 bolt, No longer required

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

Replaces 829-1410 nut which was used with P/N's 828-10060 bolt and 892-11010 lock washer

1шт.

29

D138055

CLAMP

tube

4шт.

30

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

Replaces P/N 828-10090, 90 mm long bolt used on some models

1шт.

31

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

clamp, 381 mm (15 inch) long

1шт.

32

892-11010

LOCK WASHER,M10

1шт.

34

302803A2

HARNESS

chassis options, connects to side console options harness, replaces P/N 302803A1 harness

1шт.

35

296508A2

HARNESS

side console options, connects to chassis options harness and fuse block

1шт.

36

275488A2

SWITCH

rocker, yellow rocker and amber lens, quick coupler

1шт.

37

121413A1

FUSE,15A, Mini, Blue

1шт.

38

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

TEE, 7/8-14 flare branch x 1-5/16-12 inch flare x swivel, models without ride control

1шт.

40

304424A1

HYD CONNECTOR,0.875" - 14 JIC x 0.875" - 14 ORB

Straight

1шт.

41

304890A1

RESTRICTOR

check

1шт.

Install restrictor on inner most dump cylinder tube, connects to closed end of cylinder.

1шт.

42

309674A1

HYD CONNECTOR,0.875" - 14 ORB x 0.875" - 14 ORFS

ADAPTER straight, 7/8-14 inch male x female

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

44

309673A1

TUBE,15.88 mm OD, 1474, 537 mm Length

loader arm , bucket port A to closed end of right hand bucket cylinder

1шт.

33

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
