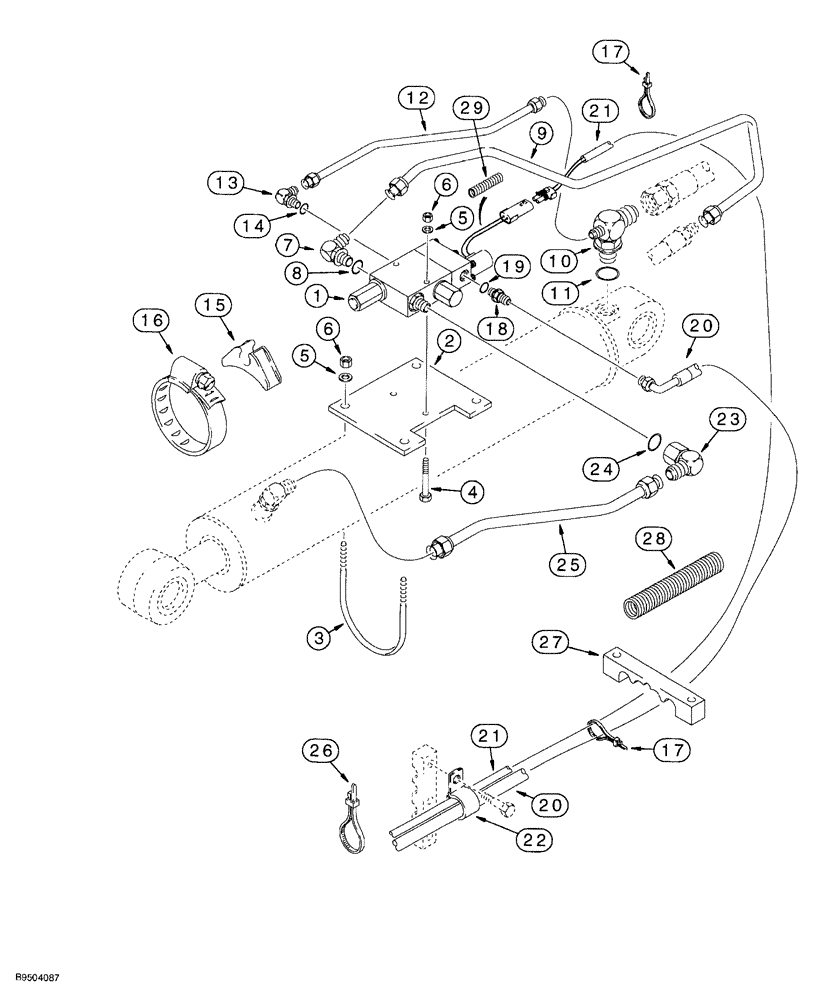

Запчасти Case 580SL (8-058) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT AT BOOM CYLINDER (08) - HYDRAULICS

189111A1

KIT

backhoe boom lock, continued from previous Fig., order components, Includes: Refs. 1-29

1шт.

1

189957A1

VALVE

ASSEMBLY, solenoid, backhoe boom lock, includes (2) P/N 321-6046 warning decals, parts list Fig. 8-120

1шт.

2

D150054

PLATE

Valve mounting

1шт.

3

D150053

BOLT

U- 3/8 inch

2шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

6шт.

6

231-1446

NUT,3/8" - 16, Gr 5

6шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adj., O-Ring boss, Includes: Ref. 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

192025A1

TUBE,19.05 mm OD, 680, 196 mm Length

Valve port, Attaches to Ref 34 hose on Fig. 8-24

1шт.

10

187677A1

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 7/16" - 20 JIC

reducer, boom cylinder closed end, attaches to Ref. 23 hose on Fig. 8-24, Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

189709A1

TUBE,6.35 mm OD, 450, 60 mm Length

Pilot Port

1шт.

13

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

90 degree, 7/16-20 flare x 9/16-18 inch adj. O-ring boss, Includes: Ref. 14

1шт.

15

D142787

SPACER

INSULATOR rubber

1шт.

16

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

adj., 5-3/4 - 6-5/8 inch dia.

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

7шт.

18

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 7/16-20 flare x 3/4-16 inch O-ring boss, Includes: Ref. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

189103A1

HYDRAULIC HOSE

3700 mm (145-11/16") long, Return, Attaches to elbow at backhoe valve, See Ref 2 on Fig. 8-56

1шт.

21

189263A1

WIRE HARNESS

Boom lock valve to control tower harness

1шт.

22

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type, Return hose

1шт.

23

218-5382

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

ELBOW, 90 degree, 1-1/16-12 flare x 1-5/16-12 inch swivel, Includes: Ref. 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

25

187612A1

TUBE,19.05 mm OD, 241, 44 mm Length

Boom lock valve to boom cylinder rod end, See Fig. 8-24, Ref 29 for elbow

1шт.

26

D147773

CLAMP

STRAP tie

1шт.

27

221330A1

CLAMP

hose and harness

1шт.

28

220276A1

SLEEVE

hose guard

1шт.

29

D121385

PLASTIC-RUBBER TUBE

GUARD harness protection

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
