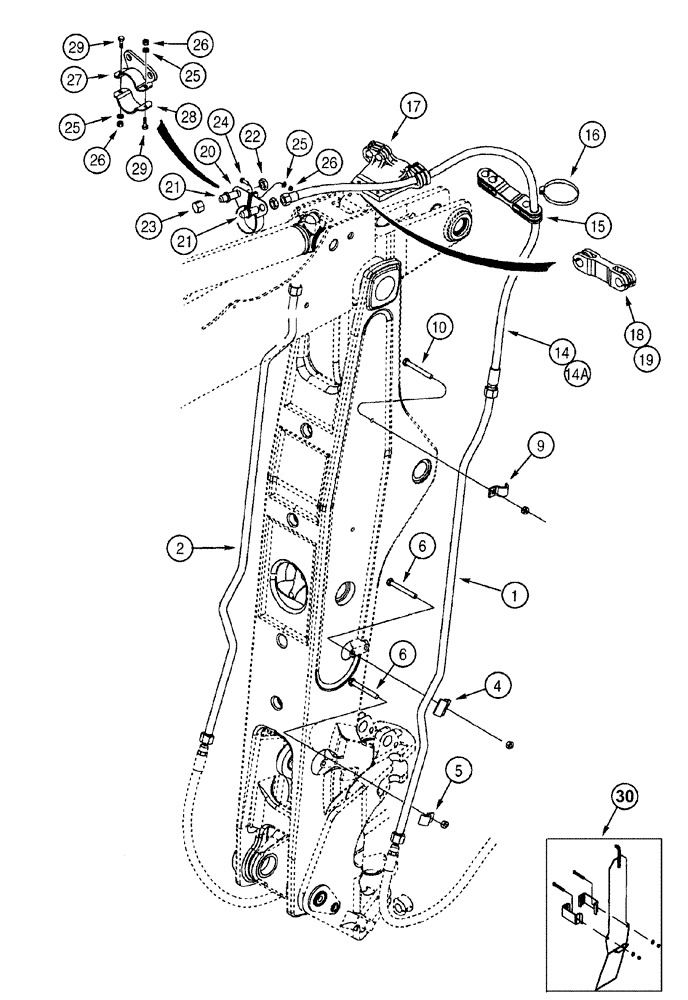

Запчасти Case 580SL (8-054) - BACKHOE AUXILIARY HYDRAULICS AT BOOM AND DIPPER (08) - HYDRAULICS

1

252885A1

HYD TUBE

on boom

1шт.

2

252883A1

TUBE,25.4 mm OD, 1687, 221 mm Length

on boom

1шт.

4

253038A1

BRACKET

CLAMP tube, uses existing nut

2шт.

5

255051A1

CLAMP,26mm ID, 13mm Bolt Hole, J Type

tube, uses existing nut

2шт.

6

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

4шт.

9

242459A1

SHIN

CLAMP tube, uses existing nut

2шт.

10

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

14

243679A2

HYDRAULIC HOSE,19.05mm ID x 2665mm L

2665 mm (104-15/16") long, Incl hose guard and (2) banded clamps, Models with extendable dipper, Replaces P/N 243679A1 2625 mm long hose

2шт.

14a

256210A2

HYDRAULIC HOSE,19.05mm ID x 1285mm L

1285 mm (50-19/32") long, Incl hose guard and (2) banded clamps, Models without extendable dipper, Replaces P/N 256210A1 1325 mm long hose

2шт.

15

246158A1

CLAMP,27mm ID

SUPPORT hose, models with extendable dipper

1шт.

16

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

adj., 2-3/4 - 3-5/8 inch dia., models with extendable dipper

4шт.

17

246151A1

SUPPORT

hose, models with extendable dipper

1шт.

18

103670A1

CLAMP,27mm ID

rubber

1шт.

19

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adj., 1-1/4 - 2-1/8 inch dia.

2шт.

20

243291A1

SPECIAL CLAMP

quick coupler, no longer available, order P/N's 314607A1 clamp and 314608A1 strap

1шт.

21

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER straight, 1-1/16-12 inch flare x bulkhead flare

2шт.

22

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

23

218-335

CAP,37 Degree, 1 1/16"-12

Hex

2шт.

24

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

If used

1шт.

25

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1-2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

1-2шт.

27

314607A1

SPECIAL CLAMP

quick coupler

1шт.

28

314608A1

SPECIAL CLAMP

STRAP

1шт.

29

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

30

370914A1

KIT

Boom Guard

1шт.
