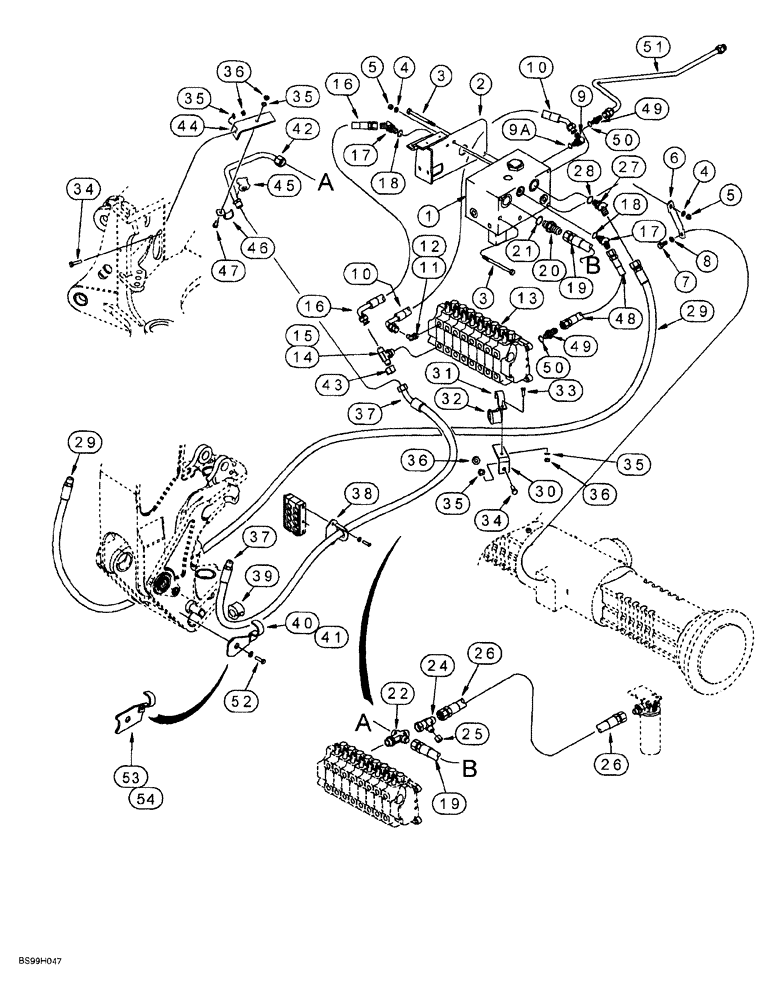

Запчасти Case 580SL (8-050) - BACKHOE AUXILIARY HYDRAULICS, AUXILIARY AND BACKHOE CONTROL VALVES TO SWING TOWER (08) - HYDRAULICS

1

298772A1

VALVE

ASSEMBLY, auxiliary, backhoe, parts list Fig.8-119C

1шт.

2

300580A1

BRACKET

mounting

1шт.

3

814-10180

BOLT,Hex, M10 x 1.5 x 180mm, Cl 8.8

hex, 10 - 1.5 x 180 mm

2шт.

6

302641A1

STRUT

BRACKET support

1шт.

7

614-18035

BOLT,Hex, M18 x 2.5 x 35mm, Cl 8.8, Full Thd

hex, full threads, 18 - 2.0 x 35 mm

1шт.

8

892-11018

LOCK WASHER,M18

lock, 18 mm

1шт.

9

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 9A

1шт.

9a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

300905A1

HOSE

610 mm (24 inch) long, auxiliary valve to upper port of auxiliary section of backhoe control

1шт.

11

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, 7 or 8 spool with auxiliary hydraulics, for correct assembly and components, see Fig. 8-90, 8-91A, 8-94 or 8-95A

1шт.

14

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

TEE, 1-1/1 6-1 2 inch adj. O-ring branch x flare x flare, Includes: Ref. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

300906A1

HOSE

460 mm (18-1/8 inch) long

1шт.

17

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

300907A1

HOSE

720 mm (28-3/8 inch) long, return

1шт.

20

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 21

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

22

302097A1

FITTING

CROSS special, Includes: Ref. 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Not shown

1шт.

24

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

TEE, 7/8-1 4 flare branch x 1-5/16-12 inch flare x swivel

1шт.

25

218-756

CAP,37 Degree, 7/8"-14

If used, not required on models with hand held auxiliary hydraulics

1шт.

26

293269A1

HOSE ASSY.

755 mm (29-3/4 inch) long, main return

1шт.

27

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW, 45 degree, 1-1/16-12 inch flare x adj. O-ring boss, Includes: Ref. 28

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

302472A1

HOSE,19.05mm ID x 2603mm L

2603 mm (102-1/2 inch) long, includes hose guard and (2) banded clamps, pressure port

1шт.

30

256412A1

BRACKET

mounting

1шт.

31

144479A1

CLAMP

isolation

1шт.

32

144477A1

ISOLATOR

Rubber

1шт.

33

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

34

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

35

892-11010

LOCK WASHER,M10

4шт.

37

253740A1

HOSE,19.05mm ID x 1760mm L

1760 mm (69-5/16 inch) long, includes hose guard and (2) banded clamps, lower port of backho

1шт.

38

252737A1

BRACKET

CLAMP auxiliary hose, at pivot block

2шт.

39

144477A1

ISOLATOR

Rubber, at swing tower

2шт.

40

249775A1

BRACKET

CLAMP hose, left hand, at swing tower, if used

1шт.

41

249773A1

BRACKET

CLAMP hose, right hand, at swing tower, if used

1шт.

42

300939A1

TUBE

low pressure return

1шт.

43

218-335

CAP,37 Degree, 1 1/16"-12

Hex

1шт.

44

282842A1

BRACKET

mounting, tube

1шт.

45

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube

1шт.

46

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

P-type, 3/4 inch ID

1шт.

47

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

48

300952A1

HOSE

335 mm (13-3/16 inch) long

1шт.

49

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 50

2шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

51

300884A1

TUBE,15.88 mm OD, 927, 295 mm Length

small pump supply

1шт.

52

604-20045

BOLT,Hex, M20 x 45mm, Cl 8.8

hex, self locking, 20 - 2.5 x 45 mm

2шт.

53

329799A1

SUPPORT

CLAMP hose, left hand, at swing tower, if used

1шт.

54

329797A1

SUPPORT

CLAMP hose, right hand, at swing tower, if used

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

36

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
